Product Overview
Introducing the Next Level Racing® F-GT Elite 160 Wheel Plate Edition, the ultimate simulator cockpit designed for top-tier racers. Indeed, this model stands out for its commitment to quality and unparalleled rigidity for racers who seek the best in racing equipment.
Furthermore, the F-GT Elite 160 Wheel Plate Edition is a product of thorough research and user feedback. As a result, the F-GT Elite 160 excels in providing a flex-free, high-quality aluminum extrusion simulation cockpit experience. The F-GT Elite 160 features premium anodized high-grade aluminum, powder-coated carbon steel components, and custom Next Level Racing® end caps and T-slot nuts, hence, emphasizing quality.
Additionally, racers will appreciate the F-GT Elite 160’s vast adjustability and customization options. It is also seamlessly compatible with the Next Level Racing® Motion Ecosystem*.
Lastly, combining top-notch materials, extensive adjustability, and compatibility, the F-GT Elite 160 Wheel Plate Edition delivers an unmatched premium immersive simulation experience.
* To clarify, the F-GT Elite 160 is designed to integrate with the Next Level Racing® Motion Platform V3 and Motion Plus Platform. Therefore, for those seeking to attach the Traction Plus Platform, the Next Level Racing® Elite Motion Adaptor Upgrade Kit is required.
Leading Features
- Unquestionably, there should be no compromise when it comes to premium simulation cockpits, as the F-GT Elite 160 Wheel Plate Edition stands as a testament to this for the Elite user. Significantly, the F-GT Elite 160 Wheel Plate Edition emerges as the ideal choice for those who demand nothing but the best. Also, characterized by unparalleled rigidity, innovation, quality, and extensive customization. This product encapsulates the complete package for ergonomic Formula, GT, hybrid, truck, and tank driving positions. Consequently, users can experience the best of sim racing setups with the F-GT Elite 160 Wheel Plate Edition.
- The innovative Next Level Racing® Seat Sliding System has been designed and engineered to eliminate the issue of flex found in conventional seat sliders used in simulation. Therefore, the custom Next Level Racing® ratchets are used to easily slide your seat back and forth to find the perfect position for a flex-free racing experience.
- The Next Level Racing® Seat Brackets are built from 5mm carbon steel to provide the rigidity required. The new design provides more adjustability than ever before to support multiple seating positions with 98 adjustment options. As a result, the Next Level Racing® ES1, ERS1, and ERS2 Seats are the advised seats to use with the Elite range of cockpits as the seat has been designed for the most demanding users.
- The F-GT Elite 160 Wheel Plate Edition distinguishes itself in the realm of aluminum extrusion cockpits, where quality and strength are often seen as mutually exclusive. Specifically, this exceptional product showcases flex-free aluminum extrusion and a custom Next Level Racing® 160mm x 40mm profile, thereby providing unparalleled strength at the cockpit’s base. Moreover, with the F-GT Elite 160, users can confidently engage in a true multi-position cockpit experience for Formula, Hybrid, and GT driving, all without compromising on design or structural integrity. Additionally, the F-GT Elite 160 features a premium, thick-walled profile, and a custom base, contributing to its substantial total weight of 60kg. This custom shape not only adds extra strength but also enhances the aesthetics. Furthermore, the meticulously designed multi-folded wheel and pedal plates, along with the use of thick carbon steel, eliminate deflection and flex, resulting in a stronger and more rigid platform for attaching high-performance electronics. For instance, the robustness of the F-GT Elite 160 is evident in the FEA (Finite Element Analysis) Tests. The innovative plate designs of the F-GT Elite 160 against the flat steel or aluminum designs commonly found in conventional cockpits. To illustrate: The Wheel Deck strength is equivalent to 17.67mm steel or 23mm aluminum. The Pedal Deck strength matches that of 18.44mm steel or 26.5mm aluminum.
- Not only does the F-GT Elite 160 Wheel Plate Edition arrive pre-drilled for major steering wheel and pedal manufacturers but features unique laser-engraved guides and pre-machined slots for the perfect driving experience. The printed guides assist the users in achieving a perfect ergonomic setup in Formula, Hybrid, GT, Truck, and Tank driving positions.
- The Next Level Racing® F-GT Elite 160 Wheel Plate Edition is the ultimate cockpit for bottom-mounted wheelbases, pedal sets, shifters, handbrakes, bass shakers, and more due to its universal compatibility. The F-GT Elite 160 Wheel Plate Edition upgrades setups with Next Level Racing® Motion product compatibility*. *To clarify, the Next Level Racing® F-GT Elite 160 is compatible with the Next Level Racing® Motion Platform V3, Motion Plus Platform. Furthermore, users have the option to attach two Motion Plus Platforms. Additionally, for those looking to attach the Traction Plus Platform to the cockpit, the Next Level Racing® Elite Motion Adaptor Upgrade Kit is required.
- The bespoke sliding pedal plates and wheel plates are specifically designed to allow easy and quick adjustments for pedal distance. Additionally, equipped with two slotted 5mm carbon steel pedal plates featuring double precision folds, this setup guarantees supreme rigidity and straightforward compatibility. Moreover, the pedal tray and wheel plate area, complemented by laser-etched markings on the aluminium profile, aid in making precise adjustments. In conjunction with custom Next Level Racing® Shoulder Bolts, these features offer a high degree of angle, height, and distance adjustments, to achieve the perfect racing position.
- The F-GT Elite 160 cockpit stands out with its extensive array of custom-engineered components, ensuring it’s the highest quality and best-performing product available. Instead of using standard industrial parts, we’re leading the way in designing aluminium profile cockpits. Therefore, traditional square industrial brackets are no longer necessary, as our extrusion pieces are pre-machined for quicker, easier, and more robust connections. Moreover, the attention to detail is evident throughout the cockpit. Notable features include the black electroplated premium spring ball T-slot nuts, and custom Next Level Racing® Shoulder Bolts and end caps, which all contribute to the cockpit’s overall excellence. In conclusion, the combination of a premium finish, bespoke components, and leading-edge design culminates in a visually stunning masterpiece.
- By intentionally designing custom components and employing advanced manufacturing techniques for precision-machined holes in the aluminium profile, we facilitate easier assembly and ensure a more rigid connection when the profile bolts together. Consequently, the improved design effectively eliminates the hassles of aligning fiddly corner brackets, making them a thing of the past. Combining the ease of assembly with the laser-etched line markings on the profile helps you to get racing quicker. Each piece is individually placed in our custom foam packaging to ensure the safety of the product while in transport. This provides a seamless user experience from the time the packaging is opened.
Specifications
- Material: 40/40, 40/80, 40/120, 40/160 Aluminum Extrusion
- Finish: High Quality Powder Coat / Anodised Aluminum / Laser Engraved Logos and Alignment Lines
- Boxed Dimensions: 126.5cm (L) x 31.5cm (W) x 44cm (H) / 49.8inches(L) x 12.4inches(W) x 17.3inches(H)
- Product Dimensions: 136cm (L) x 84.2cm (W) x 94.2cm (H) / 53.5inches(L) x 33inches(W) x 37.1inches(H)
- Boxed Weight: GW: 63.6 kg / 140.2 lbs
- Product Weight / NW: 57.1 kg / 125.9 lbs
- Part Number: NLR-E025

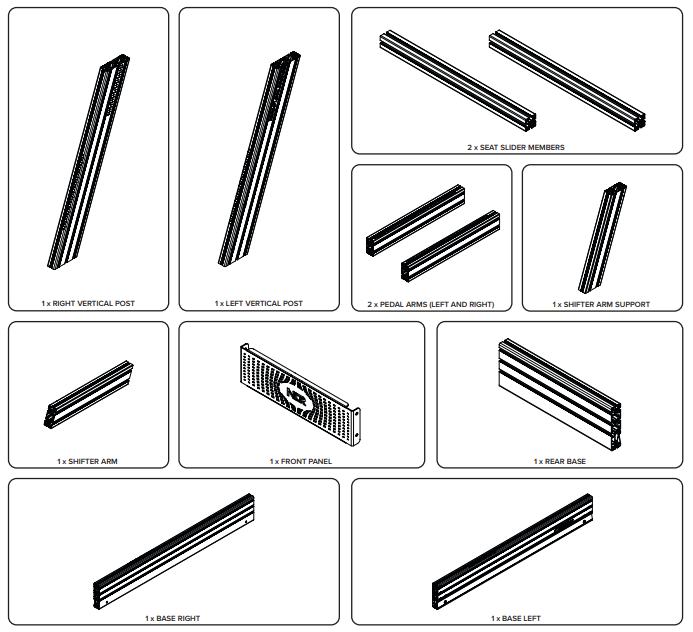

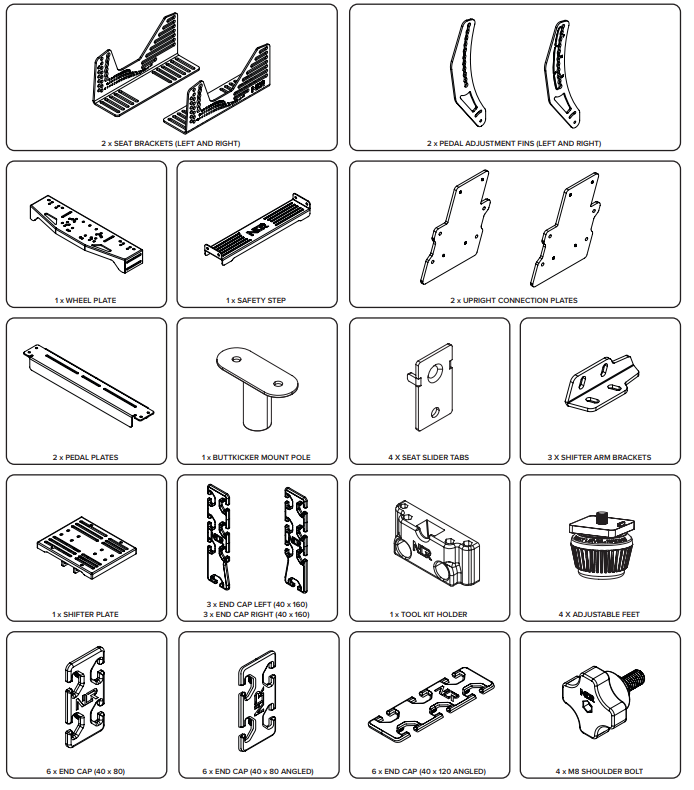

What’s In the Box
- Premium Black Anodised Finish Aluminum Extrusion
- Wheel Plate
- Motion Platform V3 Mounting Brackets
- Next Level Racing® Height Adjustable shock absorbing feet
- Next Level Racing® Custom Cable clips
- Next Level Racing® Seat Brackets
- Shifter and Handbrake Plate
- Next Level Racing® Safety Footstep
- Next Level Racing® Toolkit and Spirit Level

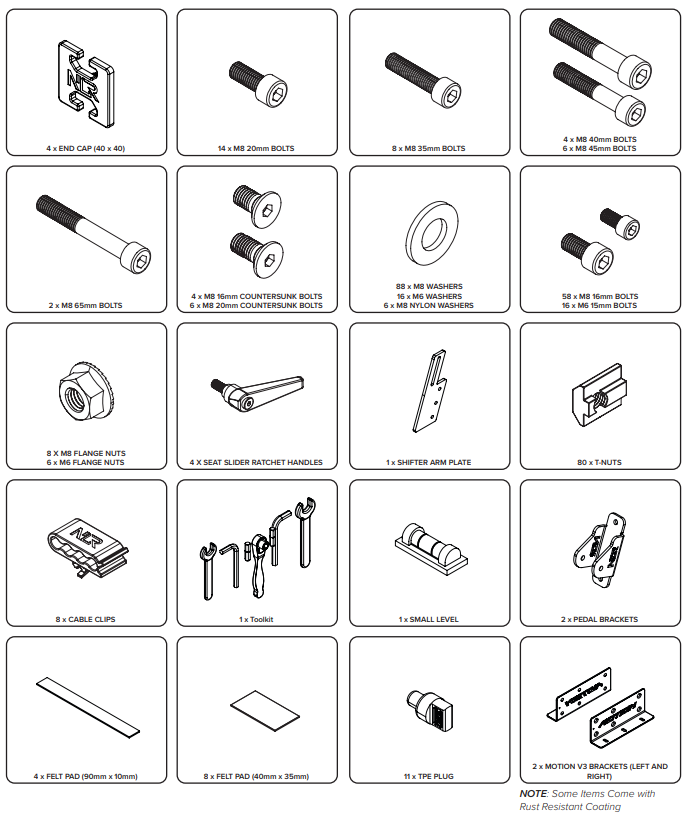

- Extra hardware for peripherals and Assembly Instructions
- ButtKicker® Mounting Pole
- Instruction Manual Booklet
Compatible Products
- Next Level Racing® ES1 Seat
- Next Level Racing® ERS1 Seat
- Next Level Racing® ERS2 Seat
- Next Level Racing® ERS3 Seats
- Next Level Racing® ERS4 Seats
- Next Level Racing® ERS5 Seats
- Next Level Racing® PRS1 Seat
- Next Level Racing® PRS2 Seat
- Next Level Racing® VR Headset Holder
- Next Level Racing® Lockable Castor Wheels
- Next Level Racing® Elite Keyboard and Mouse Tray Black Edition
- Next Level Racing® Tablet and Button Box Holder
- Next Level Racing® Direct Mount Monitor Stand Black Edition
- Next Level Racing® Elite Direct Overhead Attachment
- Next Level Racing® Motion Adaptor Upgrade Kit
- Next Level Racing® F-GT Elite 160 Side and Front Mount Brackets
- Next Level Racing Elite Free Standing Single Monitor Stand - Black Edition
- Next Level Racing Elite Free Standing Triple Monitor Stand - Black Edition
- Next Level Racing Elite Free Standing Quad Monitor Stand - Black Edition
- Next Level Racing® Motion Platform V3
- Next Level Racing® Motion Plus Platform
- Next Level Racing® Traction Plus Platform (**Elite Motion Adaptor Upgrade Kit Required)
Compatible Electronics
Wheelbases:
- Fanatec DD1/DD2 Podium
- Fanatec CSL DD Range
- Simagic Alpha / Mini / M10
- Simagic Alpha Evo / Evo Sport / Evo Pro
- Moza R5 / R9 / R12 / R16 / R21
- Accuforce V1+V2
- Thrusmaster T300 / T300 RS / T500 RS / TS-PC / TS-XW / T-GT II
- Logitech G29 / G923 / G Pro
Shifters and Handbrakes:
- Aiologs Sequential Shifter
- BJ Sim Handbrake 2.0
- BJ Sequential Shifter 3.0
- DSD Handbrake Type 3
- DSD Pro Sequential Shifter
- Fanatec Clubsport Shifter
- Fanatec Clubsport Handbrake
- Heusinkveld Sim Shifter
- Heusinkveld Handbrake
- Logitech Driving Force Shifter
- Oktane Handbrake
- PSL Sequential Shifter.V2
- Thrustmaster TSS Shifter
- Thrustmaster TSS Handbrake
- Thrustmaster TH8A Shifter
- Simworx Shifter

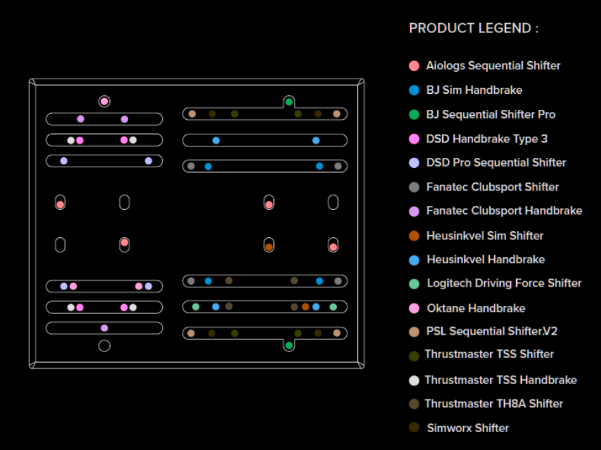

Mounting Diagram:
Pedals:
- Fanatec CSL Elite / CSL V3 Pedals & Inverted
- Fanatec ClubSport V3 Pedals
- MOZA CRP2 Pedals (may require extra M8 nuts for mounting)
- Heusinkveld Sprint Pedals (requires Sprint Pedal Baseplate)
- Heusinkveld Ultimate Pedals (requires Ultimate Pedal Baseplate)
- BJ Pedals (With Base Plate)
- Logitech G25 / G27 / G29 / Pro Pedals
FAQs
Q: What wheel mounting type is this edition ideal for?
The Wheel Plate Edition is compatible with a wide range of wheelbases, from entry-level to high-end. It is the strongest wheel plate in the Next Level Racing® range, designed to handle the highest-level of direct drive wheelbases that require bottom mounting.
Q: What driving positions does this cockpit support?
It offers multiple driving positions, including Formula, GT, hybrid, truck, and tank, with quick adjustments between positions for versatility.
Q: Is the cockpit compatible with motion platforms?
Yes, it is compatible with Next Level Racing® Motion Platform V3 and Motion Plus Platform out of the box, allowing for an enhanced simulation experience. To mount the Traction Plus the Elite Motion Adaptor Upgrade Kit is required.
Q: What materials are used in the construction of the cockpit?
The cockpit features a premium anodized black aluminum finish with high-quality powder-coated carbon steel components, providing both strength and durability.
Instruction Guides and Videos
F-GT Elite 160 Wheelplate Edition Instruction Manual (PDF)
F-GT Elite 160 Wheelplate Edition Instruction Assembly Video
