Product Overview
Developed in partnership with Ferrari, the Next Level Racing® F-GT Elite 160 Scuderia Ferrari Edition represents the epitome of the Scuderia Ferrari racing simulator cockpit. Proudly displaying the esteemed Scuderia Ferrari Racing Shield, this edition not only honours the name but is also crafted for the elite. Reflecting this collaboration, the F-GT Elite 160 Scuderia Ferrari Edition caters to racers who demand the utmost quality and uncompromised rigidity for an unparalleled Scuderia Ferrari sim racing experience.
Moreover, the Next Level Racing® F-GT Elite 160 Scuderia Ferrari Edition encapsulates the essence of the Scuderia Ferrari brand, offering an unrivalled experience in flex-free, high-quality aluminum extrusion simulation cockpits. Emphasizing excellence, the F-GT Elite 160 Scuderia Ferrari Edition sets a new standard for quality and rigidity with its premium anodized high-grade aluminum extrusion and powder-coated carbon steel components.
In the pursuit of perfection, the development and construction of this cockpit spared no detail, providing near-infinite adjustability and customization options. As a result, even the most exacting sim racers will find their perfect fit in the F-GT Elite 160 Scuderia Ferrari Edition cockpit. Furthermore, this cockpit is fully compatible with the Next Level Racing® Motion Ecosystem, combining industry-leading materials with fine-tuning adjustability and compatibility. Ultimately, the F-GT Elite 160 Scuderia Ferrari Edition delivers the most premium and immersive simulation experience available on the market.
*To clarify, the F-GT Elite 160 is designed to integrate with the Next Level Racing® Motion Platform V3 and Motion Plus Platform. Therefore, for those seeking to attach the Traction Plus Platform, the Next Level Racing® Elite Motion Adaptor Upgrade Kit is required.
Leading Features
- Unquestionably, there should be no compromise when it comes to premium simulation cockpits, as the F-GT Elite 160 Scuderia Ferrari Edition stands as a testament to this for the Elite user. Also, characterized by unparalleled rigidity, innovation, quality, and extensive customization. This product encapsulates the complete package for ergonomic Formula, GT, hybrid, truck, and tank driving positions. Consequently, users can experience the best of sim racing setups with the F-GT Elite 160 Scuderia Ferrari Edition.
- Next Level Racing® is proud to announce our latest collaboration with Ferrari, introducing the F-GT Elite 160 Scuderia Ferrari Edition. Drawing inspiration from Scuderia Ferrari’s rich motorsport history, this cockpit features replicated carbon fiber prints for a stunning aesthetic finish. Therefore, the Scuderia Ferrari Racing Shield on the frame and custom front grill complete the cockpit’s overall design. The Ferrari red accent on the cockpit is the perfect finishing touch.
- When combined with Next Level Racing® ES1 Scuderia Ferrari Edition Seat, the F-GT Elite 160 Scuderia Ferrari Edition cockpit provides a fully immersive racing experience. Finally, we have ensured a complete brand experience for Ferrari enthusiasts who enjoy simulation. Get ready to experience the thrill of Scuderia Ferrari racing from the comfort of your own home.
- Additionally, the innovative Next Level Racing® Seat Sliding System has been designed to eliminate the issue of flex found in conventional seat sliders. Therefore, the custom Next Level Racing® ratchets are used to easily slide your seat back and forth to find the perfect position for a flex-free racing experience.
- The Next Level Racing® Seat Brackets are built from 5mm carbon steel to provide the rigidity required. The new design provides more adjustability than ever before to support multiple seating positions with 98 adjustment options; allowing compatibility with all the Next Level Racing stand-alone seats.
- This exceptional product showcases flex-free aluminum extrusion and a custom Next Level Racing® 160mm x 40mm profile, thereby providing unparalleled strength at the cockpit’s base. Moreover, with the F-GT Elite 160, users can confidently engage in a true multi-position cockpit experience for Formula, Hybrid, and GT driving, all without compromising on design or structural integrity. Additionally, the F-GT Elite 160 features a premium, thick-walled profile, and a custom base, contributing to its substantial total weight of 60kg. This custom shape not only adds extra strength but also enhances the aesthetics.
- The bespoke sliding pedal plates and wheel plates are specifically designed to allow easy and quick adjustments for pedal distance. Additionally, equipped with two slotted 5mm carbon steel pedal plates featuring double precision folds, this setup guarantees supreme rigidity and compatibility. Moreover, the pedal tray and wheel plate area, complemented by laser-etched markings on the aluminum profile, aid in making precise adjustments.
- Not only does the F-GT Elite 160 Scuderia Ferrari Edition arrive pre-drilled for major steering wheel and pedal manufacturers but features unique laser-engraved guides and pre-machined slots for the perfect driving experience. The printed guides assist the users in achieving a perfect ergonomic setup in Formula, Hybrid, GT, Truck, and Tank driving positions.
- In addition, the F-GT Elite 160 cockpit stands out with its extensive array of custom-engineered components, ensuring it’s the highest quality and best-performing product available. Instead of using standard industrial parts, we’re leading the way in designing aluminum profile cockpits. Therefore, traditional square industrial brackets are no longer necessary, as our extrusion pieces are pre-machined for quicker, easier, and more robust connections.
- By intentionally designing custom components and advanced manufacturing techniques for precision-machined holes in the aluminum profile. Therefore, this facilitates easier assembly and ensures a more rigid connection when the profile bolts together. Consequently, the improved design effectively eliminates the hassles of aligning fiddly corner brackets, making them a thing of the past. Combining the ease of assembly with the laser-etched line markings on the profile helps you to get racing quicker. Each piece is individually placed in our custom foam packaging to ensure the safety of the product while in transport. This provides a seamless user experience from the time the packaging is opened.
Specifications
- Material: 40/40, 40/80, 40/120, 40/160 Aluminium Extrusion
- Finish: High Quality Powder Coat / Anodised Aluminium / Laser Engraved Logos and Alignment Lines
- Boxed Dimensions: 127cm (L) x 41.5cm (W) x 42.5cm (H) / 50inches(L) x 16.3inches(W) x 16.7inches(H)
- Product Dimensions: 136cm (L) x 84.2cm (W) x 94.2cm (H) / 53.5inches(L) x 33inches(W) x 37.1inches(H)
- Boxed Weight: GW: 63.6 kg / 140.2 lbs
- Product Weight / NW: 57.1 kg / 125.9 lbs
- Part Number: NLR-E048

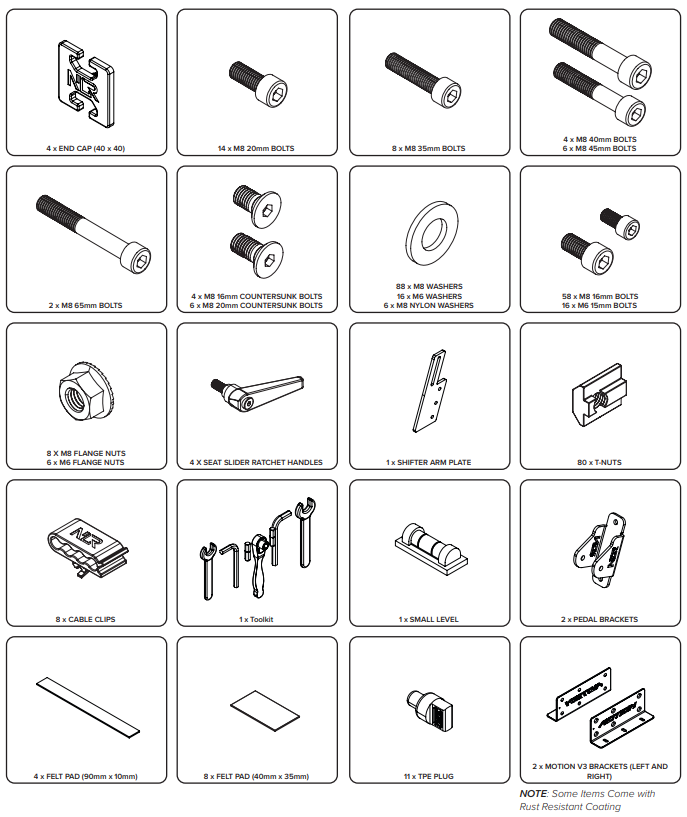

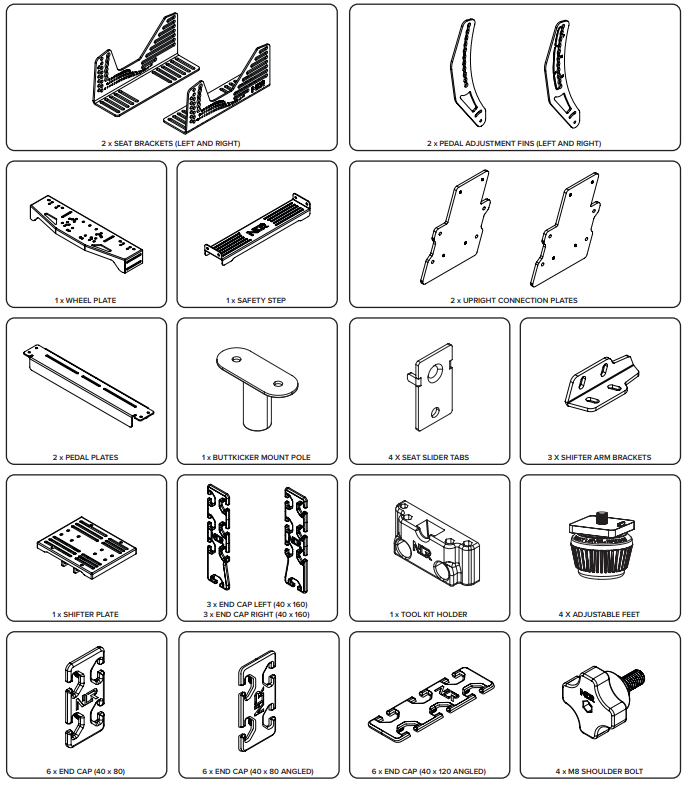

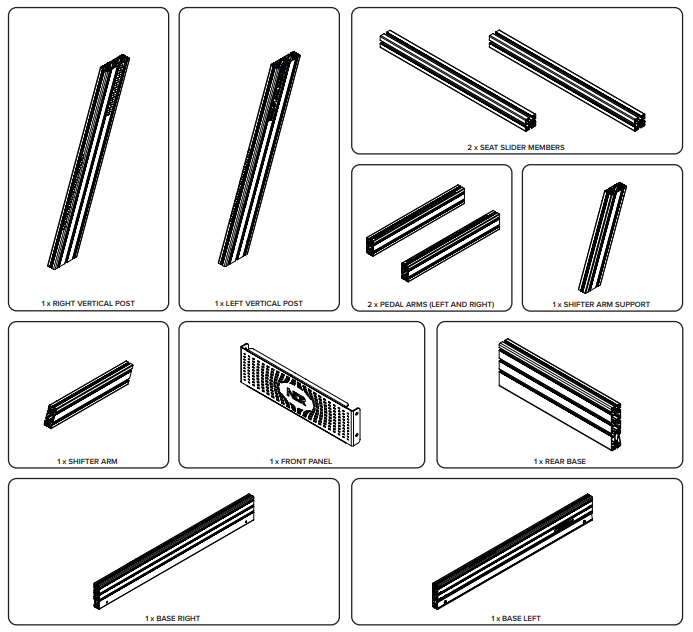

What’s In the Box
- Premium Black Anodised Finish Aluminium Extrusion
- Wheel Deck
- Motion Platform V3 Mounting Brackets
- Next Level Racing® Height Adjustable shock absorbing feet
- Next Level Racing® Custom Cable clips
- Next Level Racing® Seat Brackets
- Shifter and Handbrake Plate
- Next Level Racing® Safety Footstep
- Next Level Racing® Toolkit and Spirit Level
- Extra hardware for peripherals and Assembly Instructions
- ButtKicker® Mounting Pole
- Instruction Manual Booklet

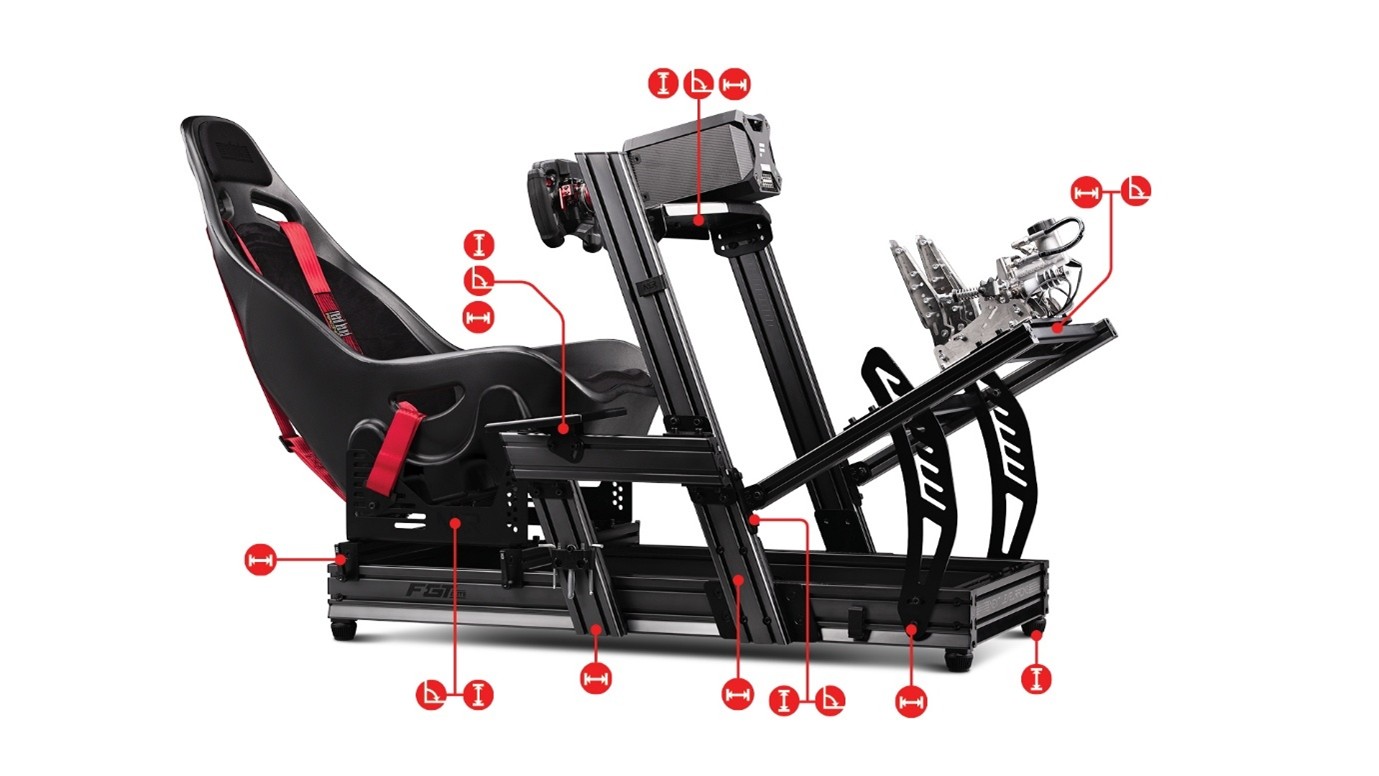

Adjustability
Compatible Products
- Next Level Racing® ES1 Seats
- Next Level Racing® ERS1 Seat
- Next Level Racing® ERS2 Seat
- Next Level Racing® ERS3 Seats
- Next Level Racing® ERS4 Seats
- Next Level Racing® ERS5 Seats
- Next Level Racing® PRS1 Seat
- Next Level Racing® PRS2 Seat
- Next Level Racing® VR Headset Holder
- Next Level Racing® Lockable Castor Wheels
- Next Level Racing® Elite Keyboard and Mouse Tray Black Edition
- Next Level Racing® Tablet and Button Box Holder
- Next Level Racing® Direct Mount Monitor Stand Black Edition
- Next Level Racing® Elite Direct Overhead Attachment
- Next Level Racing Elite Free Standing Single Monitor Stand Black Edition
- Next Level Racing Elite Free Standing Triple Monitor Stand Black Edition
- Next Level Racing Elite Free Standing Quad Monitor Stand Black Edition
- Next Level Racing® Elite Motion Adaptor Upgrade Kit
- Next Level Racing® Motion Platform V3
- Next Level Racing® Motion Plus Platform
- Next Level Racing® Traction Plus Platform (**Elite Motion Adaptor Upgrade Kit Required)
Compatible Electronics
Wheelbases:
- Fanatec DD1/DD2 Podium
- Fanatec CSL DD Range
- Simagic Alpha / M10
- Simagic Alpha Evo / Evo Sport / Evo Pro
- Moza R5 / R9 / R12 / R16 / R21
- Accuforce V1+V2
- Thrusmaster T300 / T300 RS / T500 RS / TS-PC / TS-XW / T-GT II
- Logitech G29 / G923 / G Pro
Shifters and Handbrakes:
- Aiologs Sequential Shifter
- BJ Sim Handbrake 2.0
- BJ Sequential Shifter 3.0
- DSD Handbrake Type 3
- DSD Pro Sequential Shifter
- Fanatec Clubsport Shifter
- Fanatec Clubsport Handbrake
- Heusinkveld Sim Shifter
- Heusinkveld Handbrake
- Logitech Driving Force Shifter
- Oktane Handbrake
- PSL Sequential Shifter.V2
- Thrustmaster TSS Shifter
- Thrustmaster TSS Handbrake
- Thrustmaster TH8A Shifter
- Simworx Shifter

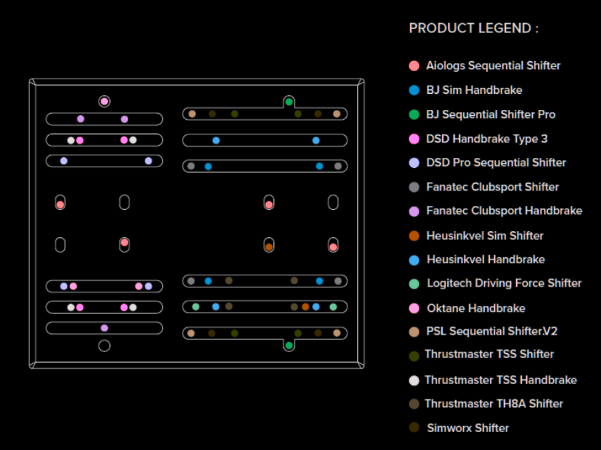

Mounting Diagram:
Pedals:
- Fanatec CSL Elite / CSL V3 Pedals & Inverted
- Fanatec ClubSport V3 Pedals
- MOZA CRP2 Pedals (may require extra M8 nuts for mounting)
- Heusinkveld Sprint Pedals (requires Sprint Pedal Baseplate)
- Heusinkveld Ultimate Pedals (requires Ultimate Pedal Baseplate)
- BJ Pedals (With Base Plate)
- Logitech G25 / G27 / G29 / Pro Pedals
FAQs
Q: What distinguishes the Scuderia Ferrari Edition from other F-GT Elite 160 models?
The Scuderia Ferrari Edition features exclusive Ferrari branding, including the iconic Scuderia Ferrari Racing Shield and red accents, delivering an authentic and premium Ferrari experience.
Q: What wheel mounting types are supported?
It supports a wide range of wheelbases, including bottom-mounted and Direct Drive systems, making it versatile for various setups.
Q: Is the cockpit compatible with motion platforms?
Yes, it is compatible with Next Level Racing® Motion Platform V3 and Motion Plus Platform, allowing for an enhanced simulation experience out of the box. To mount the Traction Plus Platform the Elite Motion Adaptor Upgrade Kit is required.
Q: What materials are used in the construction of the cockpit?
The cockpit features a premium anodized black aluminum finish with high-quality powder-coated carbon steel components, providing both strength and durability.
Instruction Guides and Videos
F-GT Elite 160 Scuderia Ferrari Edition Instruction Manuel (PDF)
F-GT Elite 160 Scuderia Ferrari Edition Instruction Assembly Video
