Product Overview

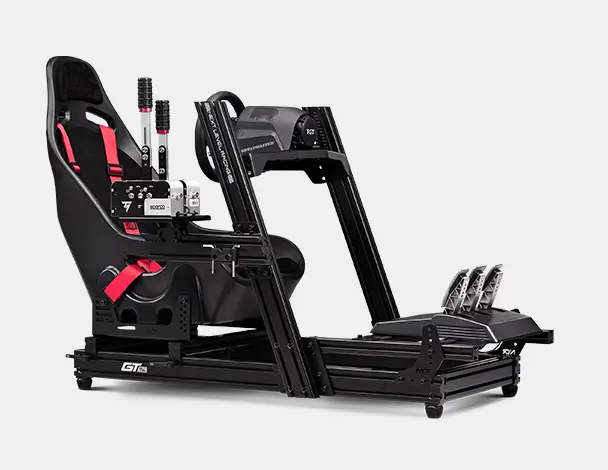

Introducing the new Next Level Racing® GTElite Cockpit. The GTElite cockpit’s patent-pending design brings rigidity and stability into a new price point making it the best mid-range aluminum profile cockpit on the market. With attention to detail and engineering as seen on our Elite series, the GTElite compared to mid-range cockpits in its class is more rigid, easier to assemble, provides more inclusions, while providing a higher quality finish.
While constructed to suit the mid-range category with a “4080” profile, through cutting edge engineering and manufacturing, combined with unique components, fixtures, and reinforcements, the GTElite is the most rigid mid-range cockpit. Through this innovative process, the GTElite in some cases is stronger than conventional “16040” cockpits seen on the market.
With an extensive ecosystem in mind, the GTElite is upgradable to be compatible with Next Level Racing® Motion Products and can be transformed into a multi-position cockpit solution with the ready set kits*.
**Motion Adaptor Kit and Formula Upgrade kit need to be purchased separately.
Leading Features
- Conventional corner brackets are things of the past. The GTElite Cockpit utilizes an 8mm thick Carbon Steel Reinforced Upright Direct Mounting plates, the GTElite has a stronger reinforcement and connection between the vertical uprights and the base of the chassis. To eliminate any movement and increase the clamping force between the components, custom-engineered full channel width spring ball T-slot nuts are used throughout the build + through bolts for areas that require higher clamp force and rigidity. The 8mm Carbon Steel Sandwich Plate also provides a connection between the vertical uprights and the pedal plate to lock in and increase the reinforcement between the structural parts of the cockpit. The strength continues with precision machined holes to bolt the base of the profile directly for a more rigid foundation.
- High-end features like strong wheel and pedal base like never seen before now available at a mid-range price point. Precisely designed multi-folded wheel, pedal, and shifter plates combined with thick carbon steel removes deflection and flex to provide a stronger and more rigid platform for users to attach their highest performing electronics. The strength can be seen in the FEA (Finite Element Analysis) Tests comparing the innovative GTElite plate designs to other flat steel or aluminum designs seen in conventional cockpits on the market.
- Wheel Deck –equivalent to 14.3mm steel or 20.85mm aluminum
- Pedal Deck – equivalent to 10.84mm steel or 15.83mm aluminum
- Shifter Plate – equivalent to 18.51 steel or 29.18mm aluminium
- The innovative Next Level Racing® Seat Sliding System has been designed and engineered to eliminate the issue of flex found in conventional seat sliders used in simulators. The NLR ratchets are included to easily slide your seat back and forth to find the desired position for a flex-free racing experience.
- The Next Level Racing® Seat Brackets are constructed from 4mm carbon steel to provide the rigidity required for competitive racers and the new design provides more adjustability to support multiple seating positions with 55 adjustment combinations. Users are also able to use the included Universal seat brackets to provide height and angle adjustability for bottom mounting seats. This is a new range of adjustment introduced for bottom mounting seat users that will provide more fine adjustments, resulting in a more personalized racing experience.
- By designing custom components and using advanced manufacturing processes with precision machined holes in the aluminium profile, it allows for easier assembly and a more rigid connection as the profile bolts together. The improved design means that the hassles of aligning fiddly corner brackets are a thing of the past. Combining the ease of assembly with the laser-etched line markings on the GTElite profile helps you to get racing quicker than any other aluminium cockpit before. Each piece is individually placed in our custom foam packaging to ensure the safety of the product while in transport, providing a seamless user experience from the time the packaging is opened, completing the Elite experience.
- The Next Level Racing® GTElite can be upgraded within the Elite series to suit the user’s racing needs. With the purchase of the Next Level Racing® GTElite Motion Adaptor Kit*, the GTElite can be compatible with Next Level Racing’s existing and future motion products. The GTElite can also become a Formula or Hybrid racing position cockpit with the addition of the Next Level Racing GTElite Formula and Hybrid Pedal Upgrade Kit*. With a growing ecosystem of accessories in the Elite series, users can create a full racing experience by adding accessories like the attach on Monitor Stands, keyboard and mouse trays, tablet mount holders, and VR holders.
**Items purchased separately
Specifications
- Supported Height: 120 -210 cm or 4ft – 6ft 9 inches
- Supported Max Weight: 150 kg or 330 lbs
- Product Dimensions: (L) 148 cm x (W) 82.5 cm or (H) 86.5cm /(L) 58.3 inches x W 32.5 inches x H 34.1 inches)
- Box Dimensions: 128.5 cm (L) X 41cm (W) X 25.1cm (H)/ 50.6 inches(L) x 16.1 inches (W) x 9.9 inches(H)
- Product Weight: 34.5 kg or 76 lbs
- Boxed Weight – 37.9 kg or 83.5 lbs
- Part Number – NLR-E022

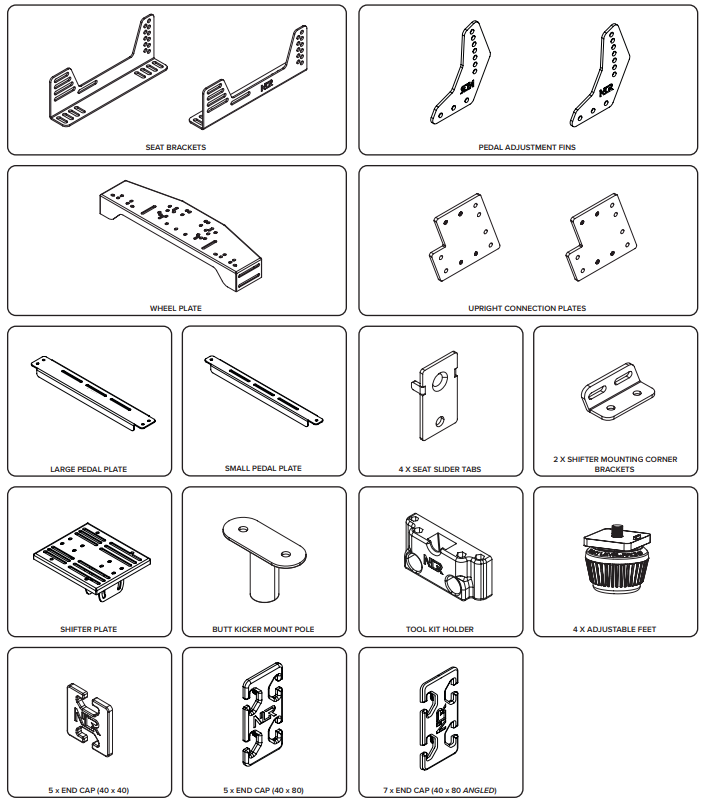

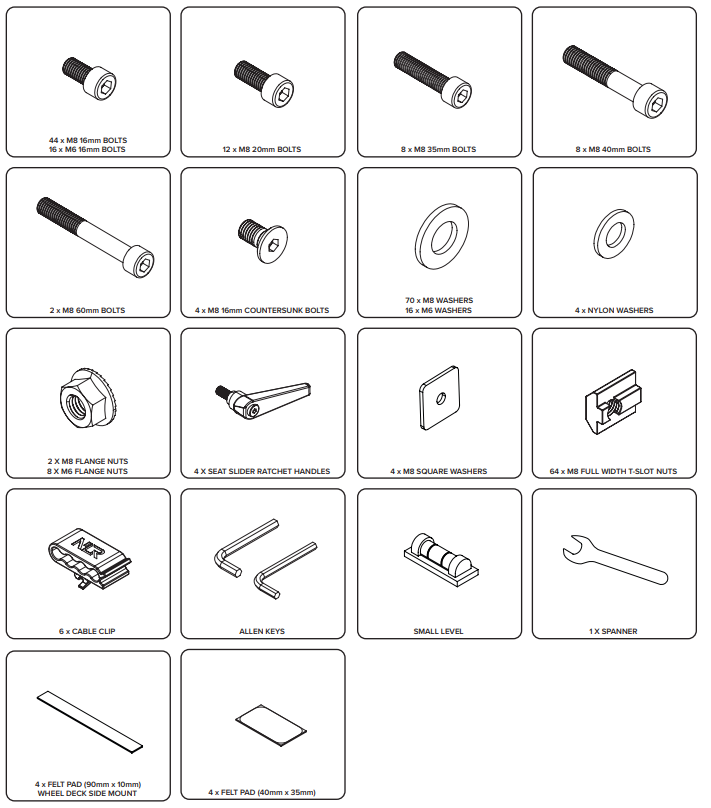

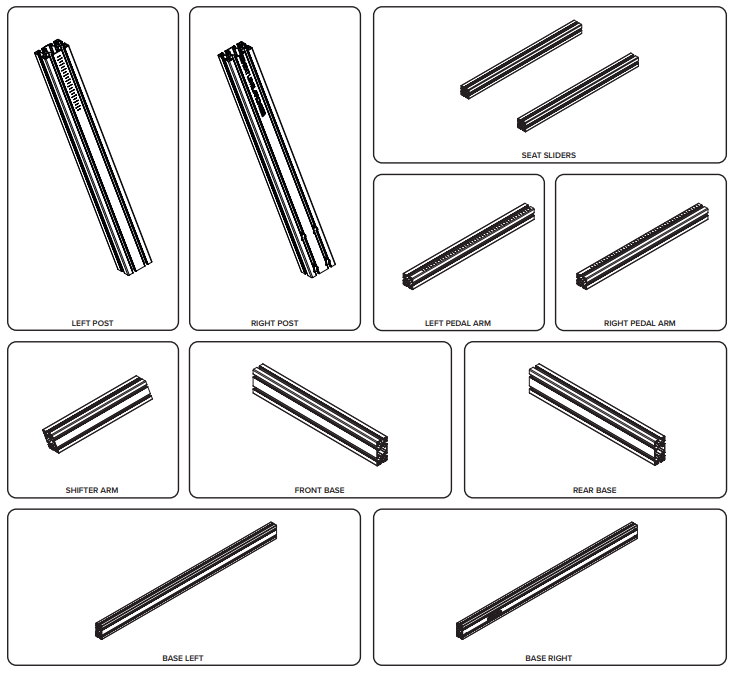

What’s In the Box
- Next Level Racing® GTElite Frame
- Seat brackets to install side mounting racing seat
- Gear shifter and hand brake support plate
- Next Level Racing® Tool Holder and Allen Keys, spirit level
- Next Level Racing® height adjustable shock absorption feet
- 8 x Next Level Racing® Cable Management Clips
- Buttkicker® Gamer 2 adaptor
- Bolts to hard mount your wheel, shifter and pedals
- Next Level Racing® Custom End Caps
- Magnetic spirit level
- Colour instruction booklet for quick and easy assembly

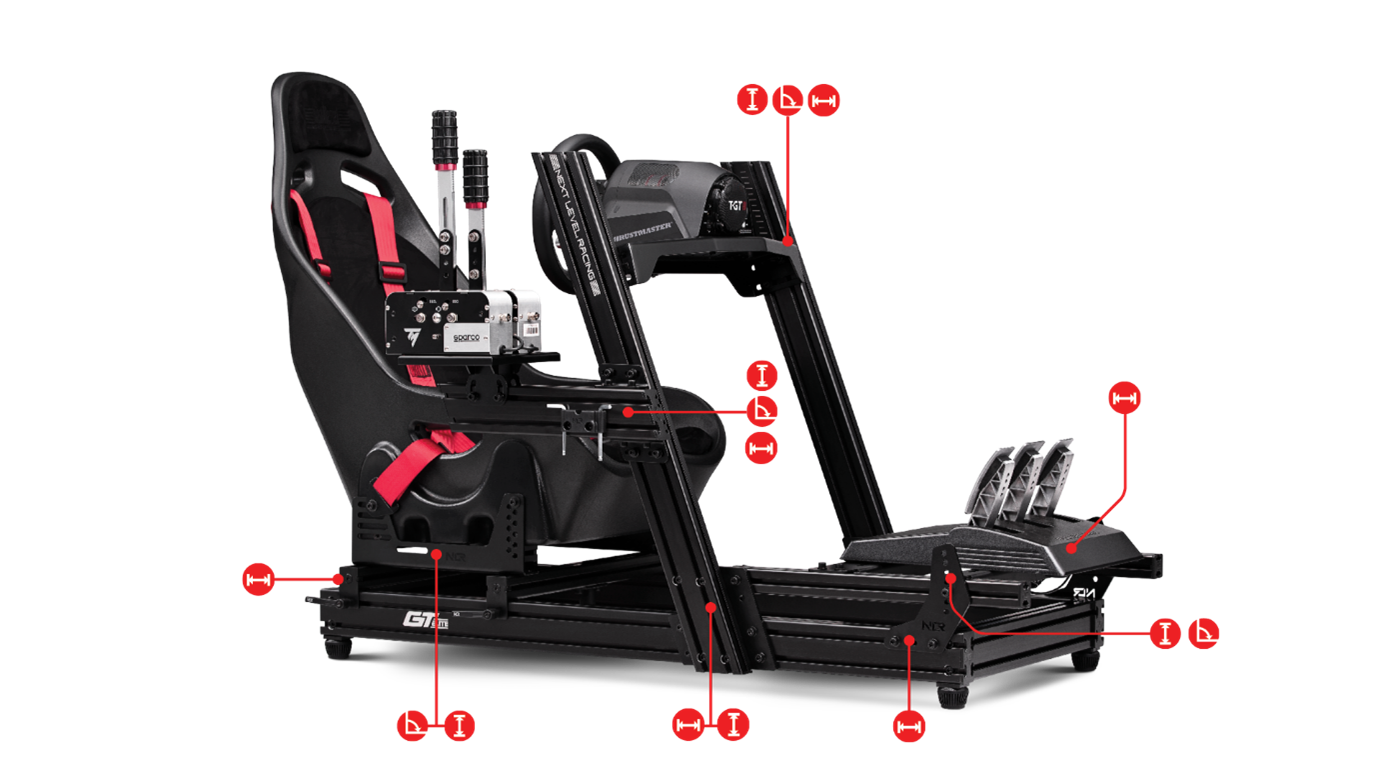

Adjustability
Compatible Products
- Next Level Racing® ES1 Seats
- Next Level Racing® ERS1 Seat
- Next Level Racing® ERS2 Seat
- Next Level Racing® ERS3 Seats
- Next Level Racing® ERS4 Seats
- Next Level Racing® ERS5 Seats
- Next Level Racing® PRS1 Seat
- Next Level Racing® PRS2 Seat
- Next Level Racing® VR Headset Holder
- Next Level Racing® Lockable Castor Wheels
- Next Level Racing® Elite Keyboard and Mouse Tray Black Edition
- Next Level Racing® Tablet and Button Box Holder
- Next Level Racing® Elite Formula Upgrade Kit
- Next Level Racing® Direct Mount Monitor Stand – BlackEdition
- Next Level Racing Elite Free Standing Single Monitor Stand – Black Edition
- Next Level Racing Elite Free Standing Triple Monitor Stand – Black Edition
- Next Level Racing Elite Free Standing Quad Monitor Stand – Black Edition
- Next Level Racing® Motion Plus Platform
- Next Level Racing® Motion Platform V3**
- Next Level Racing® Traction Plus Platform**
- Next Level Racing® Elite Motion Adaptor Upgrade Kit (**Required for Motion V3 and Traction Plus compatibility)
Compatible Electronics
Wheelbases:
- Fanatec DD1/DD2 Podium
- Fanatec CSL DD Range
- Simagic Alpha / M10
- Simagic Alpha Evo / Evo Sport / Evo Pro
- Moza R5 / R9 / R12 / R16 / R21
- Accuforce V1+V2
- Thrusmaster T300 / T300 RS / T500 RS / TS-PC / TS-XW / T-GT II
- Logitech G29 / G923 / G Pro
Shifters and Handbrakes:
- Aiologs Sequential Shifter
- BJ Sim Handbrake 2.0
- BJ Sequential Shifter 3.0
- DSD Handbrake Type 3
- DSD Pro Sequential Shifter
- Fanatec Clubsport Shifter
- Fanatec Clubsport Handbrake
- Heusinkveld Sim Shifter
- Heusinkveld Handbrake
- Logitech Driving Force Shifter
- Oktane Handbrake
- PSL Sequential Shifter.V2
- Thrustmaster TSS Shifter
- Thrustmaster TSS Handbrake
- Thrustmaster TH8A Shifter
- Simworx Shifter

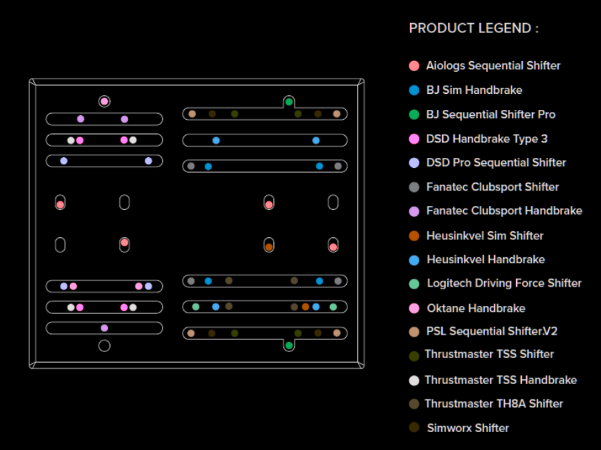

Mounting Diagram:
Pedals:
- Fanatec CSL Elite / CSL V3 Pedals & Inverted
- Fanatec ClubSport V3 Pedals
- MOZA CRP2 Pedals (may require extra M8 nuts for mounting)
- Heusinkveld Sprint Pedals (requires Sprint Pedal Baseplate)
- Heusinkveld Ultimate Pedals (requires Ultimate Pedal Baseplate)
- BJ Pedals (With Base Plate)
- Logitech G25 / G27 / G29 / Pro Pedals
FAQs
Q: What wheel mounting type is this edition ideal for?
The Wheel Plate Edition is ideal for bottom-mounted wheelbases. It features a robust wheel plate that supports entry to mid-range to high-end wheels from brands like Logitech, Thrustmaster, Fanatec CSL/CSL DD, and SimXperience AccuForce. This version is perfect for users who do not require side or front mounting and prefer a cleaner, straightforward installation.
Q: Is the cockpit adjustable for different driving positions?
Yes, the GTElite Wheel Plate Edition offers extensive adjustability, including height, angle, and distance adjustments for the pedal plate, as well as a flex-free seat slider system, allowing users to fine-tune their driving position.
Q: What materials are used in the construction of the cockpit?
The cockpit features a premium anodized black aluminum finish with carbon steel components, providing both strength and durability.
Q: Is the cockpit compatible with motion platforms?
Yes, the GTElite Wheel Plate Edition is upgradable to be compatible with Next Level Racing® Motion Platform V3 and Traction Plus Platform through the addition of the Elite Motion Adaptor Upgrade Kit. Out of the box it is compatible with Next Level Racing Motion Plus Platform
Instruction Guides and Videos
GTElite Wheelplate Edition Instruction Manual (PDF Version)
GTElite Wheelplate Edition Assembly Video (YouTube Video)
