Product Overview
Build your own Elite Journey with the best-value aluminum profile cockpit. Specifically, the GTElite Lite cockpit’s patent-pending design brings unparalleled rigidity and stability. This innovation sets a new price point, consequently making it the best mid-range aluminum profile cockpit on the market. With attention to detail and engineering as seen on our Elite series, the GTElite Lite compared to mid-range cockpits in its class is more rigid, easier to assemble, and provides more inclusions, while providing a higher quality finish.
While constructed to suit the mid-range category with a “4080” profile, through cutting-edge engineering and manufacturing, combined with unique components, fixtures, and reinforcements, the GTElite Lite is the most rigid mid-range cockpit. Through this innovative process, the GTElite Lite in some cases is stronger than conventional “16040” cockpits seen on the market.
Particularly, with an extensive ecosystem in mind, the GTElite Lite is upgradable to be compatible with Next Level Racing® Motion Products and can be transformed into a multi-position cockpit solution with the ready set kits*.
**Motion Adaptor Kit and Formula Upgrade kit need to be purchased separately.
Leading Features
- Conventional corner brackets are now things of the past. In contrast, the GTElite Lite Cockpit utilizes an innovative approach with its 8mm thick Carbon Steel Reinforced Upright Direct Mounting plates. As a result, the GTElite Lite boasts stronger reinforcement and connection between the vertical uprights and the base of the chassis. Furthermore, to eliminate any movement and increase the clamping force between the components, custom-engineered full channel width spring ball T-slot nuts are strategically used throughout the build. Additionally, through bolts are employed in areas that require higher clamp force and rigidity. The 8mm Carbon Steel Sandwich Plate also provides a connection between the vertical uprights and the pedal plate to lock in and increase the reinforcement between the structural parts of the cockpit. Similarly, the strength continues with precision machined holes to bolt the base of the profile directly for a more rigid foundation.
- High-end features like strong wheel and pedal base like never seen before now available at a mid-range price point. Precisely designed multi-folded wheel, pedal, and plates combined with thick carbon steel remove deflection and flex to provide a stronger and more rigid platform for users to attach their highest-performing electronics. The FEA (Finite Element Analysis) Tests reveal the strength of the innovative GTElite Lite plate designs by comparing them to other flat steel or aluminium designs commonly found in conventional cockpits on the market.
- Wheel Deck –equivalent to 14.3mm steel or 20.85mm aluminium
- Pedal Deck – equivalent to 10.84mm steel or 15.83mm aluminium
- The innovative Next Level Racing® Seat Sliding System has been meticulously designed and engineered, specifically to address and eliminate the issue of flex found in conventional seat sliders used in simulators. Then, the NLR ratchets are thoughtfully included, thereby allowing you to easily slide your seat back and forth. Consequently, this feature enables you to find the desired position, ensuring a flex-free racing experience.
- Additionally, the Next Level Racing® Elite Sim Racing Seats are highly recommended for use with the Elite range of cockpits. Our design team has specifically crafted and optimized these seats to meet the needs of elite sim racers.
- Designing custom components and utilizing advanced manufacturing processes, including precision machined holes in the aluminum profile, facilitates easier assembly and a more rigid connection as the profile bolts together. As a result, the improved design significantly reduces the hassles of aligning fiddly corner brackets, effectively making them a thing of the past. Combining the ease of assembly with the laser-etched line markings on the GTElite Lite profile helps you to get racing quicker than any other aluminum cockpit before. Each piece is individually placed in our custom foam packaging to ensure the safety of the product while in transport, providing a seamless user experience from the time the packaging is opened, completing the Elite experience.
- The Next Level Racing® GTElite Lite offers versatile upgrade options within the Elite series to meet the user’s evolving racing needs. For instance, with the purchase of the Next Level Racing® GTElite Motion Adaptor Kit*, the GTElite Lite becomes compatible with Next Level Racing’s existing and future motion products. Moreover, the GTElite Lite can transform into a Formula or Hybrid racing position cockpit. That is possible through the addition of the Next Level Racing GTElite Formula and Hybrid Pedal Upgrade Kit and the Next Level Racing Universal Seat Brackets*
**Items purchased separately
Specifications
- Supported Height: 120 -210 cm or 4ft – 6ft 9 inches
- Supported Max Weight: 150 kg or 330 lbs
- Product Dimensions: (L) 148 cm x (W) 82.5 cm or (H) 86.5cm /(L) 58.3 inches x W 32.5 inches x H 34.1 inches)
- Box Dimensions: 128.5 cm (L) X 41cm (W) X 25.1cm (H)/ 50.6 inches(L) x 16.1 inches (W) x 9.9 inches(H)
- Product Weight: 31 kg or 68.3 lbs
- Boxed Weight – 34.3 kg or 75.6 lbs
-
Part Number – NLR-E028

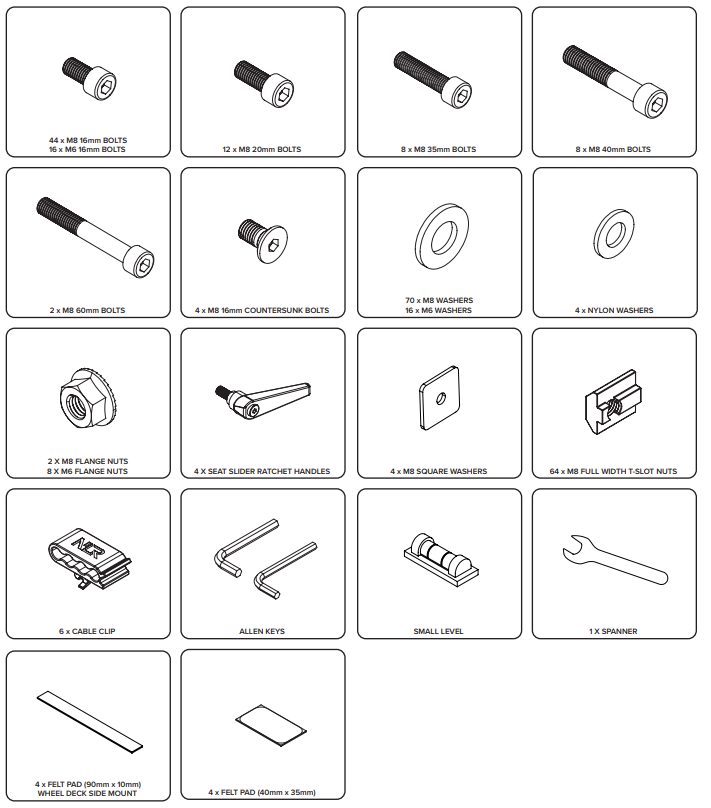

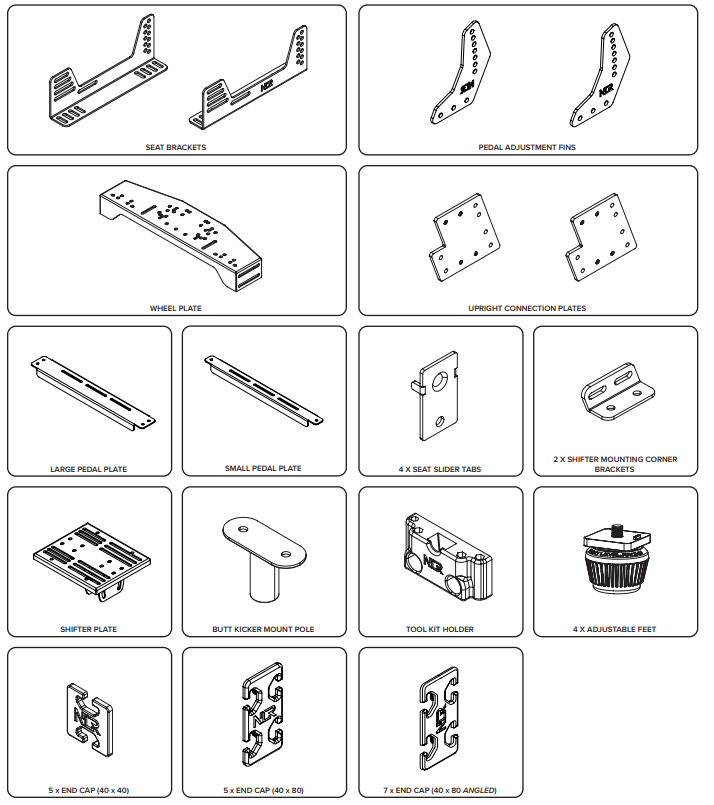

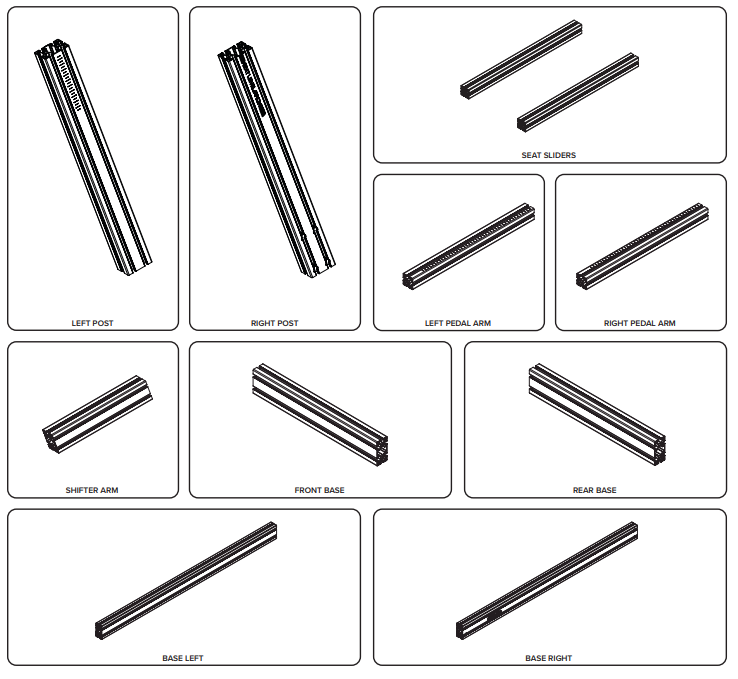

What’s In the Box
- Next Level Racing® GTElite Lite Frame
- Next Level Racing® Tool Holder and Allen Keys, spirit level
- Next Level Racing® height adjustable shock absorption feet
- 6 x Next Level Racing® Cable Management Clips
- Buttkicker® Gamer 2 adaptor
- Bolts to hard mount your wheel and pedals
- Next Level Racing® Custom End Caps
- Magnetic spirit level
- Colour instruction booklet for quick and easy assembly

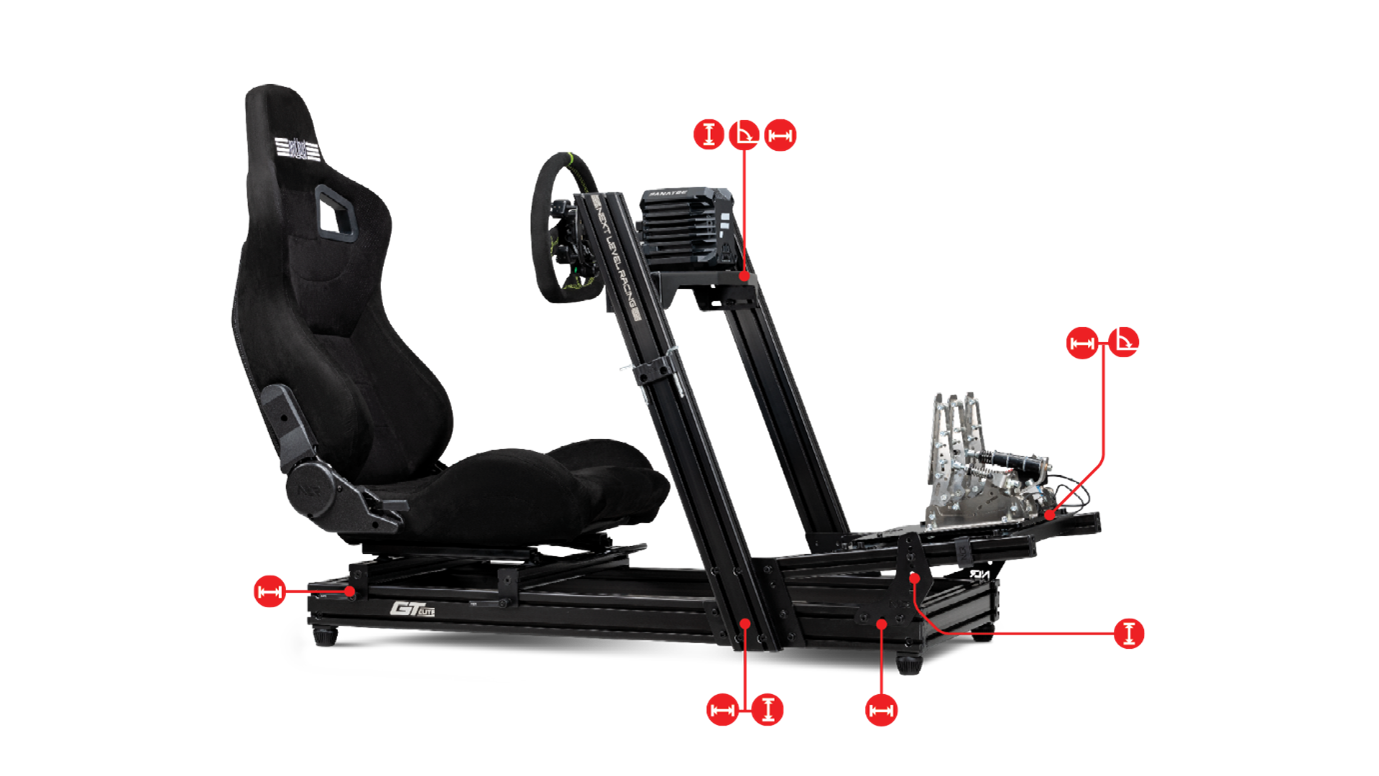

Adjustability
Compatible Products
- Next Level Racing® ERS1 Seat
- Next Level Racing® ERS2 Seat
- Next Level Racing® ERS3 Seats
- Next Level Racing® ERS4 Seats
- Next Level Racing® ERS5 Seats
- Next Level Racing® PRS1 Seat
- Next Level Racing® PRS2 Seat
- Next Level Racing® VR Headset Holder
- Next Level Racing® Lockable Castor Wheels
- Next Level Racing® Elite Keyboard and Mouse Tray Black Edition
- Next Level Racing® Tablet and Button Box Holder
- Next Level Racing® Elite Formula and Hybrid Pedal Upgrade Kit
- Next Level Racing® Universal Seat Brackets
- Next Level Racing® Elite Shifter Add-On
- Next Level Racing® Direct Mount Monitor Stand – Black Edition
- Next Level Racing Elite Free Standing Single Monitor Stand – Black Edition
- Next Level Racing Elite Free Standing Triple Monitor Stand – Black Edition
- Next Level Racing Elite Free Standing Quad Monitor Stand – Black Edition
- Next Level Racing® Motion Plus Platform
- Next Level Racing® Motion Platform V3**
- Next Level Racing® Traction Plus Platform**
- Next Level Racing® Elite Motion Adaptor Upgrade Kit (**Required for Motion V3 and Traction Plus compatibility)
Compatible Electronics
Wheelbases:
- Fanatec DD1/DD2 Podium
- Fanatec CSL DD Range
- Simagic Alpha / M10
- Simagic Alpha Evo / Evo Sport / Evo Pro
- Moza R5 / R9 / R12 / R16 / R21
- Accuforce V1+V2
- Thrusmaster T300 / T300 RS / T500 RS / TS-PC / TS-XW / T-GT II
- Logitech G29 / G923 / G Pro
Pedals:
- Fanatec CSL Elite / CSL V3 Pedals & Inverted
- Fanatec ClubSport V3 Pedals
- MOZA CRP2 Pedals (may require extra M8 nuts for mounting)
- Heusinkveld Sprint Pedals (requires Sprint Pedal Baseplate)
- Heusinkveld Ultimate Pedals (requires Ultimate Pedal Baseplate)
- BJ Pedals (With Base Plate)
- Logitech G25 / G27 / G29 / Pro Pedals
FAQs
Q: What wheel mounting type is this edition ideal for?
The Wheel Plate Edition is designed for bottom-mounted wheelbases, making it ideal for users with entry to mid-range wheels from brands like Logitech, Thrustmaster, Fanatec CSL/CSL DD, and SimXperience AccuForce.
Q: What driving positions does this cockpit support?
It offers a dedicated GT driving position with extensive adjustability, including height, angle, and distance adjustments for the pedal plate, along with a flex-free seat slider system.
Q: Is the cockpit compatible with motion platforms?
Out of the box, the GTElite Lite Wheel Plate Edition is compatible with the Next Level Racing® Motion Plus Platform. To integrate with the Motion Platform V3 or Traction Plus Platform, the Elite Motion Adaptor Upgrade Kit is required.
Q: What materials are used in the construction of the cockpit?
The cockpit features a premium anodized black aluminum finish with high-quality powder-coated carbon steel components, providing both strength and durability.
Instruction Guides and Videos
GTElite Lite Wheelplate Edition Instruction Manual (PDF Version)
GTElite Lite Wheelplate Edition Assembly Video (YouTube Video)
