Product Overview
Build your own Elite Journey with the best value all-in-one Formula, GT, Hybrid value aluminum profile cockpit, the Next Level Racing® F-GT Elite Lite cockpit. Our team thoughtfully designs and engineers this product, incorporating feedback from our community and the virtual and real motorsport industry. Consequently, the Next Level Racing® F-GT Elite Lite racing simulator cockpit* emerges as a true all-in-one formula/GT/Hybrid position racing cockpit. As a result, it pushes the boundaries of what is expected of aluminum for functionality and affordability.
Firstly, building on the popular design and globally used F-GT Elite cockpit, the F-GT Elite Lite sets the benchmark. It stands out for aesthetics, functionality, and quality among aluminum profile cockpits, often referred to as an “8020 racing simulator cockpit”. Despite its construction to suit the mid-range category with a ‘4080’ profile, the F-GT Elite Lite becomes the most rigid mid-range cockpit due to its innovative engineering and manufacturing, along with the integration of unique components, fixtures, and reinforcements.
Furthermore, the Elite series of products are used globally by many leading esports teams such as Ferrari Esports, Team Fordzilla, and Veloce. These teams demand the highest level of competition and equipment suitable for esports athletes. Using a variety of unique components and cutting-edge manufacturing, the F-GT Elite Lite offers a solution that is both rigid and strong for all types of sim racing.
Leading Features
- The F-GT Elite Lite Front & Side Mount Edition from Next Level Racing includes a bespoke Direct Drive mounting solution. Additionally, machine-folded and precision Laser Cut parts make the Next Level Racing F-GT Elite Lite Front & Side Mount Cockpit a premium option for racers. Furthermore, this design caters to those who demand their cockpit’s ultimate versatility and rigidity.
- Finally, the 8mm thick Carbon Steel Side Mounts offer 70 degrees of tilt (40 degrees downward, 30 degrees upward). This feature gives drivers the option to fine-tune their Elite cockpit for the perfect driving position. NOTE: The F-GT Elite Lite Front & Side Mount Edition also comes with 6mm Carbon Steel (machine folded & laser cut) “WINGS” as well as the 6mm Front Mount Bracket Option.
- In addition to providing complete rigidity and ultimate adjustability, the F-GT Elite Lite cockpit offers a versatile experience. This is suitable for true and comfortable Formula, GT, hybrid, truck, and tank driving positions. Moreover, with quick adjustments between positions, it stands out as a true one-for-all cockpit. Additionally, the increased angle and range provided in the seat brackets, wheel, and pedal plate cater to users of all sizes and driving styles. This design feature ensures more adjustability than ever before. Furthermore, the F-GT Elite Lite is ideally suited for any global esports activation. This is particularly notable as it demands the best from a cockpit that offers several racing positions.
- The innovative Next Level Racing® Seat Sliding System has been designed and engineered to eliminate the issue of flex found in conventional seat sliders used in simulation. The NLR ratchets are used to easily slide your seat back and forth to find the desired position for a flex free racing experience.
- The Next Level Racing® Seat Brackets are constructed from 5mm carbon steel to provide the rigidity required for high end sim racers and the new design provides more adjustability than ever before to support multiple seating positions with 98 adjustment options.
- The sliding pedal plates have been designed to provide easy and quick distance adjustments for pedals as well as compatibility with the continuously expanding pedal market. Equipped with 2 slotted 5mm carbon steel pedal plates with double precision folds, this setup ensures supreme rigidity but straightforward compatibility. The pedal tray area has been designed to offer more angle, height and distance adjustments to accommodate for a wider range of driving positions. The laser etched markings on the aluminium profile assist with making accurate adjustments.
- The F-GT Elite Lite cockpit provides a long list of unique custom-engineered components to provide users with the highest quality and performing product on the market. Instead of adapting industrial off-the-shelf components, we are pioneering the design of aluminum profile cockpits. Because of this, no industrial square brackets are required, as profile pieces are pre-machined to allow for quicker, easier, and stronger connections. In the same way, we focused on the finer details like the black electroplated premium spring ball T-slot nuts and the custom NLR end caps to combine for improved functionality and user experience. Finally, the combination of the premium finish and materials, custom components, and market-leading design come together for a visual masterpiece.
- Uneven floors should never spoil your simulation experience. We have kept this in mind when designing our height adjustment feet allowing independent adjustments for the height of each corner of your cockpit. Not only do the custom-designed feet significantly enhance aesthetics compared to the typical industrial feet commonly used in the simulation market, but they also feature TPE shock absorption plugs. Finally, these plugs are specifically designed to absorb vibrations and provide grip on slippery surfaces.
- Finally, The Next Level Racing® F-GT Elite Lite is compatible with the Next Level Racing® Motion Plus Platform. To clarify, for compatibility with the Motion Platform V3 or Traction Plus Platform, the Next Level Racing® Elite Motion Adaptor Upgrade Kit is needed.
Specifications
- Supported Height: 120 -210 cm or 4ft – 6ft 9 inches
- Supported Max Weight: 150 kg or 330 lbs
- Product Dimensions: (L) 138 cm x (W) 69 cm or (H) 86cm (L 54.3 inches x W 27.1 inches x H 33 inches)
- Box Dimensions: 126 cm (L) X 40 cm (W) X 27.5 cm (H) 49.6 inches(L) x 15.7 inches (W) x 10.8 inches(H)
- Product Weight: 38kg or 84 lbs
- Boxed Weight – GW: 42.2 kg or 93 lbs
- Part Number – NLR-E033

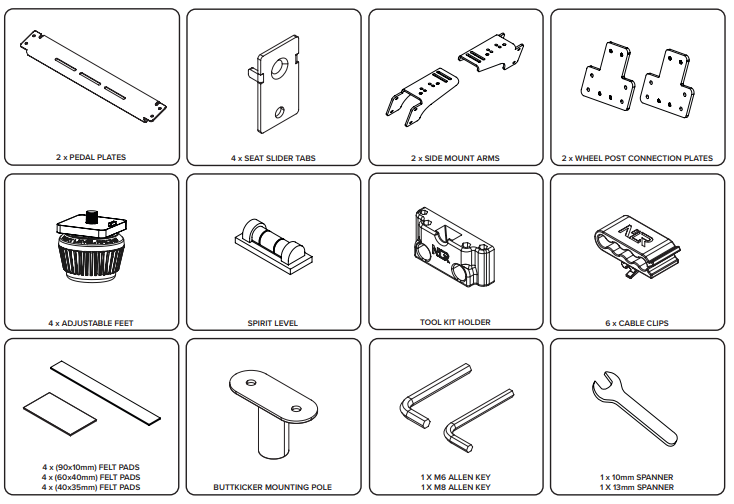

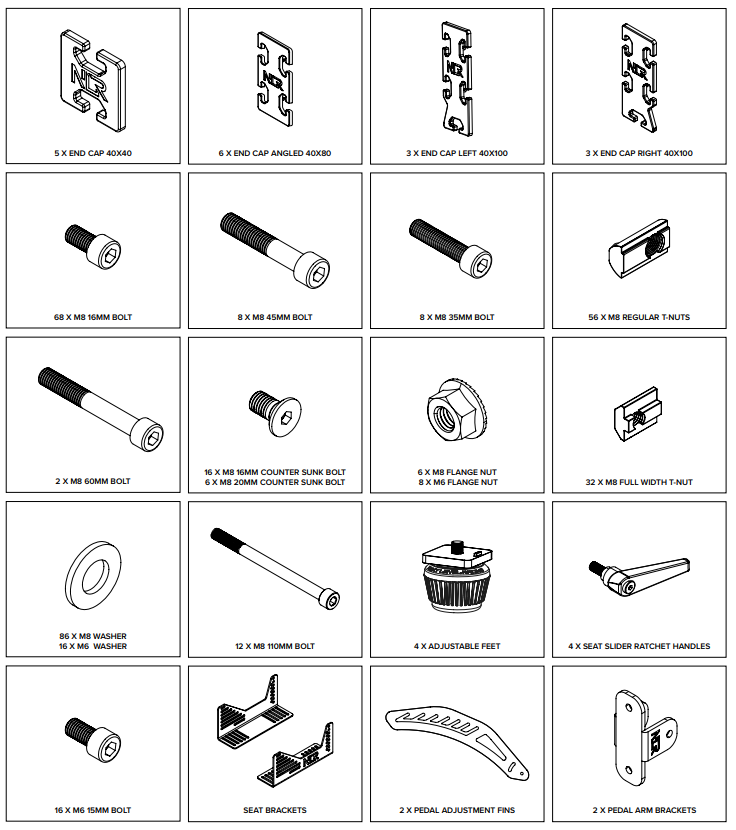

What’s In the Box

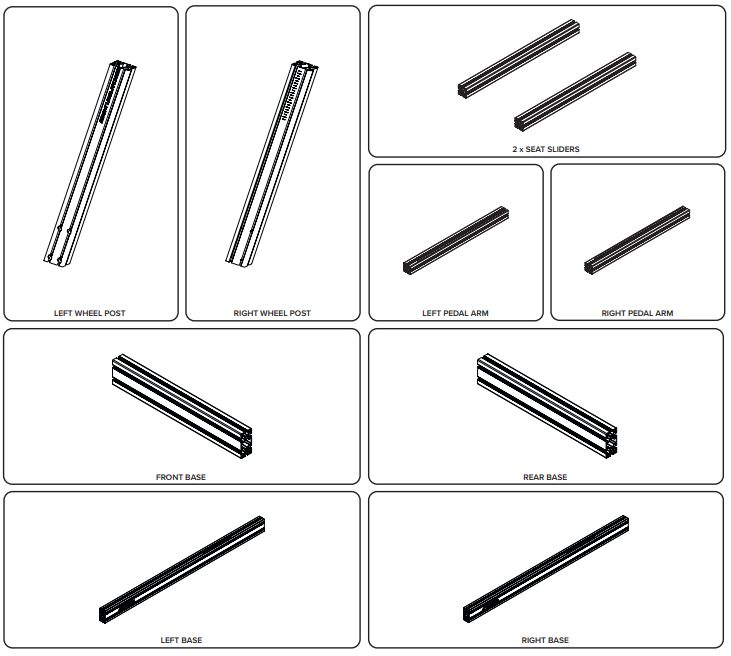

- Next Level Racing® F-GT Elite Lite Frame (80X40 Aluminium Base)
- Seat brackets to install side mounting racing seat
- Next Level Racing® Tool Holder with M6 & M8 Allen Key and spirit level
- Next Level Racing® height adjustable shock absorption feet
- 6 x Next Level Racing® Cable Management Clips
- Buttkicker® Gamer Adaptor
- Bolts to hard mount your wheels and pedals
- Next Level Racing® Custom End Caps
- Magnetic spirit level
- Colour instruction booklet for quick and easy assembly

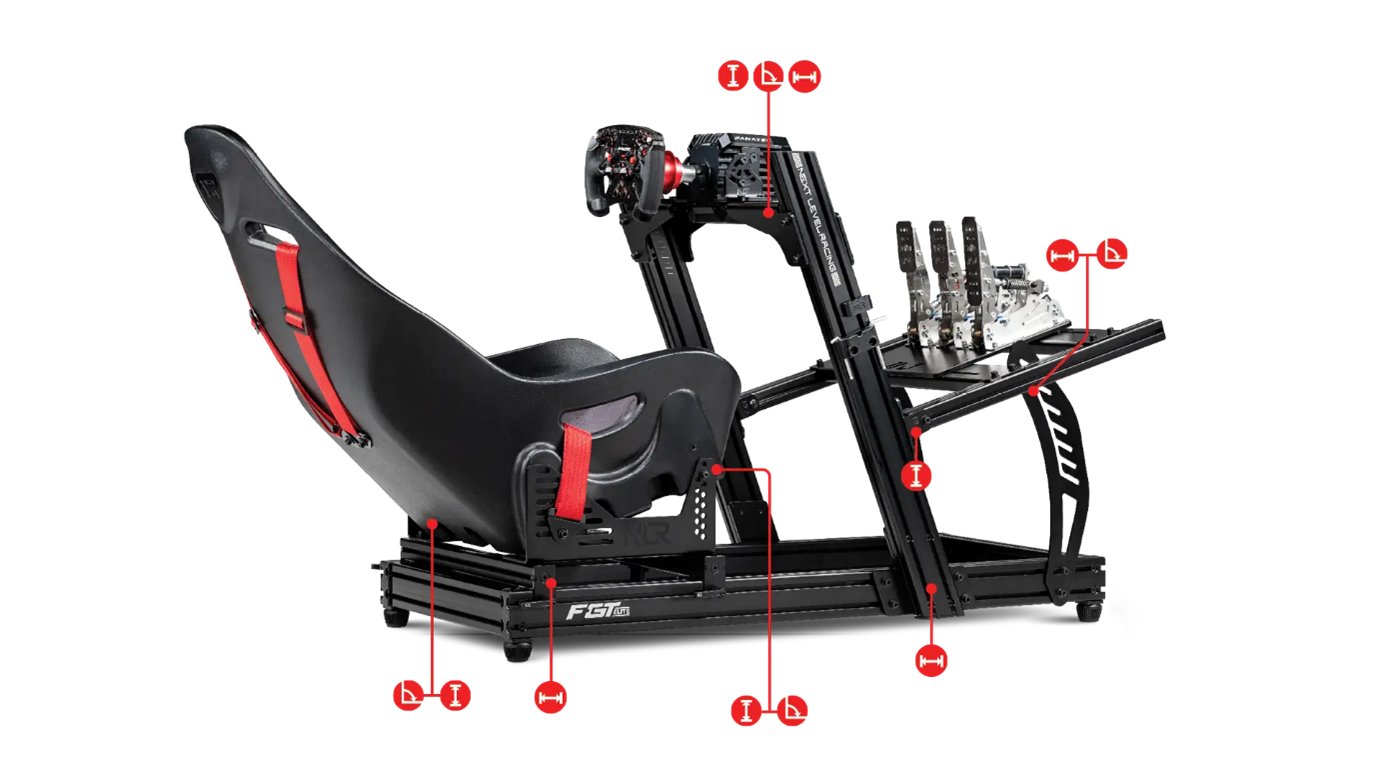

Adjustability
Compatible Products
- Next Level Racing® ES1 Seats
- Next Level Racing® ERS1 Seat
- Next Level Racing® ERS2 Seat
- Next Level Racing® ERS3 Seats
- Next Level Racing® ERS4 Seats
- Next Level Racing® ERS5 Seats
- Next Level Racing® PRS1 Seat
- Next Level Racing® PRS2 Seat
- Next Level Racing® VR Headset Holder
- Next Level Racing® Lockable Castor Wheels
- Next Level Racing® Elite Keyboard and Mouse Tray Black Edition
- Next Level Racing® Tablet and Button Box Holder
- Next Level Racing® Direct Mount Monitor Stand – BlackEdition
- Next Level Racing Elite Free Standing Single Monitor Stand – Black Edition
- Next Level Racing Elite Free Standing Triple Monitor Stand – Black Edition
- Next Level Racing Elite Free Standing Quad Monitor Stand – Black Edition
- Next Level Racing® Motion Plus Platform
- Next Level Racing® Motion Platform V3**
- Next Level Racing® Traction Plus Platform**
- Next Level Racing® Elite Motion Adaptor Upgrade Kit (**Required for Motion V3 and Traction Plus compatibility)
Compatible Electronics
Wheelbases:
- Fanatec DD1/DD2 Podium
- Fanatec CSL DD Range
- Simucube 2 Pro
- Simucube 2 Sport
- Simucube 2 Ultimate
- Simagic Alpha / M10
- Simagic Alpha Evo / Evo Sport / Evo Pro **With Simagic MB-F Bracket**
- Mige 130 motors
- VRS DirectForce Pro
- Kollmorgen akm 52-53-54 (osw and leo bodnar simsteering systems)

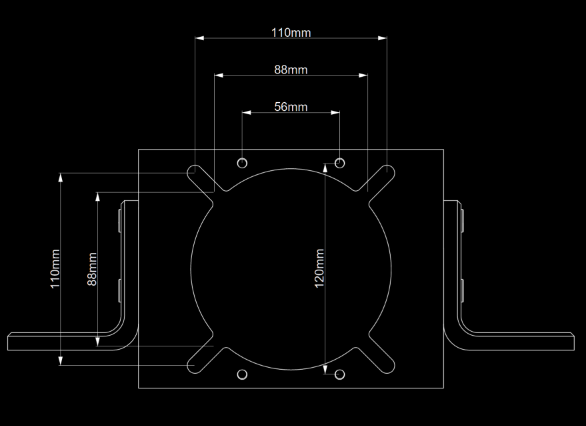

Mounting Specifications:
Pedals:
- Fanatec CSL Elite / CSL V3 Pedals & Inverted
- Fanatec ClubSport V3 Pedals
- MOZA CRP2 Pedals (may require extra M8 nuts for mounting)
- Heusinkveld Sprint Pedals (requires Sprint Pedal Baseplate)
- Heusinkveld Ultimate Pedals (requires Ultimate Pedal Baseplate)
- BJ Pedals (With Base Plate)
- Logitech G25 / G27 / G29 / Pro Pedals
FAQs
Q: What wheel mounting type is this edition ideal for?
This edition is specifically designed for front and side-mounted Direct Drive wheelbases. It includes Next Level Racing’s bespoke Direct Drive mounting solution, compatible with high-end systems.
The 8mm thick carbon steel side mounts offer 70 degrees of tilt adjustment (40° downward, 30° upward), allowing drivers to fine-tune their cockpit for the perfect driving position.
Q: What driving positions does this cockpit support?
The F-GT Elite Lite supports multiple driving positions, including Formula, GT, hybrid, truck, and tank. Quick adjustments between positions make it a versatile all-in-one cockpit suitable for various racing styles.
Q: Is the cockpit compatible with motion platforms?
Out of the box, the F-GT Elite Lite Wheel Plate Edition is compatible with the Next Level Racing® Motion Plus Platform. To integrate with the Motion Platform V3 or Traction Plus Platform, the Elite Motion Adaptor Upgrade Kit is required.
Q: What materials are used in the construction of the cockpit?
The cockpit features a premium anodized black aluminum finish with high-quality powder-coated carbon steel components, providing both strength and durability.
Instruction Guides and Videos
F-GT Elite Lite Front and Side Mount Edition Instruction Manual (PDF Version)
F-GT Elite Lite Front and Side Mount Edition Assembly Video (YouTube Video)
