Overview

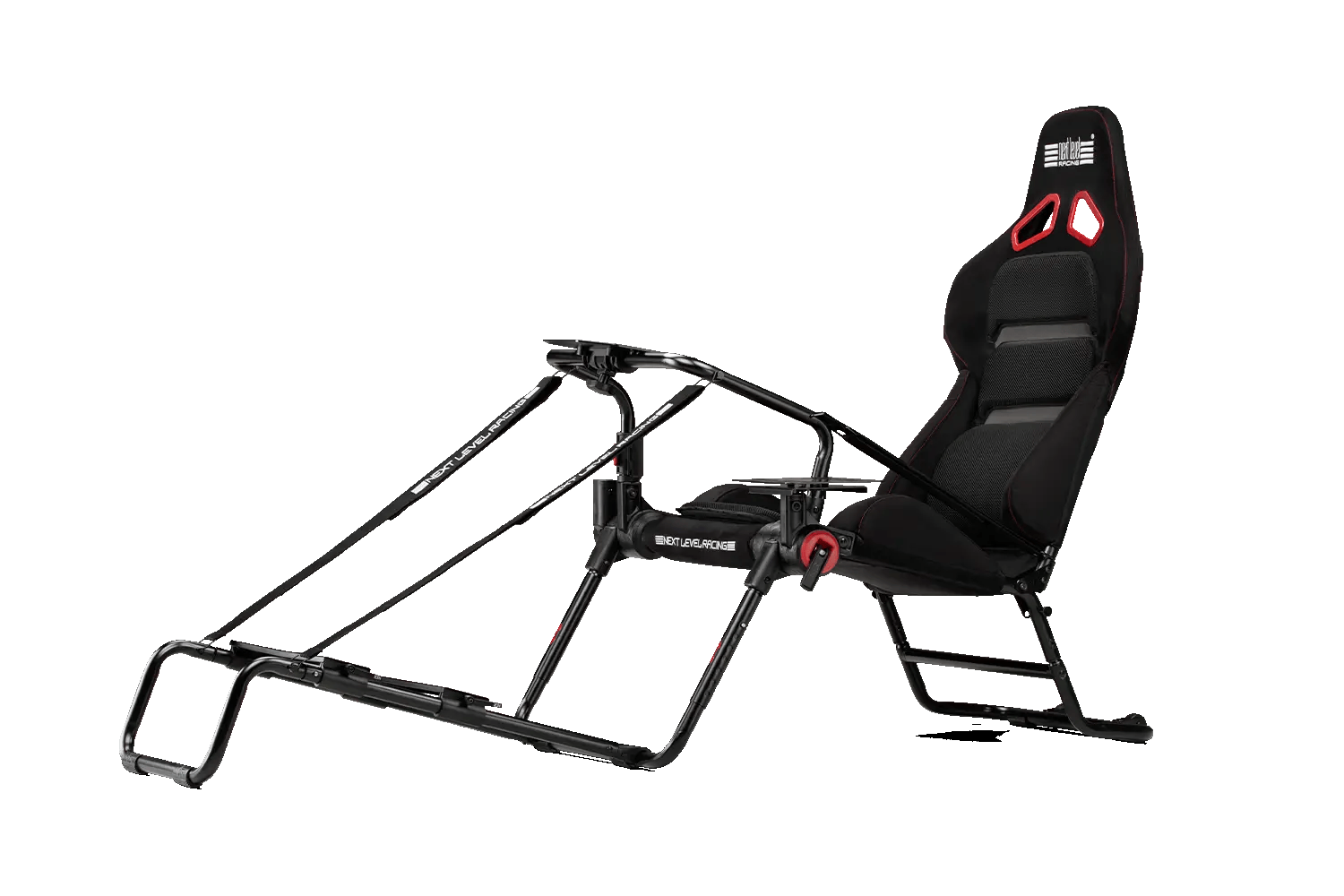

Introducing the Next Level Racing® GTLite Pro, a fantastic foldable racing cockpit ideal for sim racers with limited space. Not only is it designed for comfort, but it also provides a genuine racing experience without being overly expensive. Additionally, it’s durable enough for beginner direct-drive steering wheels up to 13NM.
Furthermore, its lightweight design allows for easy folding, making it simple to move and store with its built-in wheels. Also, the cockpit’s robustness, paired with its attractive appearance, makes it perfect for intense racing. Moreover, for added comfort, the seat is extra padded in key areas like your lower back, thighs, and shoulders, emulating the design of real GT racing seats.
Lastly, the GTLite Pro is uniquely fits with both a gear shifter and a handbrake simultaneously, offering a complete and affordable racing setup.
Variant

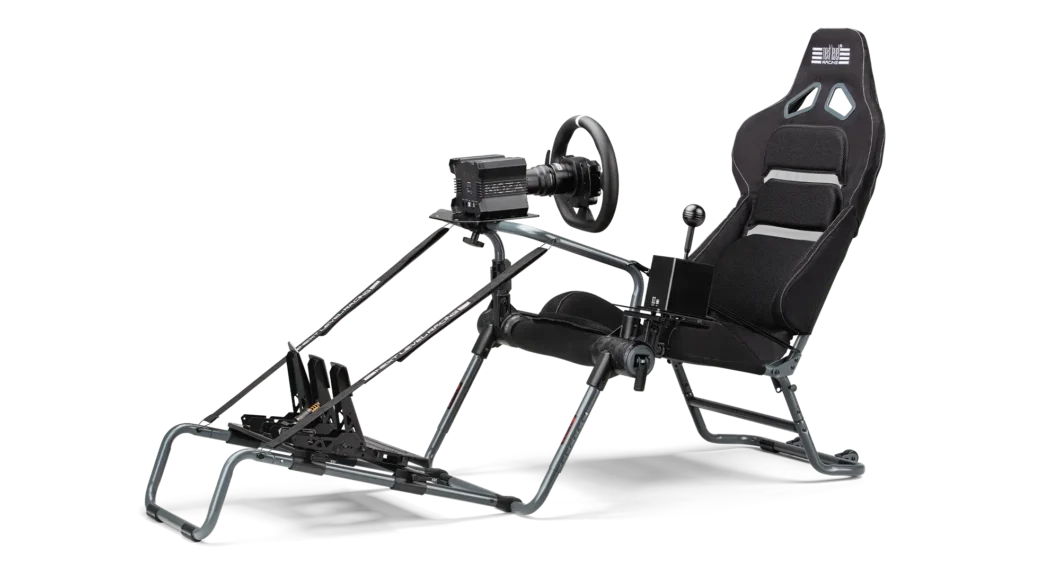

GTLite Pro - Carbon Grey Edition
Leading Features
- The GTLite Pro’s ergonomically designed seat provides great support for long racing sessions while staying cool, thanks to its breathable materials and mesh body. The foam-padded backrest and seat provide lumbar, shoulder, and thigh support, while the new reclining hinge design offers three different angles to choose from. In addition, inspired by GT-style racing seats, the shape of the seat provides a fitted body position, backed by side padding and shoulder wings, giving an improved experience. With five different height adjustments available, as well as the option to choose between a shallower or deeper seat by changing the fabric tension and modifying the sitting angle, the overall height of the seat can be changed to suit users of all sizes.
- The Next Level Racing® GTLite Pro cockpit is designed to fold with wheels and pedals attached, hence making it possible to pack away and store. With its two attached roller wheels, the cockpit can also be easily rolled around and stored, making it perfect for those with limited space who still want a fully engaging racing experience. Furthermore, the GTLite’s main adjustments are done without tools and can be made in just a few seconds, letting you fine-tune your setup easily.
- In addition, the GTLite Pro boasts exceptional strength for a foldable cockpit and adaptability with its updated hole pattern in the wheel plate to suit newer wheels on the market, 2 strengthening straps for extra wheelbase support, and compatibility with entry-level DD wheelbases up to 13 Nm. The wheelbase support is further enhanced with a sturdier assembly, updated mounting holes for compatibility with all major wheelbase manufacturing brands, easy angle adjustment, swiveling wheelbase frame, and adjustable wheelbase distance in 3 positions.
- The GTLite Pro racing cockpit offers shifter support with the inclusion of the Next Level Racing® Universal Handbrake plate, allowing the user to use both shifter and handbrake simultaneously, and is compatible with all major shifter manufacturing brands thanks to its updated mounting holes. The pedal support is also improved with wider pedal plates, compatibility with all major pedal manufacturing brands, improved pedal frame hinge design, and quick-release ratchet cams for easily sliding the pedals forward or backward in seconds.
Specifications
- Supported Height: 120 -210 cm or 4ft – 6ft 9 inches.
- Supported Max Weight: 150 kg or 330 lbs.
- Product Dimensions: (L) 170cm x (W) 87cm or (H) 105cm /(L) 70 inches x (W) 34.3 inches x (H) 41.3 inches)
- Box Dimensions: 78cm (L) X 77cm (W) X 26cm (H)/ 30.7 inches(L) x 30.3 inches (W) x 10.2 inches(H)
- Product Weight: 15.5 kg or 34.2 lbs
- Boxed Weight – 19 kg or 41.9 lbs
- Part Number – NLR-S031
Adjustability
Compatibility
- Next Level Racing Freestanding Keyboard & Mouse Stand
- Next Level Racing Freestanding Single and Triple Monitor Stands
- Next Level Racing Lite Freestanding Monitor Stand
- Next Level Racing Elite Free Standing Single Monitor Stand Black Edition
- Next Level Racing Elite Free Standing Triple Monitor Stand Black Edition
- Next Level Racing Elite Free Standing Single Monitor Stand Carbon Grey
- Next Level Racing Elite Free Standing Triple Monitor Stand Carbon Grey
- Next Level Racing Floor Mat
- Next Level Racing HF8 Haptic Feedback Pad
- Next Level Racing VR Headset and Cup Holder
Compatible Electronics
Wheelbases:
- Moza R5 / R9
- Fanatec CSL DD 5NM / 8NM
- Simagic Alpha Mini
- Logitech G29 / G923 / Pro (**Mounting holes align, though not recommended)
- Thrustmaster TS-PC / XW / T-GT II / T248 / T300 / T500 RS
NOT RECOMMENDED
- Fanatec DD1 / DD2
- Moza R12 / R16 / R21
- Simucube (With bottom mounting bracket)
- Simagic Alpha / Evo

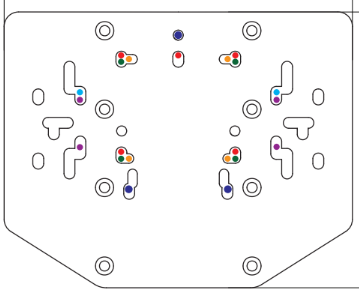

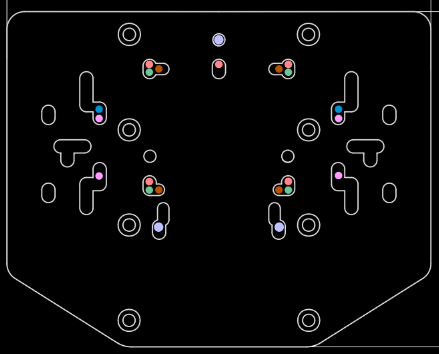

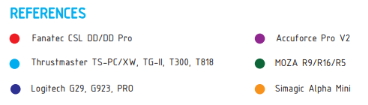

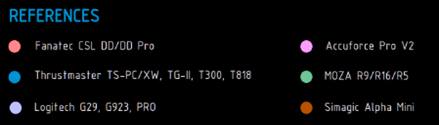

Mounting Plate Diagram
Shifters/Handbrakes:
- BJ Sim Handbrake
- BJ Sequential Shifter
- Fanatec Clubsport Shifter
- Logitech G29/923 Shifter
- Thrustmaster TH8A Shifter
- Thrustmaster TSS Handbrake
- Simworx Shifter
- PSL Sequential Shifter V2
- DSD Pro Sequential Shifter
- Aiologs Sequential Shifter

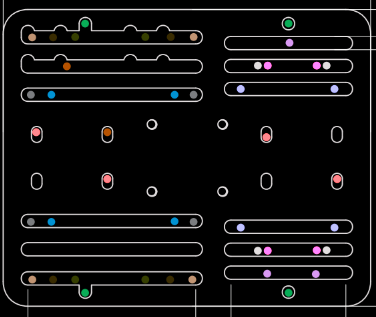

Mounting Diagram
Pedals:
- Fanatec CSL / CSL LC / Clubsport V3
- Thrustmaster T3PA / T3PM / TLCM
NOT RECOMMENDED
- Logitech Pro Racing Pedals
- Simagic P2000
- SRP – GT 3P / GTI 3P / Formula / Formula R
- SimForge Mark 1
- Venym Atrax / Black Widow / Special Flag / Base Plate
- Asetek Forte 2 Pedal / 3 Pedal / Invicta
- Ricmotech GTPro 3
- BJ Steel GT
- Simtrecs Pro Pedal GT
FAQs
-
Can this cockpit support a Direct Drive wheelbase?
Yes, it supports entry-level Direct Drive wheelbases up to 13Nm, such as the Moza R9. -
Is it foldable and portable?
Yes, the GTLite Pro folds easily and includes built-in roller wheels for transport and storage. -
What is the recommended height and weight range for users?
It’s suitable for users between 120 cm to 210 cm tall and up to 150 kg in weight. -
Does it come with a gear shifter mount?
Yes, it includes a shifter mount that can be positioned on either the left or right side.
Troubleshooting
Q: The back leg of the Cockpit won’t fit into the frame?
The back legs of the cockpit a large amount of force to align with the position of the seat base. We understand that it may be concerning to apply this force, but it is part of the product design to aid in stability. This is generally easier with another person.
Instruction Guides and Videos
GTLite Pro Assembly Instructions (PDF Version)
GTLite Pro Assembly Video (YouTube Video)
