Elite Free Standing Triple Monitor Stand – Black Edition (NLR-E036)

  • Updated


Product Overview

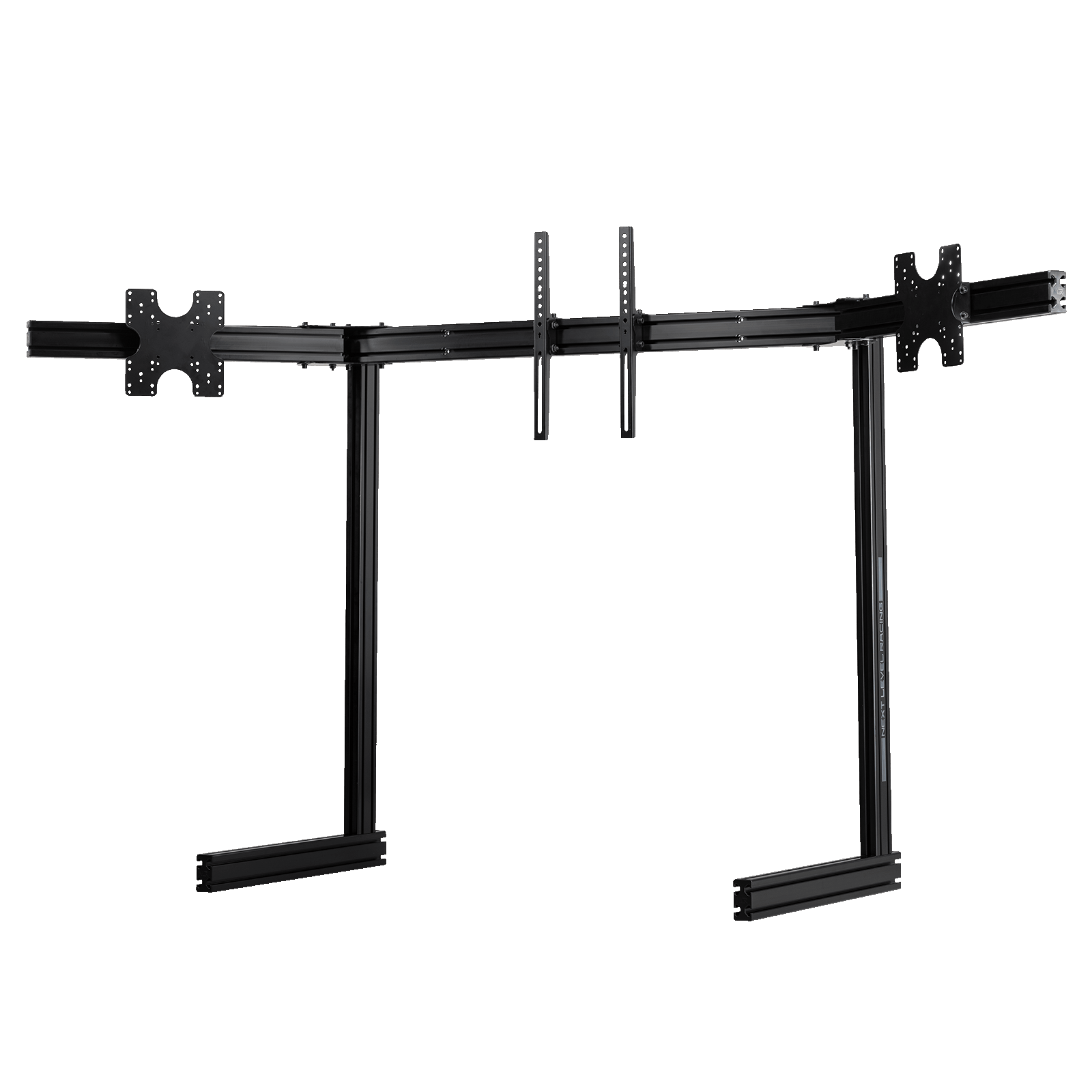

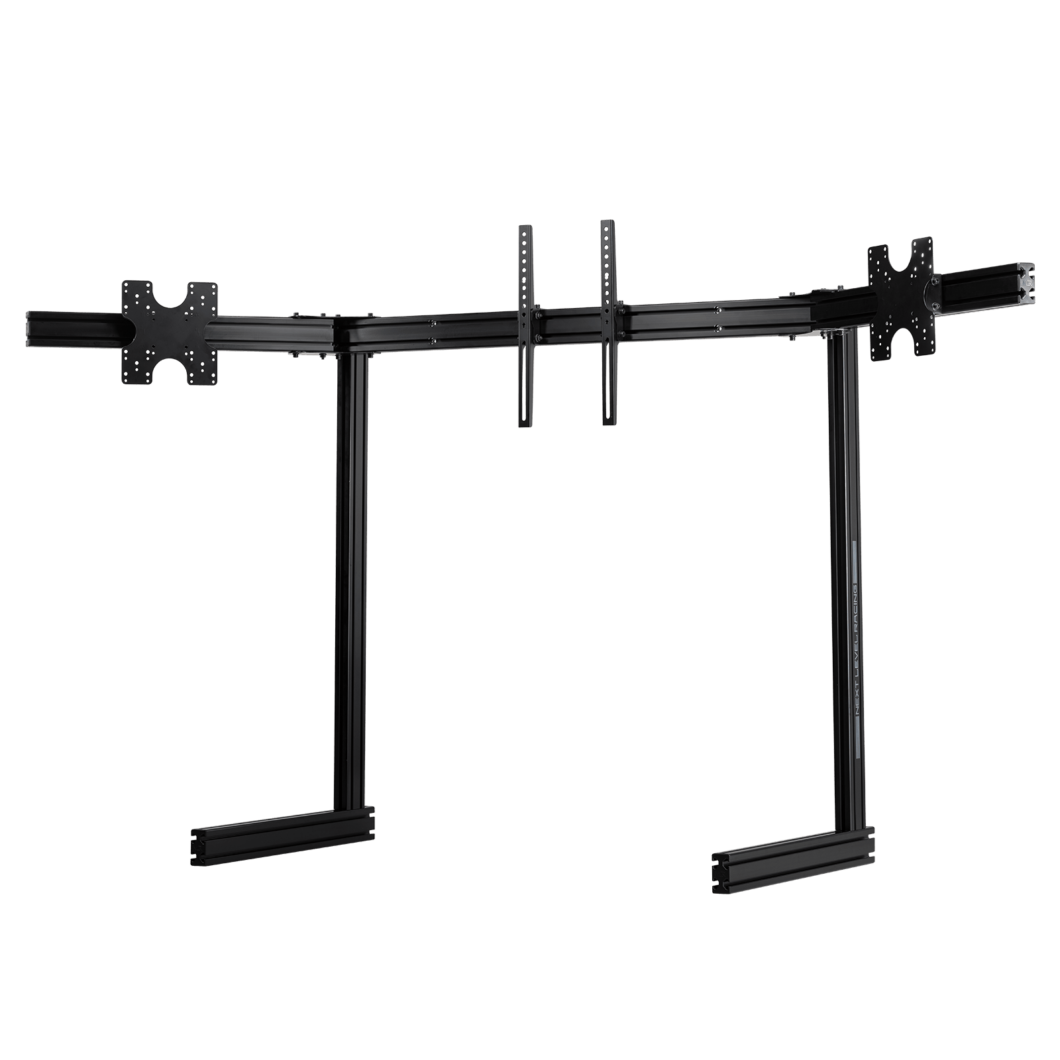

The Elite Freestanding Triple Monitor Stand – Black Edition is a high-end, all-in-one stand designed for sim racers demanding full surround screen immersion. Constructed from premium anodized aluminum, it supports three monitors (21″–43″ each), creating an ultra-wide and adjustable cockpit display setup.

Available Variants

This is a standalone product offered exclusively in the Black Edition. There are no alternate colors or versions listed for this model.

Specifications

  • Screen Support: Three monitors between 21″ and 43″, or an optional single 65″ screen.
  • Construction Materials: High-strength 6063 aluminum extrusion with a black anodized finish, paired with powder-coated hardware and cable-management clips.
  • VESA Mounting: Universal 3X VESA plates included (200x200mm, 100x200mm, 200x100mm, 150x150mm, 100x100mm, 75x75mm)

    Also, includes a universal mounting vertical VESA brackets supporting multiple patterns (400x400mm, 300x400mm, 300x300mm, 200x400mm, 200x300mm, v200x200mm, 100x200mm, 200x100mm, 150x150mm, 100x100mm, 75x75mm)
  • Width Adjustability: Uprights can span from 720 mm to 1240 mm to fit different cockpit widths.
  • Adjustability: Each screen offers up to 500 mm horizontal movement and up to 18° tilt; outer arms adjust up to 42° for enhanced immersion.
  • Dimensions (assembled): 71 cm (L) × 242.5 cm (W) × 140 cm (H).
  • Box Dimensions: 135 cm (L) × 28 cm (W) × 23.5 cm (H).


Adjustments

  • Screen Positioning: Fully adjustable for height, width, angle, and tilt to create seamless and immersive displays.
  • Cockpit Fit: Adjustable width allows screens to be positioned close for narrower rigs or brought back for wider platforms like Traction Plus.

FAQ

  • What monitor configuration does this stand support?
    This setup is ideal for high-end triple screen configurations, supporting three monitors ranging from 27 to 43 inches. The centre VESA uprights accommodate mounting patterns from 75mm (H) x 75mm (W) up to 800mm (H) x 400mm (W), while the two outer star-pattern VESA plates support patterns from 75mm x 75mm to 200mm x 200mm. The mount allows for fine adjustment with a central tilt angle of 16 degrees, outer monitor tilt angle of 18 degrees, and a horizontal adjustment range of 475mm.
  • Is it compatible with curved monitor setups?
    Yes, the arms are angle-adjustable to support curved monitor layouts with precise and seamless alignment. For optimal compatibility, curved monitors should have a curvature no greater than 1500R.
  • Does it require an Elite cockpit to work?
    No, it’s completely free-standing and can be used with any cockpit or desk setup.
  • Is there a central alignment feature?
    Yes, it includes precise adjustment rails for center alignment across all three screens.

Compatibility

  • Fully compatible with all Next Level Racing cockpits and wheel stands.
  • Adjustable width also allows usage with wider or third-party cockpits, increasing flexibility.


Instructions Guide & Video Links

Purchase Links USA and UK

  • Elite Freestanding Triple Monitor Stand – Black Edition — Buy Here
