Product Overview

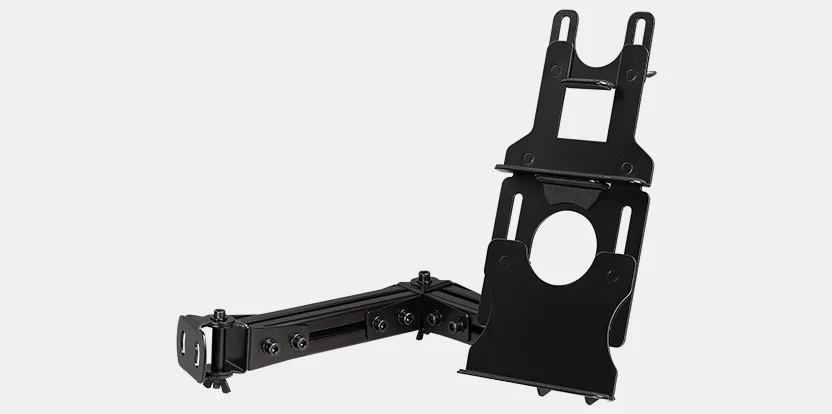

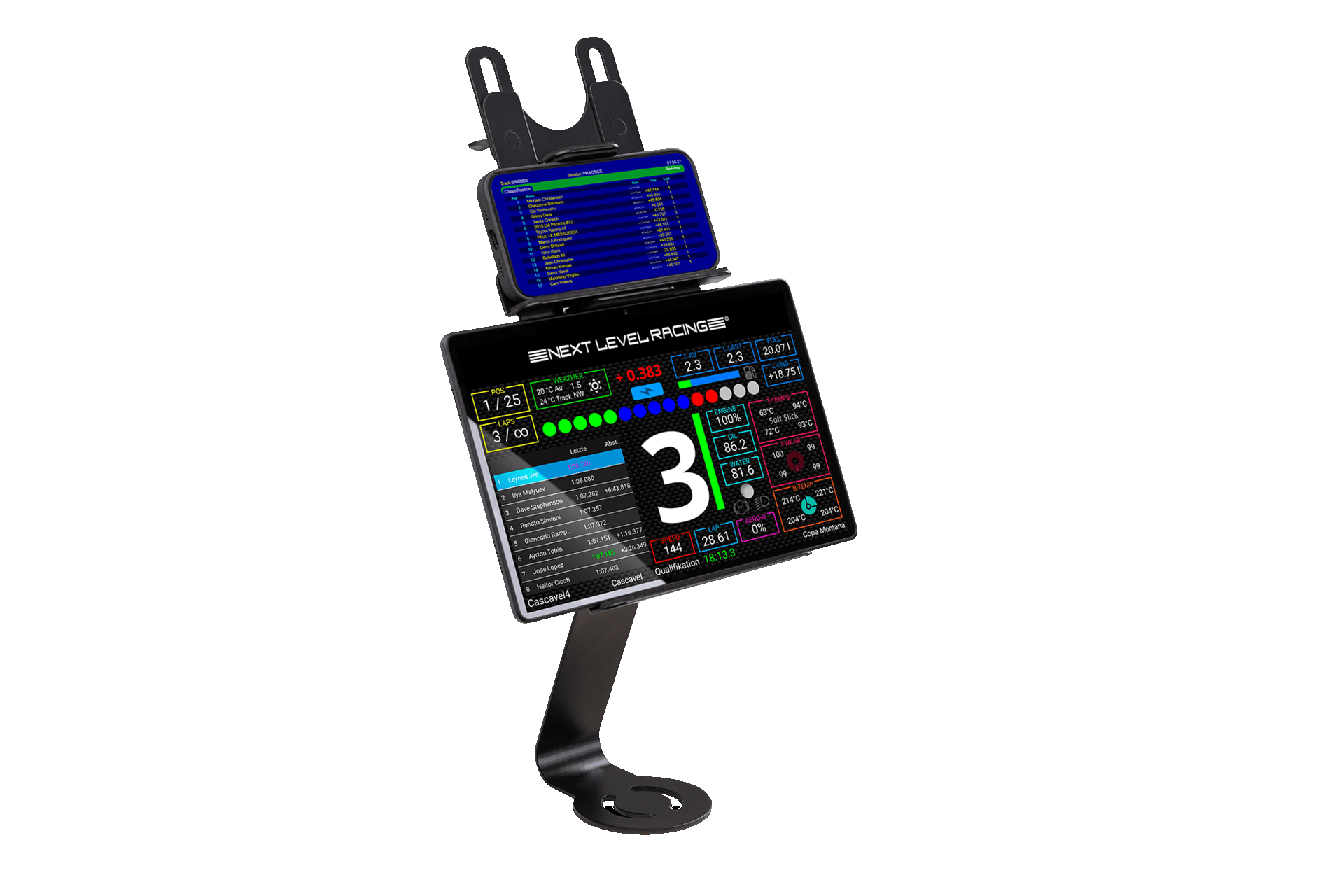

The Elite Tablet & Button Box Mount Add‑On (NLR‑E020) from Next Level Racing is a versatile accessory that enables sim racers to mount a tablet or button box within ergonomic reach. Built from robust black anodized aluminum and carbon steel, it attaches to Elite Series cockpits or many Standard Aluminum profile cockpits. Offering multi-angle, multi-axis adjustability for the ideal viewing and interaction position.
Specifications
| Feature | Details |
|---|---|
| Mount Types | Multiple: cockpit upright, wheel plate, or standard side-mount configuration |
| Tablet Size Compatibility | 120 mm – 225 mm height bracket support |
| Button Box Compatibility | 35 mm – 155 mm height bracket support |
| Motion Range | Tilt: Up 90° / Down 15° (105°); Arm rotation: ±80°; Wheel plate pivot: ±60° tilt / Pivot ±140° |
| Boxed Dimensions | 55.5 × 33.5 × 14.1 cm; Weight: ~4.5 kg |
Adjustability & Features
- Double-jointed arm allows fine-tuned distance and spatial positioning.
- Three lateral axes and a vertical pivot for precise orientation and usability.
- Multiple mounting options: choose from upright frame, wheel plate, or other available angles.
- Built-in cable management via integrated clips.
Frequently Asked Questions
Q: What devices are compatible with this mount?
A: The mount supports a wide range of devices, including button boxes with heights from 35mm to 155mm and tablets ranging from 120mm to 225mm in height. This ensures compatibility with most standard-sized tablets and button boxes.
- Is the mount adjustable for optimal positioning?
Yes, the mount offers extensive adjustability. It features a double-jointed configuration, allowing for precise positioning of your device. The mount provides: - 105° of tilt adjustment (90° upward, 15° downward)
- 160° of arm rotation (80° clockwise and counterclockwise)
- 140° of pivot adjustment (90° upward, 50° downward)
These adjustments enable users to position their tablet or button box for optimal visibility and accessibility.
Q: Which cockpits is this mount compatible with?
A: The Elite Tablet/Button Box Mount Add-On is designed to be compatible with the Next Level Racing® Elite Series cockpits, including the F-GT Elite and GTElite. It can be mounted to any existing Elite series cockpit and other aluminum cockpits, based on user preference and the most realistic positioning.
Compatibility
- NLR Elite Cockpits
- Other Cockpits: Compatible with other aluminum-profile cockpits utilising M8 T-Nuts
Troubleshooting
Q: Mount is loose or moves under movement.
A: Tighten swivel joints and confirm T-nuts are fully seated in extrusion (on cockpit frames).
Q: Device doesn’t fit or align properly.
A: Adjust brackets within supported size ranges and use provided hardware to secure fit.
Instructions Guide & Video Links
- PDF Manual: Instructions Guide
- Installation Video: Video Link
