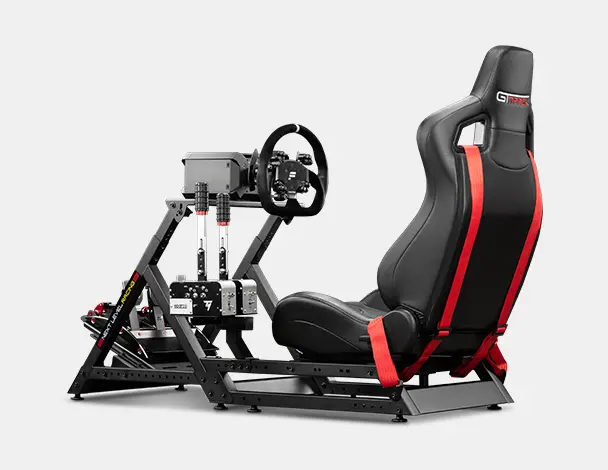

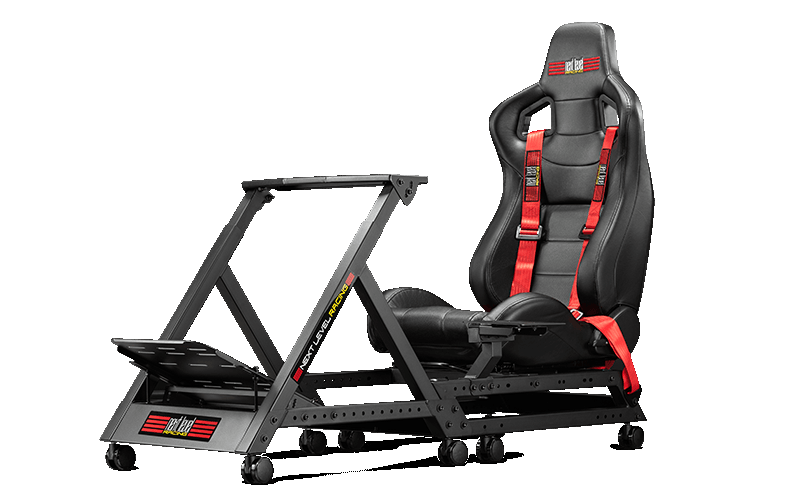

GTTrack Racing Simulator Cockpit (NLR-S009)

  • Updated


Product Overview:


You asked, we listened. We used 8 years of customer feedback to give our customers all the features they wanted on a racing cockpit. The Next Level Racing® GTtrack is the ultimate cockpit for serious sim racers looking for rigidity, complete adjustability and a true race car seating position. The GTtrack’s design was inspired by feedback from professional drivers and some of the world’s fastest eSports drivers to give you every feature required for serious sim racing. The GTtrack is the strongest, most feature-packed cockpit to hit the market, setting a new benchmark for racing simulation.



Leading Features:

  • The complete rigidity of the GTtrack allows it to support direct drive wheels and professional pedal sets as well as being compatible with all major wheels and pedals including Thrustmaster®, Logitech® and Fanatec®.

  • Combining carbon steel with the highest manufacturing methods of laser cutting and robotic welding, the GTtrack is not only built to be strong and rigid but also to be adjustable for all. Users are able to adjust the distance and angle of the pedals to ensure an accurate representation of a race car. The wheel plate allows both height and angle adjustment, completed with seat distance and angle adjustment to ensure an immersive racing experience.

  • The GTtrack cockpit is the used by Project Cars 2 World Championship winner Kamil Pawlowski. Next Level Racing® cockpits are also used by professional drivers such as Red Bull Racing®’s Mad Mike Whiddett, GTacademy® world champion Matt Simmons, professional Rally Driver Ricardo Costa Jnr & many more.
    Kamil “Khaki” Pawlowski- Project Cars 2 World Champion 2019

  • The Gttrack is built with motion in mind. The Next Level Racing® Motion Platform V3 bolts directly onto the GTtrack with only about 10 minutes of assembly time required. The GTtrack is also completely compatible with the Next Level Racing® Traction Plus Motion Platform for ultimate simulation immersion.

  • The GTtrack can easily be converted to a flight cockpit with the Next Level Racing® Combat flight Pack. A design that is suited for any flight user that is wanting a change in scenery from the race tracks to explore the skies. The four point harness, creates an immersive flight experience for any flight enthusiast.

Specifications:

  • Supported Height: 120 -210 cm or 4ft – 6ft 9 inches
  • Supported Max Weight: 150 kg or 330 lbs
  • Product Dimensions: 138 x 120 x 55 cm or 54 x 47 x 21 inches
  • Product Weight: 48kg
  • Boxed Dimensions: 100x61x59cm
  • Boxed Weight: 60kg

Adjustability:
Gt Track Adjustability 1600x1200 Website Version

FAQ:

Q: Is the GTtrack cockpit compatible with Direct Drive wheels?
Yes, the GTtrack supports major Direct Drive wheelbases including Fanatec DD1/DD2 and Simucube systems.

Q: What seat comes included with the GTtrack?
It features a premium racing seat with built-in lumbar support and a seat slider for easy position adjustment.

Q: Can I mount a shifter and handbrake on this cockpit?
Yes, the GTtrack includes a multi-position shifter and handbrake mount that can be attached to either side.

Q: What are the assembled dimensions of the GTtrack?
The GTtrack measures approximately 138 cm (L) x 55 cm (W) x 120 cm (H), and suits a wide range of setups.

Compatibility:

  • Next Level Racing® ERS3
  • Next Level Racing® ERS4
  • Next Level Racing® ERS5
  • Next Level Racing® PRS1
  • Next Level Racing® PRS2
  • Next Level Racing® ES1 (*Universal Seat Brackets required)
  • Next Level Racing® ES2 (*Universal Seat Brackets required)
  • Next Level Racing® EFS (*Can mount, though ergonomics unoptimised)
  • Next Level Racing® Universal Seat Brackets
  • Next Level Racing® Combat Flight Pack
  • Next Level Racing® Round Tube Freestanding Single and Triple Monitor Stand
  • Next Level Racing® Freestanding Keyboard and Mouse Tray
  • Next Level Racing Elite Free Standing Single Monitor Stand - Black Edition
  • Next Level Racing Elite Free Standing Triple Monitor Stand - Black Edition
  • Next Level Racing Elite Free Standing Quad Monitor Stand - Black Edition
  • Next Level Racing® Floor Mat
  • Next Level Racing® Premium XL Floor Mat
  • Next Level Racing® HF8 Haptic Feedback Gaming Pad
  • Next Level Racing® HF8 Pro Haptic Feedback Gaming Pad

Wheelbases:

Moza R9 / R12
FANATEC CSL DD 5NM / CSL DD 8NM
Simagic Alpha Mini / Alpha
Logitech G25 / G27 / G29 / G920 /G923
Thrustmaster T500 RS / TGT / TGT-II / TSPC / TX / T248


CAN MOUNT BUT NOT RECOMMENDED

Moza R16
Moza R21
Moza R21 Ultra
Moza R25 Ultra

Fanatec DD1 / DD2



Shifters/Handbrakes:

Fanatec Clubsport Shifter
Logitech G29/923 Shifter
Thrustmaster TH8A Shifter
Thrustmaster TSS Handbrake/Shifter
Heusinkveld Sim Shifter
Simworx Shifter
PSL Sequential Shifter V2
DSD Pro Sequential Shifter
BJ Sequential Shifter
Aiologs Sequential Shifter

Pedals:

Fanatec CSL
Fanatec CSL Elite
Fanatec ClubSport V3
Thrustmaster T3PA
Thrustmaster T300RS
Thrustmaster TCLM
Moza R5 Pedals
Moza Racing CRP
Moza Racing SR-P
Logitech G25
Logitech G27
Logitech G29
Logitech G PRO
