Next Level Racing – Elite Motion Adaptor Upgrade Kit:
Overview

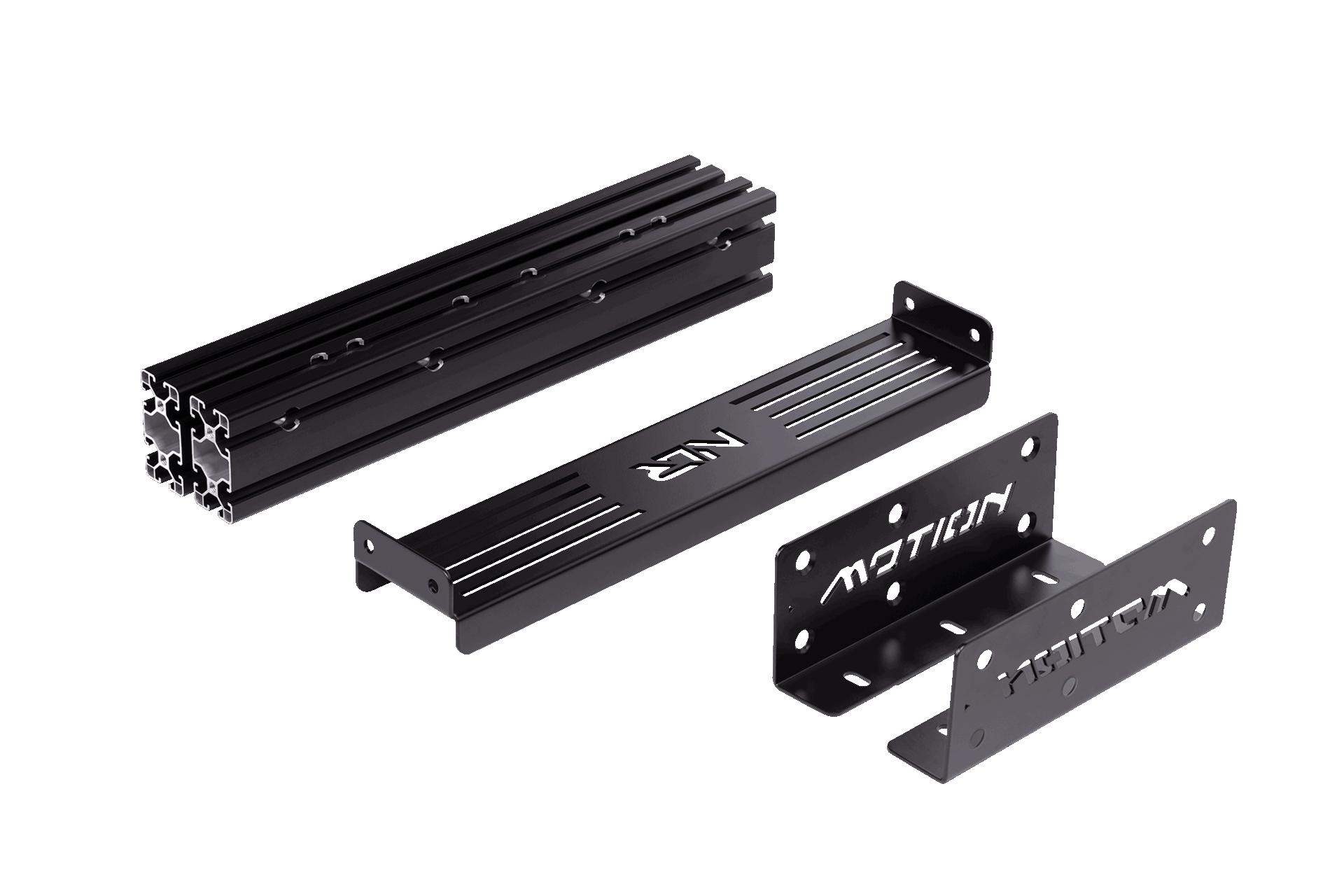

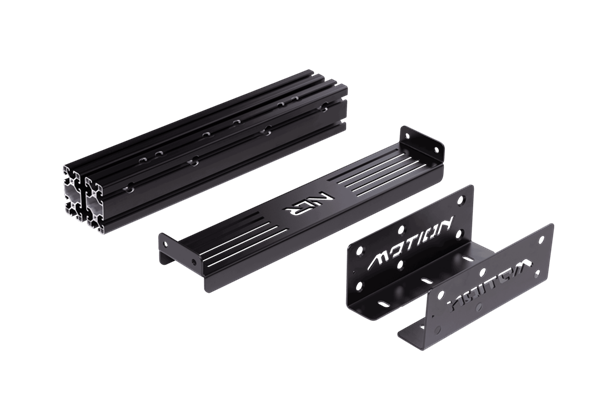

The Next Level Racing® Elite Motion Adaptor Upgrade Kit is a sim racer’s step towards full immersion, making the GTElite and Elite Lite cockpit variants compatible with the Next Level Racing® Motion V3 and Traction Plus Platform. With a combination of precision CNC-machining and laser cutting manufacturing process, as well as anodised and powder coat finish
Key Features:
- Pre-drilled and machined for streamlined installation.
- Compatible with the Next Level Racing® Elite series cockpits*, Motion Platform V3, and Traction Plus Platform.
- Constructed with premium carbon steel and aluminum extrusion, finished with high quality powder coating and anodized aluminum parts.
Specifications:
- Supported Max Weight: 150 kg or 330 lbs
- Product Dimensions - Motion Platform V3 Adaptor: (25cm x 5cm x 9.5cm or 9.8inches x 1.9inches x 3.7inches)
- Product Dimensions - Traction Plus Platforms Dimension: (8cm x 4cm x 48.4cm or 3.1inches x 1.6inches x 1.2inches)
- Boxed Weight: 6.5kg or 14.3 lbs
Compatibility:
Designed to enable Motion V3 Compatibility with the below Next Level Racing Cockpits:
- GTElite and GTElite Lite
- F-GT Elite Lite
Designed to enable Traction Plus Compatibility with the below Next Level Racing Cockpits:
- F-GT Elite Lite
- F-GT Elite 160 Edition
- GTElite and GTElite Lite
Installation Resources:
-

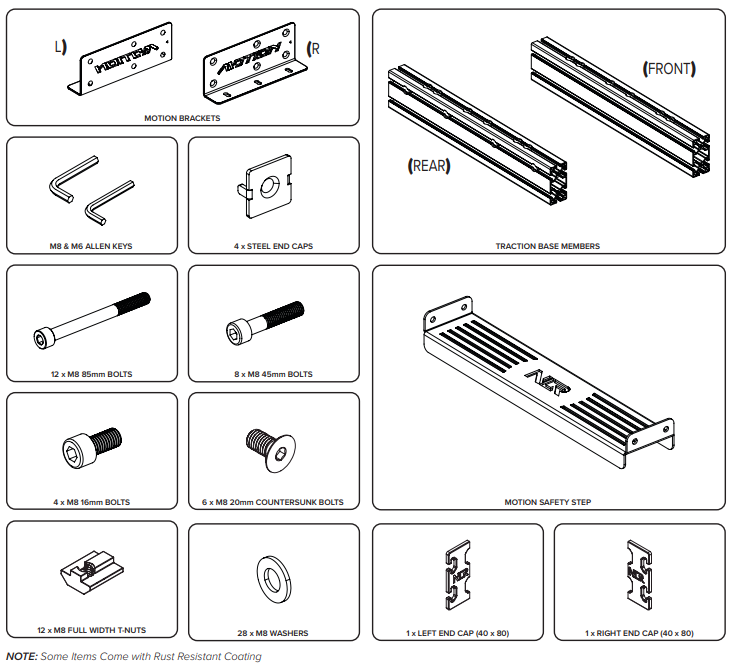

Official Manual (PDF) – includes detailed instructions for installation, for both the Motion V3 and Traction Plus:
[Download Manual Here] -
Installation Video – Follow along with the below video for instructions to install this accessory onto your Elite Cockpit:
[Installation Video]
FAQ
-
Do I need to drill into my cockpit to install this?
All Elite Series cockpits have pre-drilled holes/channels to accept this adapter kit with no modifications required. -
Can this be used with Motion Plus?
This adapter kit is designed only for the Motion Platform V3 and Traction Plus. Compatibility with the Motion Plus may require our Motion Adaptor Frame. -
What materials are used in the construction of the kit?
The components are constructed from premium carbon steel and aluminum extrusion, finished with high-quality powder coating and anodized aluminum parts for durability and aesthetics.
Troubleshooting Highlights
-
Adapter not lining up with cockpit base extrusion channels:
When installing the Motion V3 Platform with the included “L-Brackets” do not tighten these fully into the Motion V3 Platform, then align the brackets with the T-Nuts in the top channel and tighten partially. Once tightened, gradually tighten all bolts simultaneously. -
V3 Platform sits to high:
If you find the Motion V3 Platform sitting too high; please follow step 13a in the Instruction Manual, this lowers the V3 by inverting the “L-Brackets”.
