Product Overview:

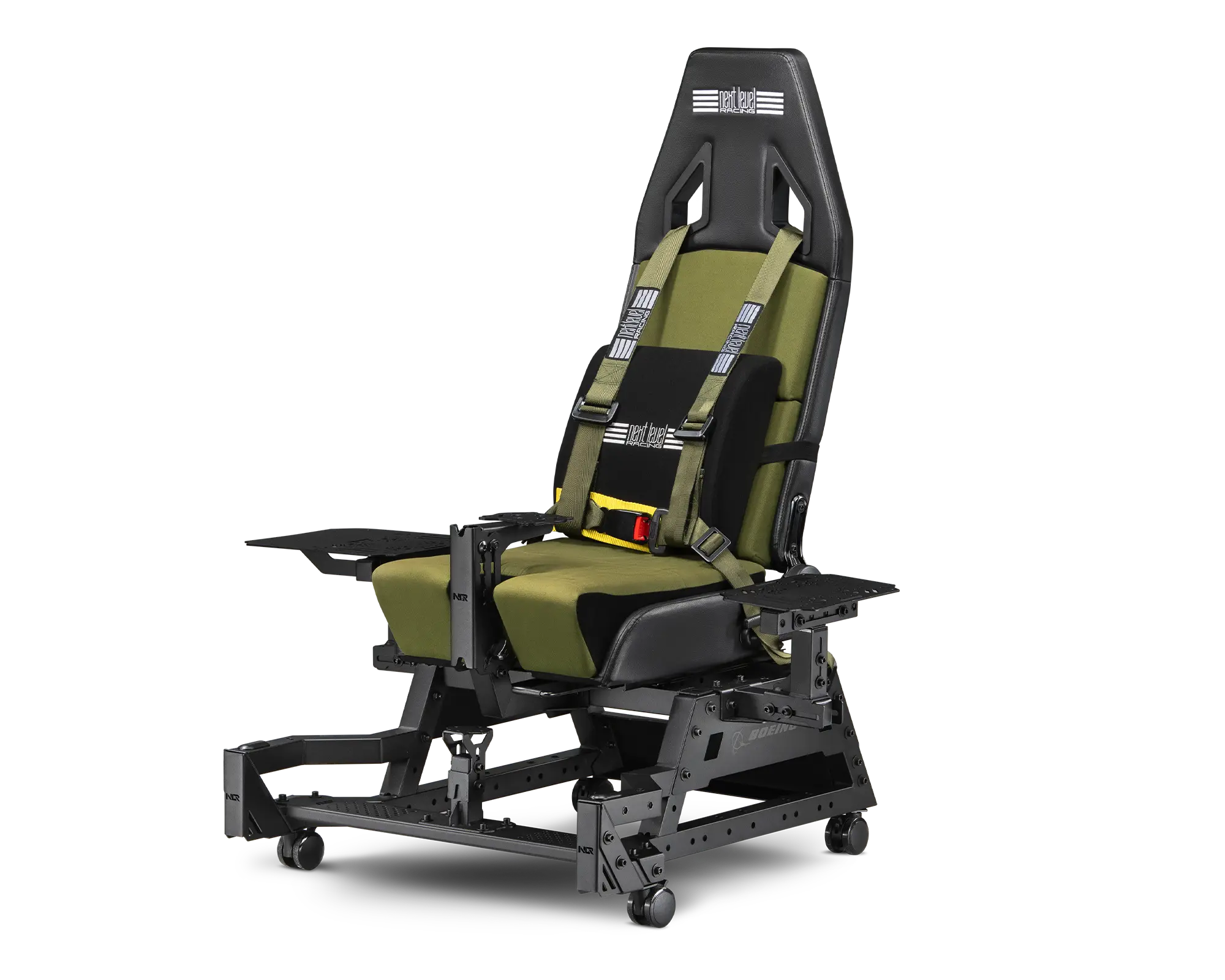

The Flight Seat Pro – Boeing Military Edition is a premium, officially Boeing‑licensed cockpit seat tailored for serious flight simulation. Built on a robust wide‑frame design, it’s engineered to enhance immersion with MIL‑inspired ergonomics while offering modular versatility, suitable for commercial, general aviation, space, helicopter, and military flight configurations.
Available Variants:
This is a standalone seat designed exclusively as the Boeing Military Edition. It can be upgraded into a full cockpit when combined with the Flight Stand Pro to form the Flight Simulator Pro.
Specifications:
The seat includes these key features:
- Supported Height: 120 -210 cm or 4ft – 6ft 9 inches
- Supported Max Weight: 150 kg or 330 lbs
- Product Dimensions: (L) 88 cm x (W) 115 cm or (H) 123cm /(L) 34.6 inches x W 45.3 inches x H 48.4 inches)
- Box Dimensions: 87.5 cm (L) X 54cm (W) X 49cm (H)/ 34.4 inches(L) x 21.3 inches (W) x 19.3 inches(H)
- Product Weight: 43.1 kg or 96 lbs
- Boxed Weight – 50 kg or 111 lbs
- Part Number – NLR-S039
Adjustments:
The seat supports extensive ergonomic customization:
- Center HOTAS mounting pole: adjustable in height (80 mm) and angle (up to 74°) for precise positioning
- Flight plate arms: adjustable in both vertical and lateral directions, and can be mounted top or bottom of the frame to accommodate both general flight and helicopter setups
FAQ:
-
What type of flight simulation is this seat ideal for?
The Flight Seat Pro Boeing Military Edition is designed for military flight simulations, offering a center-mounted HOTAS setup and compatibility with various flight controls. -
What flight hardware is it compatible with?
It supports a wide range of flight peripherals from brands like Thrustmaster, VPC Mongoos, and WINWING. -
Is the seat adjustable for different user preferences?
Yes, it features adjustable flight plates and a center HOTAS mounting pole with height and angle adjustments. -
Is it compatible with motion platforms?
Yes, the seat is compatible with Next Level Racing® Motion V3 platform, enhancing the flight simulation experience.
Compatibility:
- Works with major peripheral brands, including Thrustmaster®, VPC Mongoos, WINWING, and others, via versatile flight plate compatibility.
- Fully motion-platform compatible—but requires integration with the Flight Stand Pro and motion hardware (Motion Plus Platform or Motion Platform V3) to achieve full motion capabilities.
-
Ecosystem compatibility: Fully integrates with motion platforms and other NLR accessories including:
- Next Level Racing® Flight Stand Pro
- Next Level Racing® Motion Plus Platform (Please note the Flight Seat Pro needs to be connected to Flight Stand Pro for Motion compatibility and usage)
- Next Level Racing® Motion Platform V3 (Please note the Flight Seat Pro needs to be connected to Flight Stand Pro for Motion compatibility and usage)
- Next Level Racing® Free Standing Keyboard and Mouse Stand
- Next Level Racing® Elite Free Standing Monitor Stand
- Next Level Racing® Elite Quad Monitor Stand
- Next Level Racing® Floor Mat
- Included Flight Plate & Mouse Plate Compatibility:
- Thrustmaster HOTAS Warthog Stick
- Thrustmaster HOTAS Warthog Throttle
- Thrustmaster TCA Quadrant Airbus Edition Throttle
- Thrustmaster TCA Quadrant Airbus Edition Sidestick
- Thrustmaster TCA Throttle Quadrant Boeing Edition
- Thrustmaster T16000M FCS HOTAS
- Thrustmaster TWCS Throttle
- Virtual Fly TQ6
- Virtual Fly TQ3
- Virtual Fly V3rnio
- Logitech X52 HOTAS
- Logitech X52 Throttle
- Logitech G X56 HOTAS
- Logitech G X56 Throttle
- Logitech G Pro Throttle
- Winwing Gemini Throttle
- VPC Mongoos T-50CM2 & T-50CM3
- VPC Warbird HOTAS
- VKB Gunfighter Pro MKII HOTAS
- Many other Brands
- Included HOTAS Plate Compatibility:
- Thrustmaster HOTAS Warthog Stick
- WINWING Super Libra /Orion 2
- VPC Mongoos T-50CM2
Instructions Guide & Video Links:
- Product Assembly video: [Watch YouTube Video]
- Product Assembly Instructions guide: [PDF Version]
