Product Overview

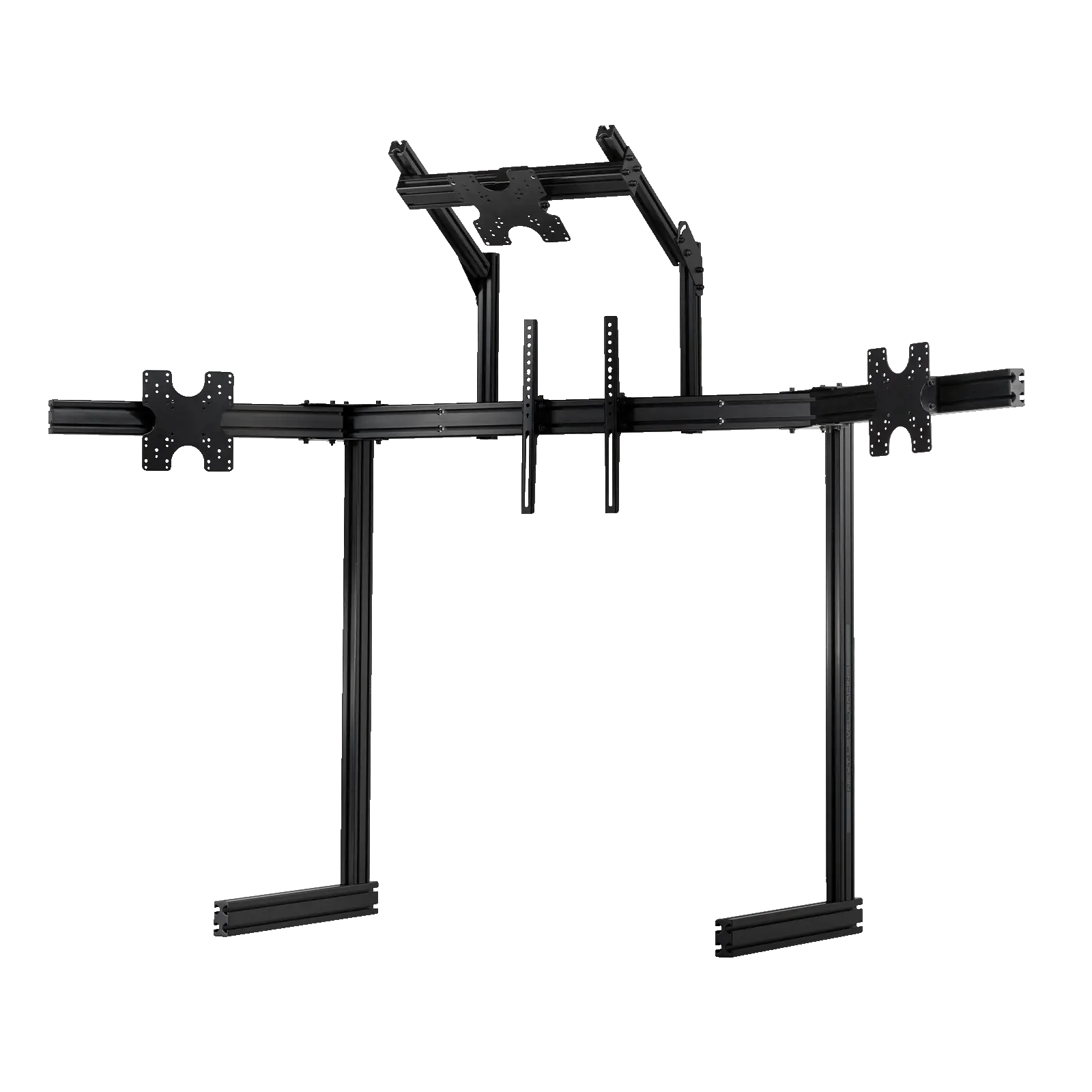

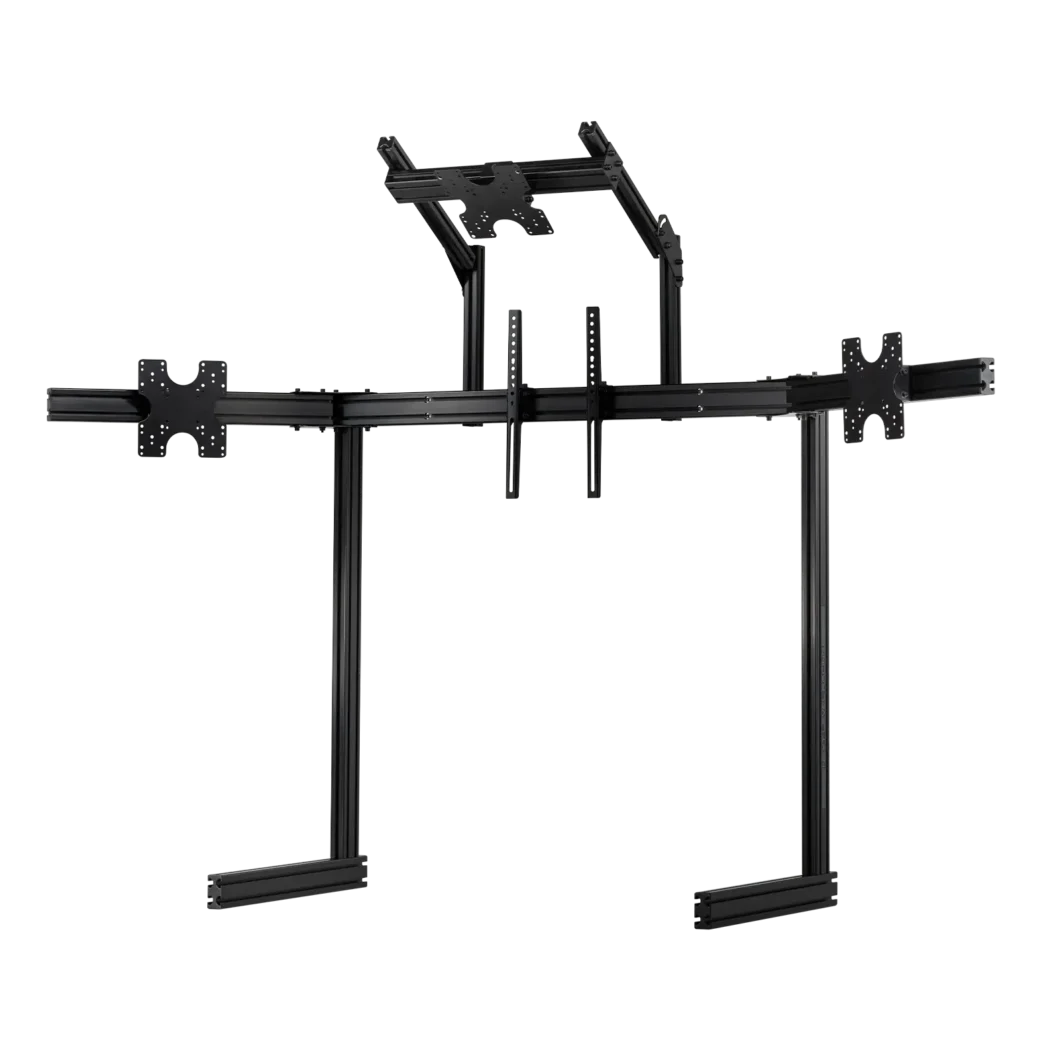

The Elite Quad Monitor Stand – Black Edition is a premium, freestanding monitor mount designed for elite sim racers and virtual pilots. It enables immersive multi-monitor setups—featuring three surround displays plus one overhead screen—for unmatched field-of-view realism and versatility.
Available Variants
This is offered as a standalone model: Elite Quad Monitor Stand – Black Edition (NLR-E037). There are no alternate colors or package variants presented at this stage.
Specifications
| Feature | Details |
|---|---|
| Supported Screen Sizes | 21″ to 43″ monitors, up to 4 in total: three surround + one overhead |
| Construction Materials | High-grade 6063 aluminum extrusion with anodised black finish, plus powder-coated carbon steel components |
| VESA Compatibility | Universal 3 mm thick plates supporting: 75×75, 100×100, 150×150, 200×100, 100×200, and 200×200 mm. Includes Vertical VESA brackets as well which support: 400x400mm, 300x400mm, 300x300mm, 200x400mm, 200x300mm, v200x200mm, 100x200mm, 200x100mm, 150x150mm, 100x100mm, 75x75mm |
| Width Adjustability | Adjustable between 720 mm and 1240 mm—compatible with all NLR cockpits, wheel stands and other wider bases cockpits |
| Adjustable Parameters | Height, width, angle, and tilt for most branded monitors |
| Dimensions | Assembled size: 71 cm (L) × 242.5 cm (W) × 200 cm (H) (28″ × 95.5″ × 78.7″) |
| Boxed Dimensions | 135 cm (L) × 40 cm (W) × 24.5 cm (H) (14.4″ × 13.3″ × 7.1″) |
| Weight | Product: ~31.3 kg (69 lb); Boxed: ~33.5 kg (73.9 lb) |
Adjustments
- Height, Width, Angle & Tilt: Fine-tune monitor orientation for optimal visibility.
- Freestanding Design: Allows user preference in distance from screens.
-
Cable Management: Included custom clips maintain tidy wiring.
FAQ
What is the purpose of this stand?
To offer a high-end mounting solution for four monitors surrounding the user (three in front, one overhead), elevating immersion in sim racing and flight setups.
Is additional hardware required?
No—this is a standalone monitor solution that does not need extra components to support a quad-monitor configuration.
Which monitor sizes and VESA patterns are supported?
Compatible with 21″ to 43″ screens. VESA Universal 3 mm thick plates supporting: 75×75, 100×100, 150×150, 200×100, 100×200, and 200×200 mm.
Includes Vertical VESA brackets as well which support: 400x400mm, 300x400mm, 300x300mm, 200x400mm, 200x300mm, v200x200mm, 100x200mm, 200x100mm, 150x150mm, 100x100mm, 75x75mm
How adjustable is it?
Offers customizable vertical adjustment, side-to-side width tuning (720–1240 mm), as well as tilt and angle adjustments for each screen.
Compatibility
- Cockpit Compatibility: Compatible with all Next Level Racing cockpits and wheel stands, with width adjustments also supporting other brands and wider setups.
Instructions Guide
- Instructions guide: Assembly guide link here
Purchase Links USA
- Elite Quad Monitor Stand – Black Edition — Buy Here
