Product Overview

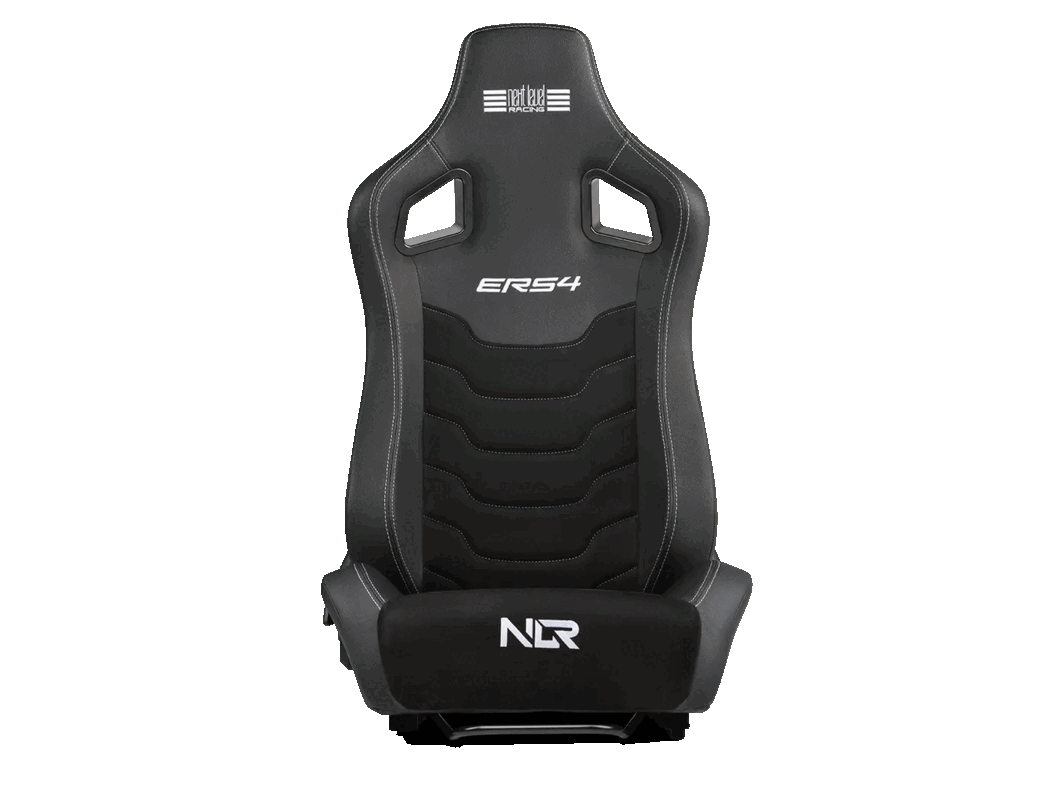

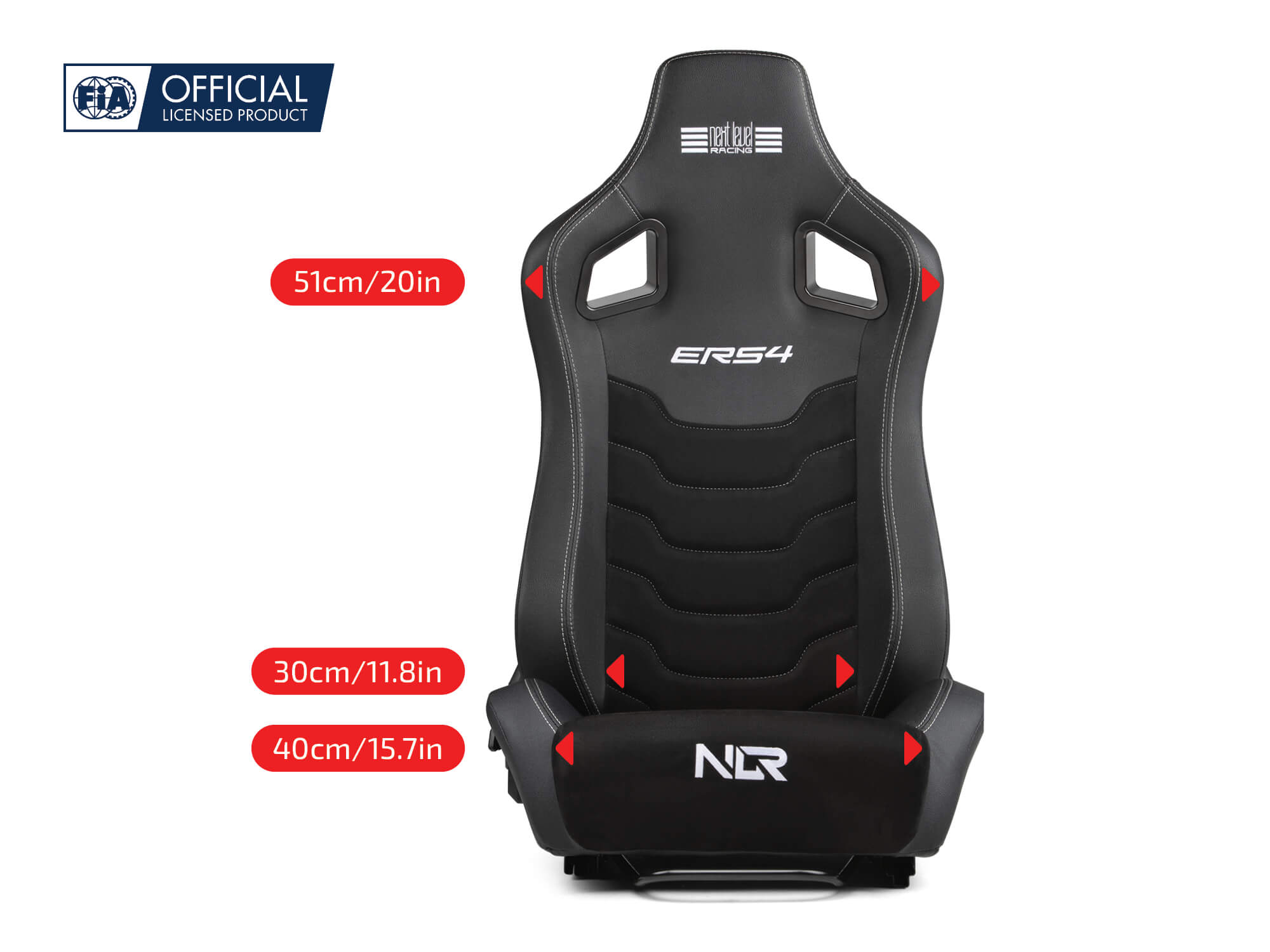

The ERS4 Elite Reclining Seat is an FIA Official Licensed Product, developed in collaboration with the FIA to meet the highest standards of motorsport simulation equipment. Available in two editions:
- PU Leather & Suede Edition: Combines luxury and durability for a sleek, professional look.
- Fabric & SIMAERO Mesh Edition: Features breathable SIMAERO Mesh fabric for superior airflow and comfort during extended racing sessions.
Leading Features
- The ERS4 Elite Reclining Seat is constructed to withstand the demands of rigorous racing. The double recliner mechanism provides stability, even for users with heavy-duty pedals. The seat’s open-feel design accommodates a wide range of users, offering a comfortable and adaptive experience.
- The cold-molded foam construction provides unmatched support and durability, while the ergonomic design ensures lumbar support for optimal posture. With its breathable materials, the seat stays cool, even during prolonged use.
- The ERS4 Elite Reclining Seat is an FIA Official Licensed Product, developed in collaboration with the FIA to meet the highest standards of motorsport simulation equipment. This partnership supports the FIA’s global initiatives to advance esports and motorsport talent development. Representing excellence in design and performance, the ERS4 is a testament to Next Level Racing’s commitment to providing professional-grade solutions for sim racers worldwide.
Specifications
| Feature | PU Leather & Suede Edition | Fabric & SIMAERO Mesh Edition |
|---|---|---|

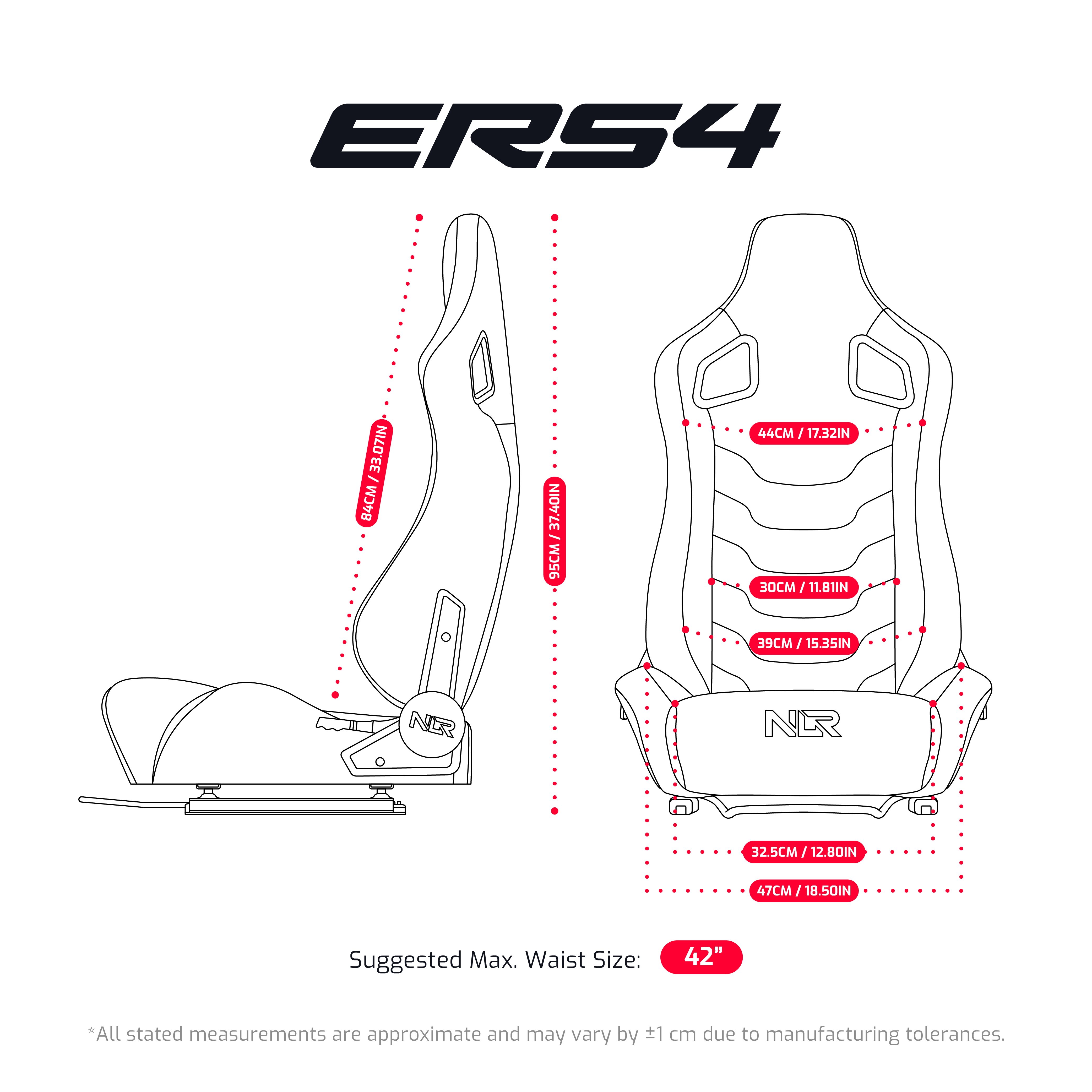

| Dimensions (L x W x H) | 63 x 58 x 98.6 cm | 63 x 58 x 98.6 cm |
| Upholstery | PU Leather & Suede | Racing Fabric & SIMAERO Mesh |
| Recliner Mechanism | Double Recliner | Double Recliner |
| Weight Capacity | Up to 150 kg | Up to 150 kg |
| Waist Size Compatibility | Up to 42 inches (106 cm) | Up to 42 inches (106 cm) |
| Mounting System | Standard Bottom Mount & Seat Sliders | Standard Bottom Mount & Seat Sliders |
Adjustments
- Recliner Mechanism: Dual recliner mechanism for enhanced strength and stability.
- Seat Sliders: Allows for distance adjustments between the driver and pedals.
Frequently Asked Questions (FAQ)
Q: What makes this seat ideal for endurance sessions?
A: The SIMAERO Mesh fabric promotes superior airflow, and the cold-molded foam seat ensures long-term comfort and support. The seat also comes with a double seat recliner and a double seat slider which allow further fine tuning for the best seating position while sim racing.
Q: What waist size does the seat comfortably support?
A: The ERS4 is best suited for users with waist sizes up to 42 inches (106 cm).
Q: What mounting systems does it support?
A: Includes standard bottom mount pattern and a universal seat railing system, compatible with Next Level Racing and most third-party cockpits that offer bottom mounting options.
Compatibility
The ERS4 Elite Reclining Seat is designed to be compatible with a wide range of Next Level Racing® cockpits, ensuring a versatile and immersive sim racing experience.
| Cockpit | Compatibility with ERS4 Seat |
|---|---|
| GTElite Lite (Wheel Plate / F&S Mount) | ✅ Yes, out of the box |
| F-GT Elite Lite (Wheel Plate / F&S Mount) | ✅ Yes, out of the box |
| GTElite (Wheel Plate / F&S Mount / Ford) | ✅ Yes, out of the box |
| F-GT Elite (Wheel Plate / F&S Mount / Racing) | ✅ Yes, out of the box |
| F-GT Elite 160 (Wheel Plate / F&S Mount / Scuderia) | ✅ Yes, out of the box |
| GTtrack | ✅ Yes, out of the box |
| GTRacer 2.0 | ✅ Yes, out of the box |
| F-GT | ⚠ Requires the cockpit's original seat sliders & shifter assembly removed |
| Go Kart Plus | ❌ Not compatible |
| GTRacer | ❌ Not compatible |
| Victory | ❌ Not compatible |
Legend:
- ✅ = Compatible out of the box
- ⚠ = Requires attention for compatibility
- ❌ = Not compatible
Troubleshooting
-
Issue: Seat recliner mechanism not locking properly.
- Solution: Ensure the recliner mechanism is fully engaged, and the locking pin is correctly aligned.
-
Issue: Seat sliders not moving smoothly.
- Solution: Lubricate the seat sliders with a silicone-based lubricant to ensure smooth operation. Also, ensure that the railing is parallel and aligned correctly.
Instructions Guide & Video Links
- Assembly Manual (PDF): Download the official assembly instructions for the ERS4 Elite Reclining Seat here: Elite Series Reclining Seats Instruction Manual
-
Instructional Video: Watch the step-by-step assembly video for the ERS3, ERS4, and ERS5 Elite Reclining Seats: Watch the ERS4 Reclining Seat Instruction Video
Product Comparison
| Feature | PRS1 | PRS2 | ES1 | ERS3 | ERS3 Hypercool | ERS4 | ERS5 |
| Max Waist Size | 38″ (97 cm) | 40″ (102 cm) | 42″ (106 cm) | Up to 44 inches (106 cm) | Up to 44 inches (106 cm) | 42″ (106 cm) | 40″ (102 cm) |
| Fit Style | Snug, bucket feel | Medium-wide | Bucket | Widest Seat | Widest Seat | Medium | Snug-Narrowest |
| Weight Capacity | Up to 150 kg | Up to 150 kg | Up to 250 kg | Up to 150 kg | Up to 150 kg | Up to 150 kg | Up to 150 kg |
| Active Cooling | No | No | No | No | Yes | No | No |
| Adjustable Lumbar Support | Yes | Yes | No | No | No | No | No |
| Recliner Mechanism | Upgrade Double | Upgrade Double | No (Fixed Seat) | Double | Double | Double | Double |
| Upholstery | Performance Mesh | Performance Mesh | Premium Suede | SIMAERO Mesh / PU Leather / PU Leather and Suede | SIMAERO Mesh & Fabric | SIMAERO Mesh / PU Leather and Suede | SIMAERO Mesh / PU Leather and Suede |
| Mounting Type | Bottom Mount + Sliders | Bottom Mount + Sliders | Side Mounting (Requires Brackets) | Bottom Mount + Sliders | Bottom Mount + Sliders | Bottom Mount + Sliders | Bottom Mount + Sliders |
