Wheel Stand Lite 2.0 (NLR-S040)

  • Updated


Product Overview

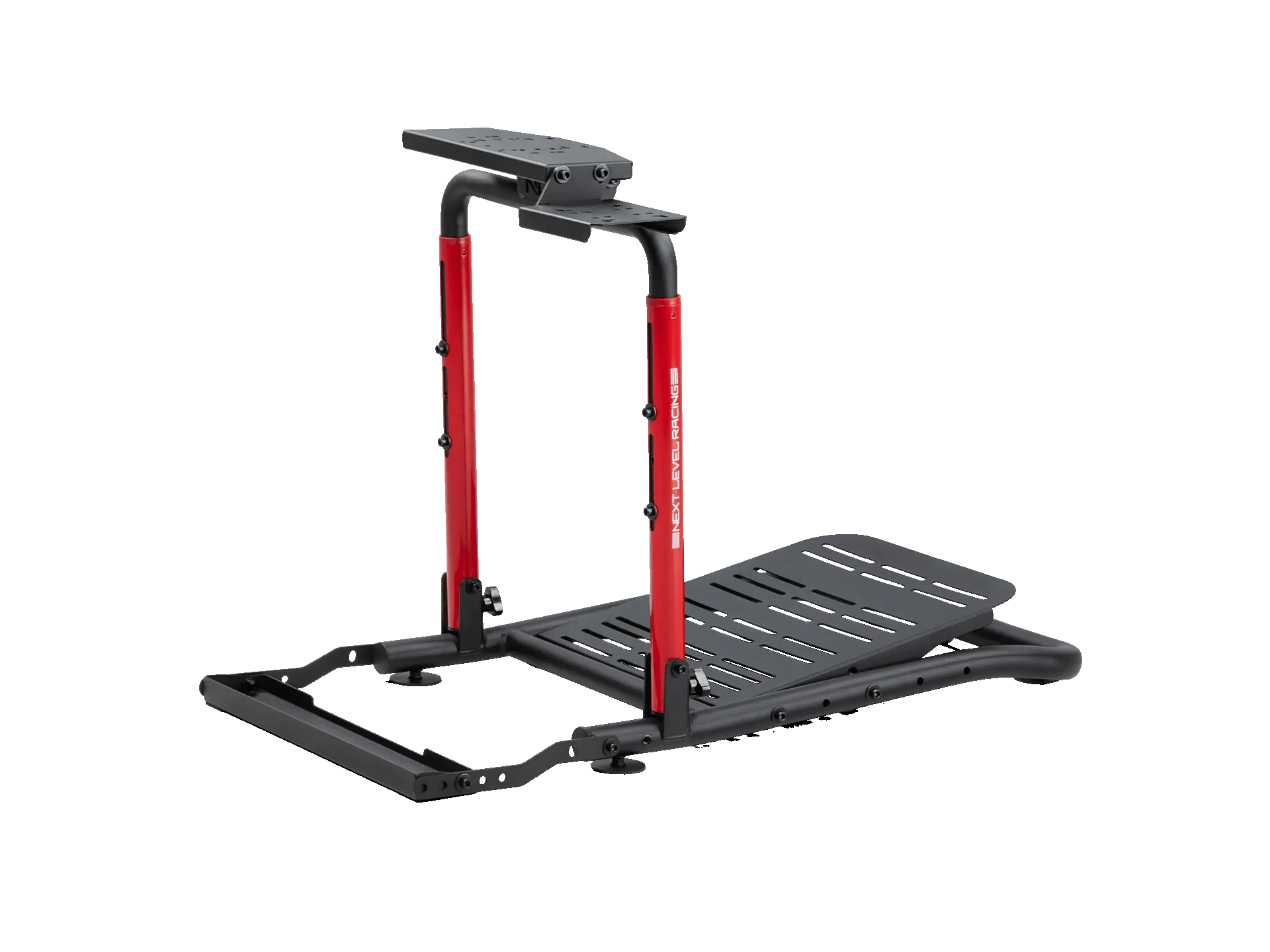

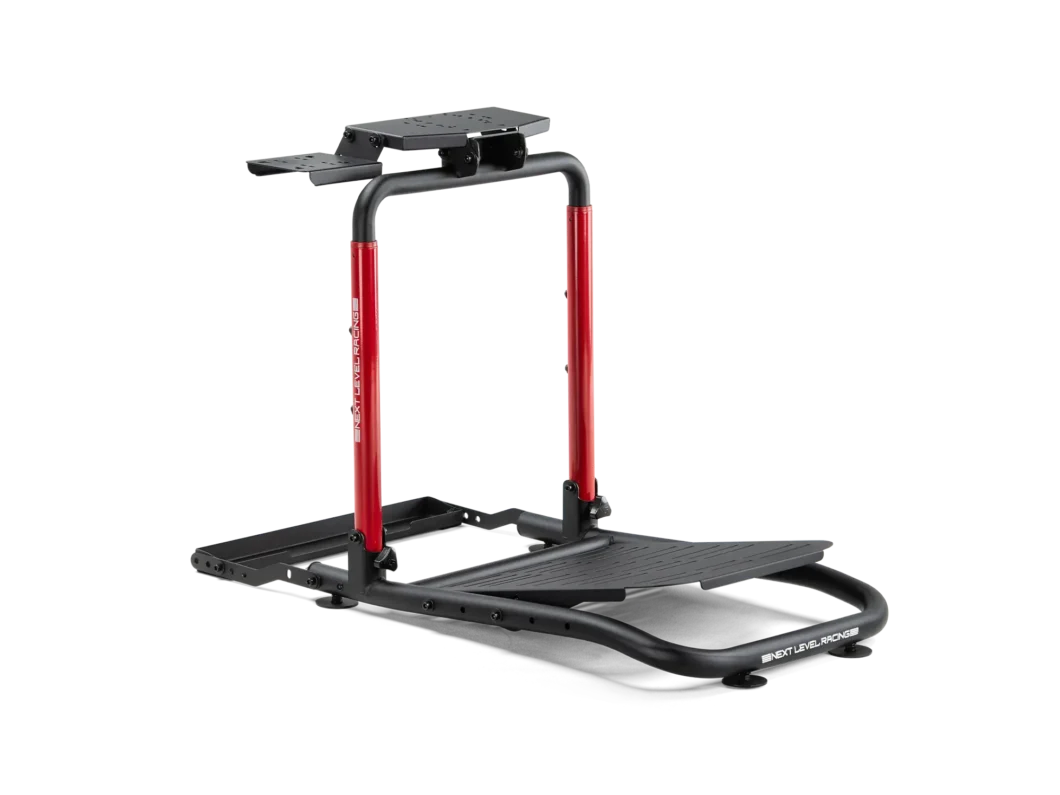

The Wheel Stand Lite 2.0 is a compact, foldable sim-racing stand optimized for maximum portability without sacrificing performance. Built in response to community feedback, it offers enhanced adjustability, improved stability, and a space-saving footprint—ideal for users skipping a desk setup. It arrives mostly pre-assembled and includes features like a gaming chair cradle and gear shifter plate support that elevate both convenience and realism


Feature Specification
Material Powder-coated round steel
Adjustability Extensive (angle, height, fold)
Shifter Compatibility Pre-drilled for left or right positioning
Foldable Design Yes – collapsible for easy storage

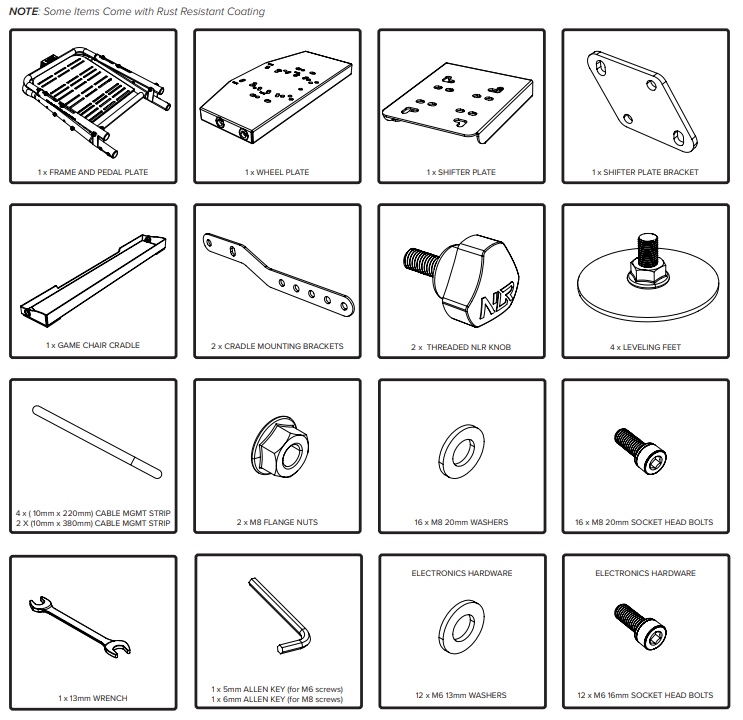

Included Stand, gear shifter plate, Cradle, screws, manual
Manufacturer’s Warranty Limited 1-Year

Features:

  • Quick and easy foldable wheel stand solution
  • Provides height, distance, and angle adjustment
  • Includes Gaming Chair Cradle to prevent gaming seat from sliding away under heavy braking
  • Included Gear Shifter Plate Support can be used on the left or the right-hand side
  • Compatible with wide range entry level sim racing wheels, pedals, and shifters up to 10 N.M
  • Upgradable into a full cockpit with the addition of the Next Level Racing® Wheel Stand Lite 2.0 Victory Seat Add-on

Specifications:

  • Supported Height: 150 -210 cm or 4ft 11inches – 6ft 9 inches
  • Supported Max Weight: 30 kg or 66.1 lbs (Electronics only)
  • Product Dimensions: 73 cm (L) x 57 cm (W) x 67-75 cm (H) /28.7 inches (L) x 22.4 inches (W) x 26.4-29.5 inches (H)
  • Box Dimensions: 76 cm (L) X 54.5cm (W) X 15.5 cm (H)/ 29.9 inches(L) x 21.5 inches (W) x 6.1 inches(H)
  • Product Weight: 11.7 kg or 25.8 lbs
  • Boxed Weight – 14.7 kg or 32.4 lbs
  • Part Number – NLR-S040

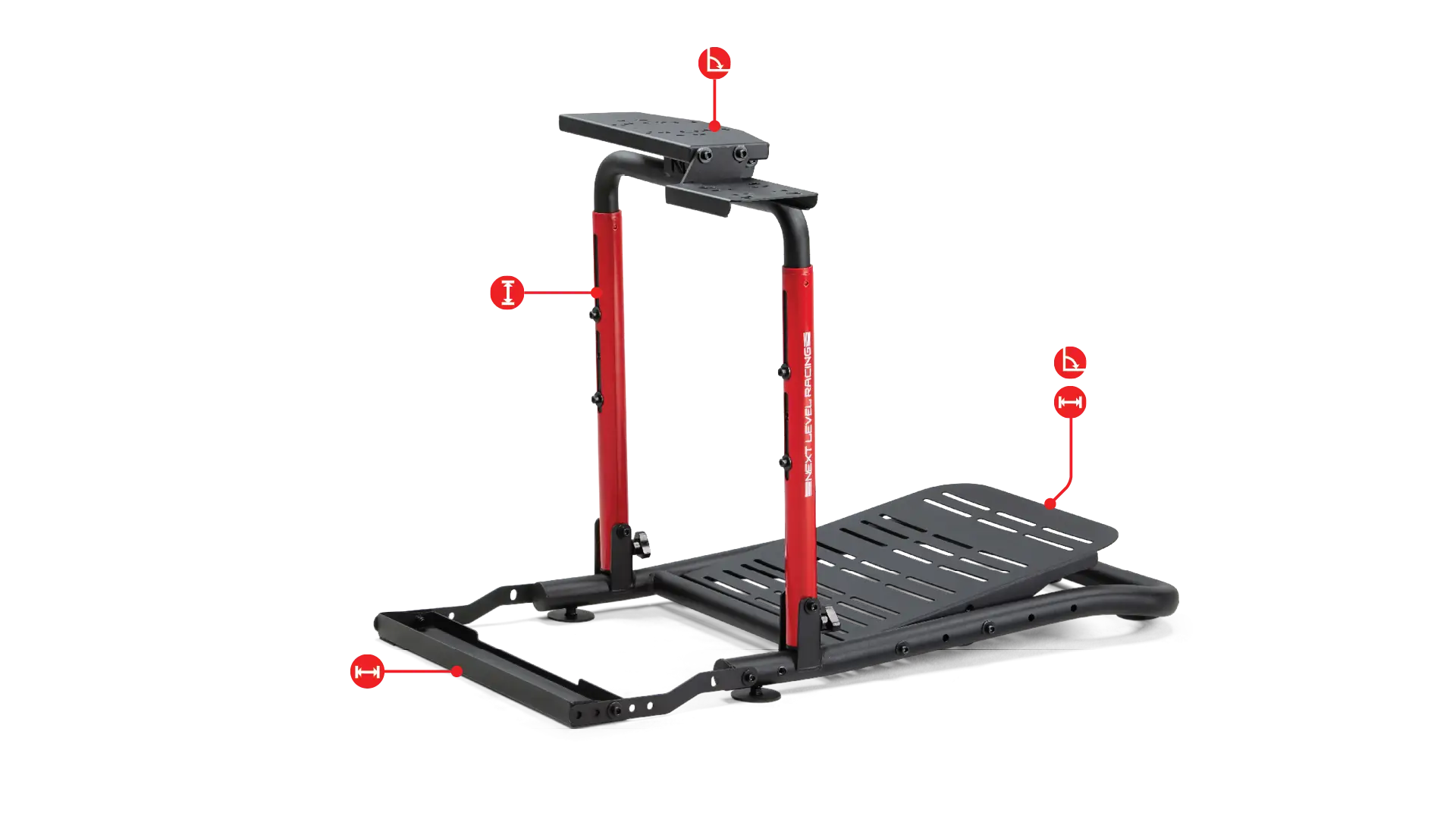

Adjustments


  • Height, distance, and angle adjustments for both the wheel and pedal plates allow users to dial in their ideal seating and wheel alignment.
  • Pedal plate supports both horizontal and tilt adjustments.
  • Shifter mount offers lateral versatility, mounting either left or right to suit user preferences.
  • Chair cradle locks down your racing seat during intense sessions to eliminate movement.

 Frequently Asked Questions (FAQ)

Q: Is it compatible with direct-drive wheels?
A: Supports wheelbases that output up to 10 N·m of torque, including many direct-drive models.

Q: Can I add a seat to make it a full cockpit?
A: Absolutely. It’s upgradeable with the Wheel Stand Lite 2.0 Victory Seat Add-on, converting it into a full cockpit.

Q: Is it easy to store and set up?
A: it folds down quickly for storage and arrives mostly assembled for fast setup

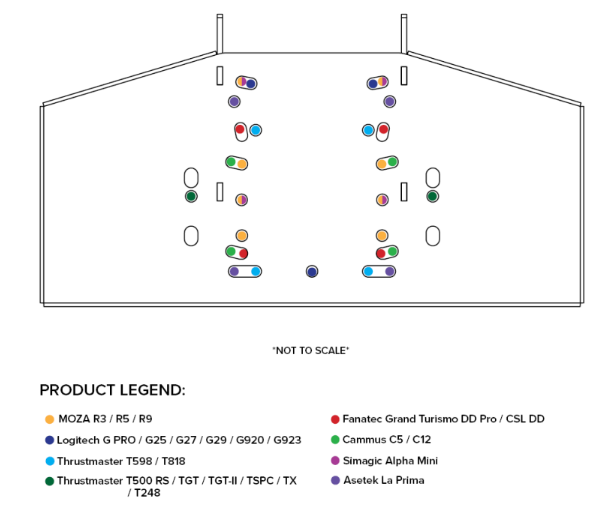

Compatibility

  • Wheel-Based Sim Rigs:

• MOZA R3

• MOZA R5

• MOZA R9

• Logitech G25

• Logitech G27

• Logitech G29

• Logitech G920

• Logitech G923

• Thrustmaster T500 RS

• Thrustmaster TGT- Remove Pads

• Thrustmaster TGT-II

• Thrustmaster TSPC

• Thrustmaster TX

• Thrustmaster T248

• Thrustmaster T598

• Thrustmaster T818

• Fanatec GT DD PRO

• Fanatec CSL DD

• Camus C5

  • NLR Ecosystem:

• Next Level Racing® Wheel Stand Lite 2.0 Victory Seat Add-on

• Next Level Racing® Lite Free Standing Monitor Stand

• Next Level Racing® Free Standing Single Monitor Stand

• Next Level Racing® Free Standing Triple Monitor Stand

• Next Level Racing® Lockable Castor Wheels

• Next Level Racing® Free Standing Keyboard and Mouse Stand

• Next Level Racing® Floor Mat

  • Pedals:
    • Fanatec CSL
    • Fanatec CSL Elite
    • Fanatec Clubsport V3
    • Thrustmaster T3PA
    • Thrustmaster T300RS
    • Thrustmaster TCLM
    • Moza R5 Pedals
    • Moza Racing CRP
    • Moza Racing SR-P
    • Logitech G25
    • Logitech G27
    • Logitech G29
    • Logitech G PRO

Troubleshooting

Q: Stand feels wobbly or loose. What should I check?

  • Ensure all folding-axis screws and bolts are properly tightened. Over time or after shipping, they may loosen.

Q: Shifter plate is too flexible or poorly positioned.

  • Some users note limited stiffness or awkward height placement for shifters—this may require slight realignment or acceptance of minor flex.

Q: Feeling vibrations with higher torque wheels.

  • Vibrations can intensify at higher heights or with stiffer wheelbases; consider limiting height adjustments or reducing high torque wheelbases to a lower output.

Instructions & Video Links

Product Comparison

Feature Wheel Stand Lite Wheel Stand 2.0 Wheel Stand Lite 2.0
Build Quality Powder-coated steel Robotic-cut carbon steel Powder-coated round steel
Stand Additions None Chair cradle Chair cradle
Shifter/Handbrake Option Yes Yes Yes
Upgrade Path Limited Full cockpit via GTSeat Add-on Full cockpit via Victory Seat Add-on
Adjustability Basic Extensive (angle, height, fold) Extensive (angle, height, fold)
