Product Overview

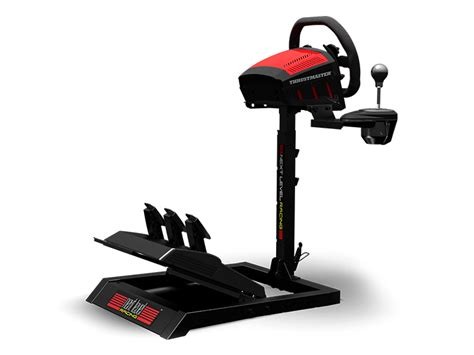

The Wheel Stand Lite is a compact, foldable sim racing stand made from rigid powder-coated steel. It’s designed to effortlessly transition from a desktop setup to a dedicated racing platform, fitting major wheel, pedal, and shifter brands such as Logitech, Thrustmaster, and Fanatec. Its portability and straightforward assembly make it a perfect entry-level option adaptable to evolving setups.
| Feature | Specification |
|---|---|
| Material | Powder-coated steel |
| Adjustability | Wheel and pedal angle/distance; shifter mounting side |
| Shifter Compatibility | Pre-drilled for left or right positioning |
| Foldable Design | Yes – collapsible for easy storage |
| Included | Stand, gear shifter adapter, screws, manual |
Features:
- Folds in less than 10 seconds for fast storage
- High quality and rigid carbon steel
- Completely adjustable wheel height/ angle and even pedal distance/ angle
- Gear shifter support included
- Compatible and predrilled for all major brands including Logitech®, Thrustmaster®, and Fanatec®
Specifications:
- Supported Height – 120 – 210 cm or 4ft – 6ft 9 inches
- Product Dimensions – L 60 x W 48 x H 50-75cm or L 23” x W 19” x H 19”–29” inches
- Product Weight – 13kg
- Boxed Dimensions – L 52 x W 19 x H 68 cm or L 20” x W 7” x H 27” inches
- Boxed Weight – 15kg
- Part Number – NLR-S007
Adjustments
- Quick release knobs to collapse the stand for compact storage
- Dual-axis pedal plate adjustments for customizable distance and incline
- Shifter mount can be installed on the left or right side for user convenience
Frequently Asked Questions (FAQ)
Q: Is the shifter mount reversible?
A: Yes, the shifter adapter comes pre-drilled to accommodate mounting on either side.
Q: Will it fit my Logitech or Thrustmaster setup?
A: Yes—it’s compatible with all major brands—Logitech, Thrustmaster, and Fanatec—thanks to universal mounting holes.
Q: Is it space-efficient?
A: Definitely! The stand folds flat in seconds, making it highly portable and easy to store.
Compatibility
- Wheel-Based Sim Rigs: Compatible with Logitech, Thrustmaster, Fanatec, and similar setups.
- Seats / Cockpits: Can be combined directly with GTLite seat rails using the Victory Seat Add-on for full cockpit transformation.
Troubleshooting
Q: Shifter won’t stay secure during aggressive use?
A: Ensure the shifter adapter is firmly tightened with included bolts and check alignment with the adjustment knobs.
Q: Stand is too wobbly with high-torque wheels?
A: Verify bolts are securely tightened; for heavy-duty use, consider upgrading to the Wheel Stand Lite 2.0 with increased stability.
Instructions & Video Links
- PDF Manual: Download Wheel Stand Lite Manual
Product Comparison
| Feature | Wheel Stand Lite | Wheel Stand 2.0 | Wheel Stand Lite 2.0 |
|---|---|---|---|
| Build Quality | Powder-coated steel | Robotic-cut carbon steel | Powder-coated round steel |
| Stand Additions | None | Chair cradle | Chair cradle |
| Shifter/Handbrake Option | Yes | Yes | Yes |
| Upgrade Path | Limited | Full cockpit via GTSeat Add-on | Full cockpit via Victory Seat Add-on |
| Adjustability | Basic | Extensive (angle, height, fold) | Extensive (angle, height, fold) |
