Motion Plus Platform:
Overview

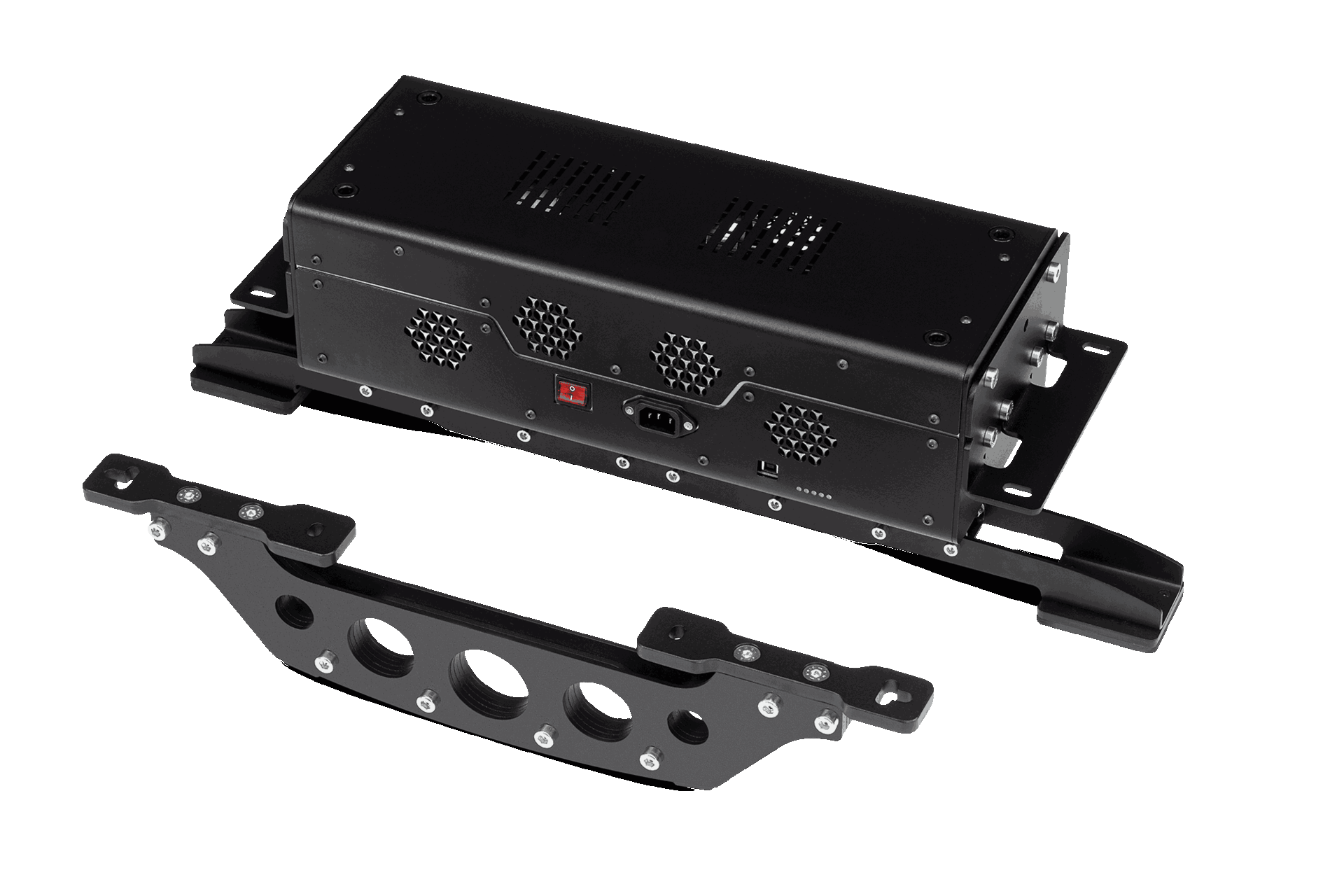

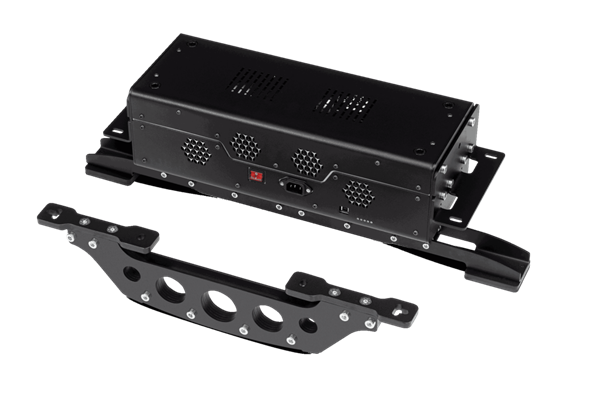

The Next Level Racing® Motion Plus Platform is a compact full-cockpit mover that delivers immersive chassis-level motion across pitch, roll, and partial heave with one unit and full heave with two, elevating realism in racing and flight simulation setups. Engineered in Europe with advanced magnetic-encoder technology, it translates in-game telemetry into precise motion feedback such as bumps, cornering, acceleration, and gear shifts
Key Features
- Full-cockpit motion simulation with pitch, roll, and heave effects (2 DOF for single, 3 DOF for dual-unit configurations)
- High precision via magnetic encoders and ultra-low latency response.
- Seamlessly integrates with the Next Level Racing ecosystem—compatible with Motion V3, Traction Plus, and supported cockpits.
- Customizable through Platform Manager software, including VR Headway for smoother VR motion
- Quick installation—set up and ready in under an hour
- Built for both home and commercial use with durable, professional-grade components
Specifications:
- Maximum Payload (cockpit + user + accessories): 250 kg (550 lb)
- Motion Capabilities: Roll Velocity up to ~21 °/s; Braking & Acceleration up to ~8 °/s
- Performance: 4000 microprocesses per second for accurate motion
- Power Input: 321 W ; 4A/115VAC/60Hz, 2A/230VAC/50Hz
- Operating Temperature: 4 °C – 45 °C (39 °F – 113 °F)
- Product Weight: 21.7 kg (48 lb) with pivot bar
- Product Dimension: 70 x 18.2 x 20 cm or 27.6 x 7.2 x 7.9 inches
Compatibility
Engineered for use with the following Next Level Racing cockpits out of the box:
- GTTrack
- F‑GT Elite Series
- GT Elite Series
- GTSeat Add-On (when attached to the Wheelstand 2.0)
- Flight Simulator Pro without adapter kits.
Compatible with the following cockpits when using the Motion Adaptor Frame:
- Flight Simulator Series,
- F-GT
- F-GT Pro
Fully compatible with Motion Platform V3 and Traction Plus for expanded DOF setups.
Supports virtually all major racing and flight titles via the Platform Manager Software.
Installation & Setup Resources
-
Instruction Manual (PDF)
Comprehensive guide covering safety, compatibility, assembly instructions, device configuration, maintenance, and troubleshooting.
[Download Here] -
Software Download
Available from the Next Level Racing Support Downloads page. You’ll need your product serial number to access.
[Software Download Page] -
Setup Video
Watch a step-by-step assembly walkthrough for installing the Motion Plus Platform.
[Watch Here]
Setup and Installation (Summarised)
- Review safety guidelines in the manual.
- Install using installed “L-Bracket” (if necessary; according to the instruction manual) and bolts, see manual section “Motion Platform Installation”.
- Connect power and USB, plug platform into PC. Turn on power via the rocker switch on the front panel.
- Install Platform Manager Software from our Downloads Page and run the Install Wizard. Once installed, the action centre in Platform Manager will prompt calibration and set-up needed on initial start-up.
- Once all items in the action centre have been resolved; activate the Game Profile you would like to utilise with your Motion Platform.
FAQ:
-
What movement does the Motion Plus simulate?
It provides pitch, roll, and partial heave (2-DoF) motion using a single unit, with full heave achievable by adding a second unit (3-DoF). It delivers dynamic and realistic movement for both racing and flight simulation. -
Is it plug-and-play?
Yes, it includes the Next Level Racing Platform Manager for easy setup and calibration with many integrated racing and flight gaming titles. -
What is the maximum support payload?
Up to 250 kg (cockpit + user + accessories). -
Is it VR compatible?
Yes, it includes VR compensation via Platform Manager (VR Headway). Set-up steps can be found within Platform Manager’s Help & Tutorials section.
Troubleshooting
- Not recognized by PC: Ensure power and USB are securely connected, ensure the USB Port is clear from debris, attempt using a different USB cord. If still not recognized, please reach out to our Motion Support Team (motion.support@nextlevelracing.com).
- No Motion: Test with no Telemetry reading programs running in the background (close through Task Manager - CTRL + SHFT + ESC). If motion resumes, you will need to set-up UDP Proxy/Forwarder; steps can be found in PLATFORM MANAGER - HELP & TUTORIALS - 4th SECTION DOWN.
Inverted or Unnatural Motion: If using a Dual Set-up; please ensure that the Front and Rear Motion Plus units have been configured and assigned correctly: PLATFORM MANAGER - TOOLS and DIAGNOSTIC - SOFTWARE CONFIGURATION
