Traction Plus Platform (*Out of Stock):
Overview

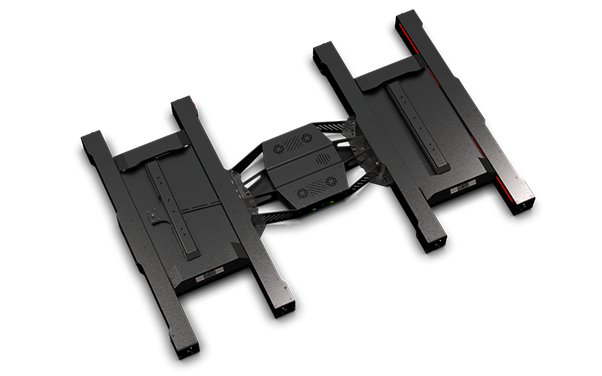

The Next Level Racing® Traction Plus Platform is a groundbreaking motion simulator that goes beyond just rear traction loss. Engineered for ultra-realistic feedback, it adds yaw-based understeer and oversteer sensations to your cockpit, delivering vehicle dynamics typically found only in expensive 6‑DOF systems. Designed and manufactured in Europe with high-end engineering, this compact unit delivers immersive realism with class-leading reliability, even in demanding home and professional environments.
Key Features
- Delivers precise understeer and oversteer sensations, alongside sway and yaw.
- Seamlessly pairs with the Motion Platform V3 to create a true 4‑DOF experience
- Designed for ease of home assembly, yet solid enough for commercial use; includes clear instructions and backed by a 2‑year consumer / 1‑year commercial warranty
- The Traction Plus (like the Motion Platform V3) is the quietest motion platform in its class with the smallest footprint possible.
- Compatible with VR and aeronautical training; for flight sims, it adds yaw effects such as turbulence, crosswind, and coordinated rudder movement
Specifications:
- Power Source: 4 A @ 115 VAC, 2 A @ 230 VAC; Rated Power: 321 W
- Max Payload (cockpit + user): 235 kg (518 lb)
- Weight & Size Platform Weight: 108 kg (238 lb); Dimensions: 112 × 165 × 13 cm (44 × 65 × 5 in)
- Boxed Size & Weight Box 1 & 3: 115 × 54.5 × 14 cm / 46 kg; Box 2: 68 × 50 × 22.5 cm / 26 kg
- Ambient Temperature: −20 °C to +60 °C
- Operating Full Performance: +5 °C to +35 °C
Compatibility
Directly compatible with the below Next Level Racing Cockpits:
- GTTrack
- F-GT Elite
Compatible with the below Next Level Racing Cockpits when using the Elite Motion Adaptor Kit:
- GTElite and GTElite Lite
- F-GT Elite Lite
- F-GT Elite 160 Edition
Compatible with the below Next Level Racing Cockpits when using the Motion Adaptor Frame:
- Flight Simulator (Boeing Editions & MSFS Edition)
- F-GT
Setup & Installation Resources
-
Instruction Manual (PDF)
Comprehensive guide covering safety, compatibility, assembly instructions, device configuration, maintenance, and troubleshooting.
[Download Here] -
Software Download
Available from the Next Level Racing Support Downloads page. You’ll need your product serial number to access.
[Software Download Page]
Setup and Installation (Summarised)
- Review safety guidelines in the manual.
- Install using installed “L-Bracket” (if necessary; according to the instruction manual) and bolts, see manual section “Motion Platform Installation”.
- Connect power and USB, plug platform into PC. Turn on power via the rocker switch on the front panel.
- Install Platform Manager Software from our Downloads Page and run the Install Wizard. Once installed, the action centre in Platform Manager will prompt calibration and set-up needed on initial start-up.
- Once all items in the action centre have been resolved; active the Game Profile you would like to utilise with your Motion Platform.
Frequently Asked Questions (FAQ)
Q: What vehicle and movement feedback does Traction Plus offer?
A: It simulates understeer, oversteer, sway, yaw, road effects, drifting, and shunting—enhancing training realism in both racing and flight applications
Q: How can I get 4-DOF motion?
A: Mount the Motion Platform V3 under your cockpit on top of Traction Plus. This combination delivers advanced motion dynamics including pitch, roll, sway, and yaw
Q: What’s the supported payload?
A: It accommodates up to 235 kg (518 lb) total, cockpit plus user.
Q: Is it suitable for VR?
A: Yes! It includes VR-compatible motion profiles via Platform Manager, delivering enhanced immersion.
Q: How easy is it to set up?
A: Designed for user-friendly assembly with clear manuals and visuals. Warranty and support are provided, making it accessible even for beginners
Troubleshooting
- Not recognized by PC: Ensure power and USB are securely connected, ensure the USB Port is clear from debris, attempt using a different USB cord. If still not recognized, please reach out to our Motion Support Team (motion.support@nextlevelracing.com).
- Traction Plus does not calibrate on start-up: Verify correct mounting alignment. Check the required 1160 mm distance between top beams as mentioned in Page 17 of the manual.
- Noisy operation (unlikely): Traction Plus is designed to operate quietly, but ensure it's placed on a stable, vibration‑isolated surface for best results.
Traction Plus Resource Links
1. Instruction Manual (PDF)
You can download the full official manual, covering safety, compatibility, assembly, and troubleshooting below:
2. Platform Manager Software & Firmware
Available from the Next Level Racing Support Downloads page. You’ll need your product serial number to access.
[Software Download Page]
All Firmware updates will be prompted in Platform Manager Software’s action centre.
