Product Overview:

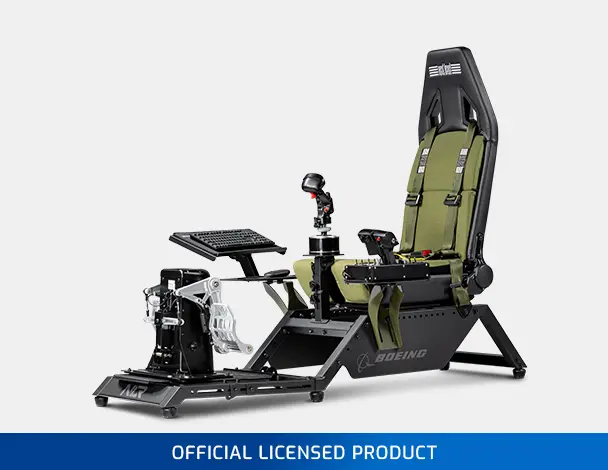

The Next Level Racing® Flight Simulator – Boeing Military Edition is a fully dedicated and officially Boeing‑licensed flight simulator cockpit tailored to replicate military-style flight ergonomics. It features a durable design with military‑inspired green canvas seat coverings and “Military Green” accents, offering immersive realism alongside comfort for extended use.
Available Variants:
- Flight Simulator – Boeing Military Edition (this product)
- A counterpart Flight Simulator – Boeing Commercial Edition
- The standard Next Level Racing Flight Simulator cockpit (non‑Boeing versions)
These variants are part of Next Level Racing’s collaboration with Boeing, offering both military and commercial aesthetics.
Key Features:
- Official Boeing‑licensed design with military‑themed canvas seat covers and green highlights.
- Accommodates multiple flight genres: Combat (with center stick), Space, Commercial, and General Aviation.
- Realistic combat ergonomics: Center stick (HOTAS) can be mounted between the legs using a seat cut‑out—reflecting true fighter cockpit layout.
- Comfort features: High‑density foam seat, PU leather plus canvas for breathability and durability; double‑recliner design provides ergonomic flexibility and strength. Seat is positioned higher for ergonomic access to rudder controls.
- Peripheral compatibility: Works with yokes, joysticks, throttles, rudders from all major brands, plus direct mounting compatibility with the Thrustmaster® TCA Yoke Pack Boeing Edition.
- Included accessories: Buttkicker® adapter, four‑point harness, lumbar support, keyboard & mouse tray, and various adapter plates to support different flight setups.
- Motion platform ready: Compatible with Next Level Racing’s Motion Plus Platform Adaptor (sold separately) for physical movement.
Specifications:
- Supported Height: 120 -210 cm or 4ft – 6ft 9 inches
- Supported Max Weight: 150 kg or 330 lbs
- Product Dimensions: (L) 153 cm x (W) 99 cm or (H) 122cm /(L) 60.2 inches x W 39 inches x H 48 inches)
- Box Dimensions: 100 cm (L) X 54cm (W) X 48cm (H)/ 39.4 inches(L) x 21.3 inches (W) x 18.9 inches(H)
- Product Weight: 49.5kg or 109.1 lbs
- Boxed Weight – 56.3 kg or 124.1 lbs
- Part Number – NLR-S028
Adjustments:
The cockpit is highly adjustable to fit users of varying sizes and preferred flight setups:
- Side arms: 300 mm lateral adjustment, 75 mm height adjustment for ideal yoke placement.
- Centre pole: 150 mm height adjustment for yoke or keyboard tray positioning.
- HOTAS centre pole: 30 mm height adjustment for center‑stick ergonomics.
- Flight arm & rudder plate: Up to 21.5° angle adjustment for tuning controls layout.
- Seat: Equipped with a slide mechanism and reclining backrest for customizable distance and angle adjustments.
FAQ:
-
What type of flight simulation is this cockpit ideal for?
The Boeing Military Edition is purpose-built for combat and tactical aviation, with a seat cutout for center-mounted HOTAS setups to deliver a true fighter jet experience. However, it’s also highly adaptable and can be used for space, general aviation, and commercial flight simulation, making it a versatile all-in-one flight solution. -
What flight hardware is it compatible with?
It supports a wide range of peripherals, including yokes, joysticks, throttles, and rudder pedals from brands like Thrustmaster, Moza, Logitech, Saitek, Honeycomb, Virtual Fly, and Crosswind. -
What materials and design features are included?
It features a military green canvas seat, high-density foam padding, and a robust double recliner mechanism. Official Boeing branding is included on the headrest and side panels. -
Is the cockpit adjustable for different user preferences?
Yes, it offers flexible adjustments for seat recline, flight arms, center-mounted devices, and rudder plate positioning to accommodate various pilot preferences and hardware setups.
Compatibility:
- Peripherals: Works seamlessly with accessories from Thrustmaster®, Logitech®, Moza, Saitek®, Honeycomb®, Virtual Fly®, Crosswind®, and others.
- Flight setups: Designed for seamless transitions between combat, space, commercial, and general aviation layouts.
- Brand synergy: Built for ideal fit with Thrustmaster’s TCA Yoke Pack Boeing Edition.
- Motion simulation: Supports Next Level Racing’s Motion Plus Platform Adaptor for immersive movement.
-
Ecosystem compatibility: Fully integrates with motion platforms and other NLR accessories including:
- Next Level Racing® Free Standing Single Monitor Stand
- Next Level Racing® Free Standing Triple Monitor Stand
- Next Level Racing® Free Standing Keyboard and Mouse Stand
- Next Level Racing® Elite Free Standing Monitor Stand
- Next Level Racing® Elite Quad Monitor Stand
- Next Level Racing® Lockable Castor Wheels
- Next Level Racing® Floor Mat
- Next Level Racing® Motion Plus Adaptor (This allows the flight cockpit to be compatible with Next Level Racing® Motion Plus Platform and Traction Plus Platform
- Included Flight Plate & Mouse Plate Compatibility:
- Thrustmaster HOTAS Warthog Stick
- Thrustmaster HOTAS Warthog Throttle
- Thrustmaster TCA Quadrant Airbus Edition Throttle
- Thrustmaster TCA Quadrant Airbus Edition Sidestick
- Thrustmaster TCA Throttle Quadrant Boeing Edition
- Thrustmaster T16000M FCS HOTAS
- Thrustmaster TWCS Throttle
- Virtual Fly TQ6
- Virtual Fly TQ3
- Virtual Fly V3rnio
- Logitech X52 HOTAS
- Logitech X52 Throttle
- Logitech G X56 HOTAS
- Logitech G X56 Throttle
- Logitech G Pro Throttle
- Winwing Gemini Throttle
- VPC Mongoos T-50CM2
- VPC Warbird HOTAS
- VKB Gunfighter Pro MKII HOTAS
- Many other Brands
- Included Yoke Plate Compatibility:
- Virtual Fly Yoko
- Honeycomb Alpha
- Logitech G Pro
- Turtle Beach Velocity One (with adaptor)
- Also includes hole patterns on the Flight Plate.
- Included HOTAS Plate Compatibility:
- Thrustmaster HOTAS Warthog Stick
- WINWING Super Libra
- VPC Mongoos T-50CM2
- Included Rudder Plate Compatibility:
- Thrustmaster TPR Rudders (With TPR Adaptors)
- Thrustmaster T-Flight Rudders
- MFG Crosswinds
- Logitech G Pro Rudder Pedals
- Virtual Fly Ruddo+
Instructions Guide & Video Links:
- Assembly Video: [Watch YouTube Video]
- Assembly Manual: [PDF Version]
