Product Overview:

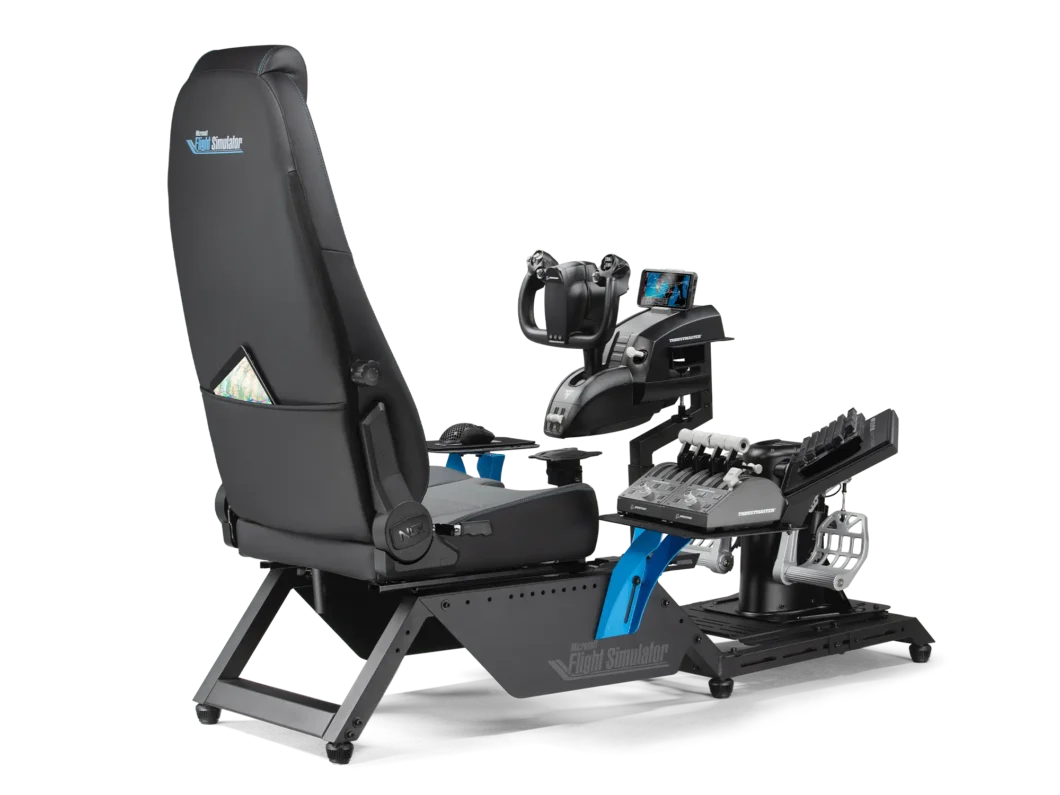

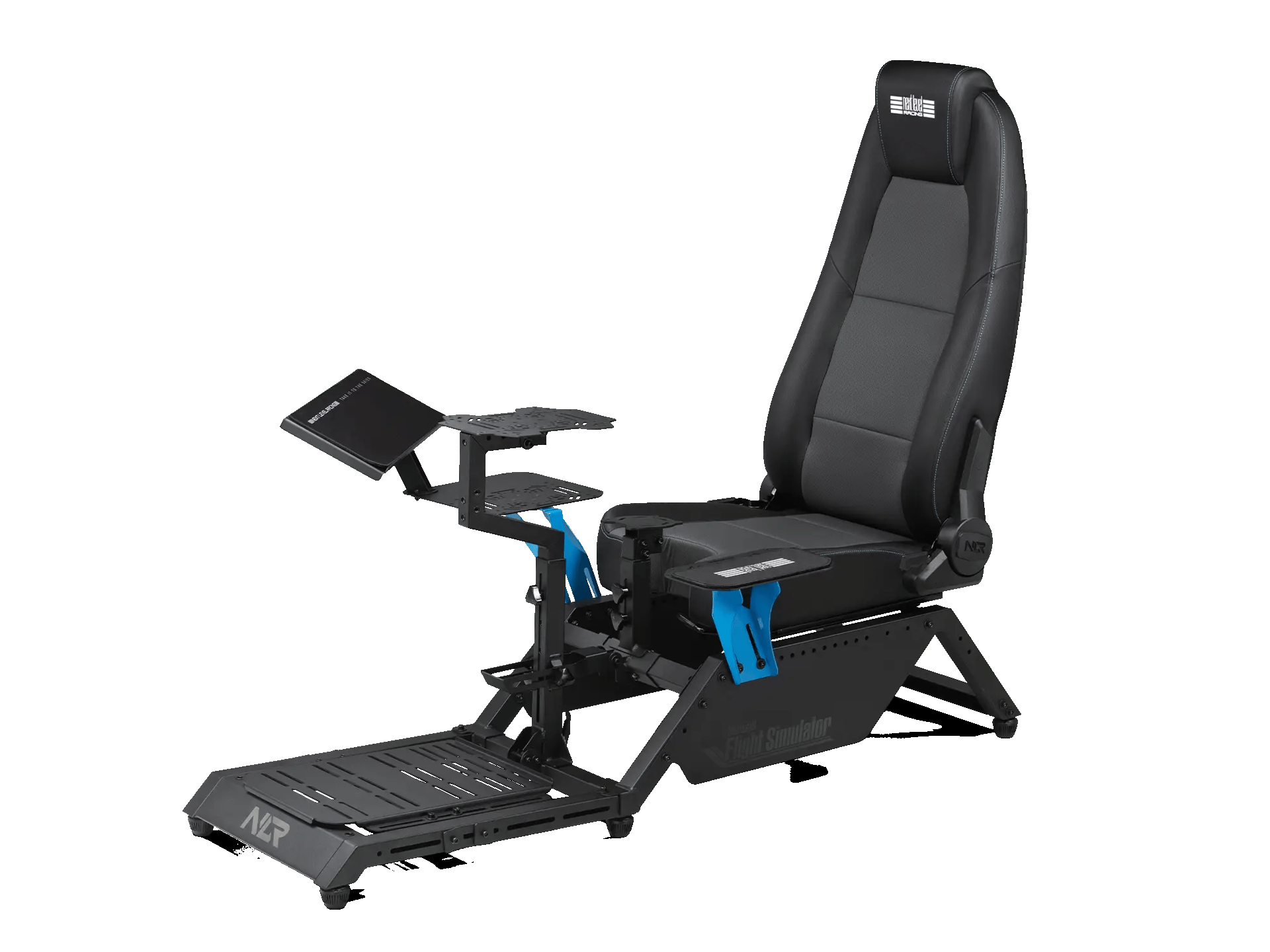

The Next Level Racing® Flight Simulator Cockpit – Microsoft Flight Simulator Edition is a purpose-built flight sim platform created in official collaboration with Microsoft Flight Simulator. Designed for long-duration sessions and serious sim pilots, it features a rugged frame and an ergonomic flight seat with integrated lumbar support, an industry first, wrapped in premium PU leather and advanced padding for superior comfort and support during extended flights.
Key attributes include:
- Official Microsoft Flight Simulator licensing for authenticity and immersion.
- Ergonomic seat tailored to reduce pilot fatigue with an adjustable lumber support.
- Compatibility across flight disciplines—commercial, general aviation, combat, and even space.
- Modular design with multi-point adjustability for seat distance, height, and peripheral placement.
- Universal compatibility with major peripheral brands such as Honeycomb, Moza, Thrustmaster, Logitech, and more.
- Seamless integration with the Next Level Racing ecosystem, including motion platforms, monitor stands, and accessories.
Available Variants:
Currently there are no other available variants available for this product.
Specifications:

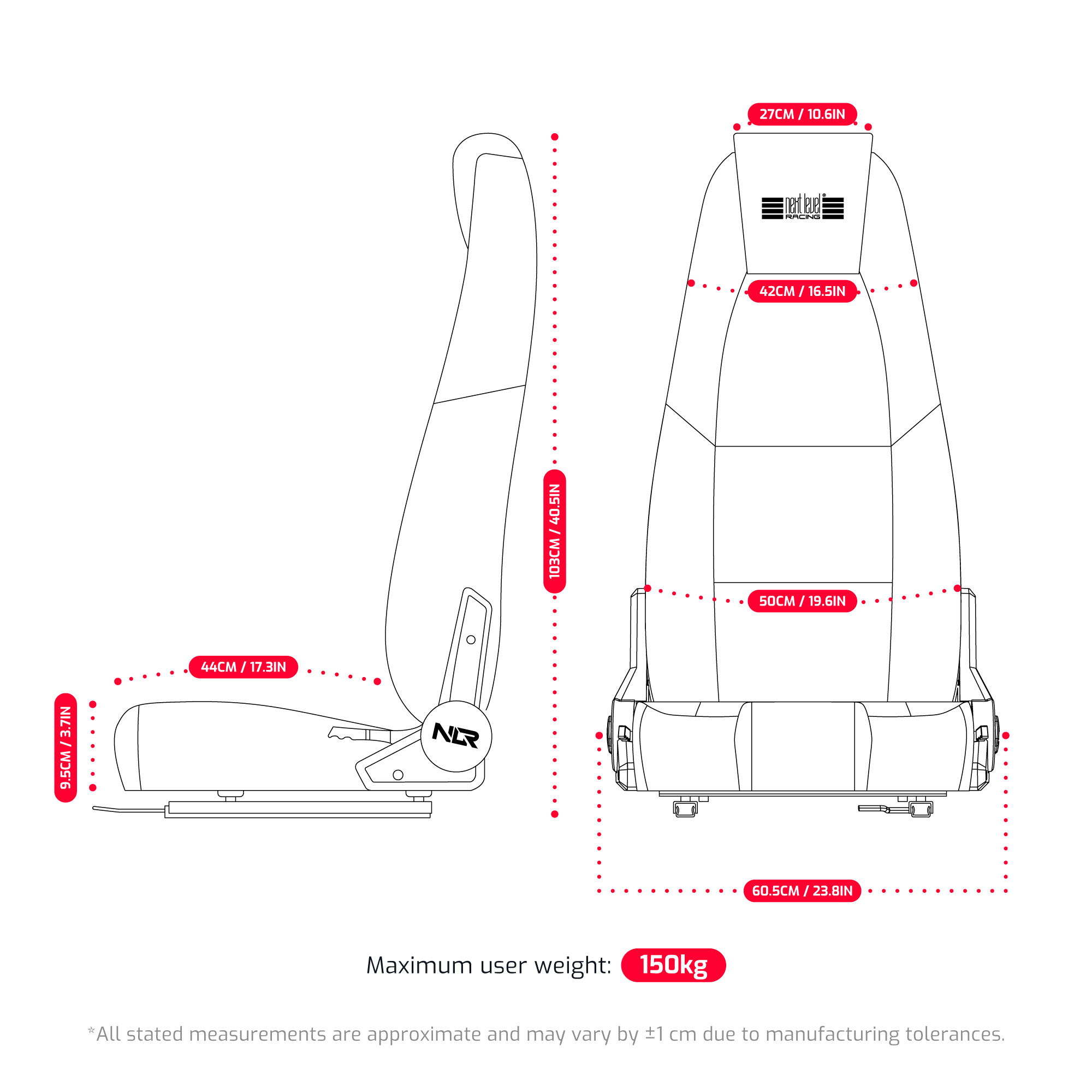

- Supported height: 120cm – 210cm or 3’9″ – 6’9″
- Supported max weight: 150kg or 331 lbs.
- Product dimensions:
(L) 153 cm x (W) 98.5 cm or (H) 130 cm /(L) 60 inches x W 38.8 inches x H 51.2 inches) - Box dimensions:
NLR-S044A 98cm (L) X 53 cm (W) X 22 cm (H)/ 38.6 inches(L) x 21 inches (W) x 8.7 inches(H)
NLR-S044B 90 cm (L) X 62cm (W) X 38 cm (H)/ 35.4 inches(L) x 24.4 inches (W) x 15 inches(H)
- Product weight:
NLR-S044A 35.2 kg or 77.6 lbs.
NLR-S044B 15.3 kg or 33.7 lbs.
- Boxed weight
NLR-S044A 38.5 kg or 84.9 lbs.
NLR-S044B 20.3 kg or 44.8 lbs.
- Part number – NLR-S044 (NLR-S044A + NLR-S044B)
Adjustments:
The cockpit offers extensive adjustability:
- Seat distance, height, and tilt can be fine-tuned to suit different pilot statures and preferences.
- Peripheral mounting supports varied setups from traditional yokes and throttle quadrants to center-mounted joysticks.
FAQ:
-
Is this cockpit compatible with my existing flight gear?
Yes! The Microsoft Flight Simulator Edition Cockpit offers universal compatibility with major flight gear brands including Honeycomb, Logitech, Thrustmaster, Moza, and more. It supports a variety of configurations—from yoke and throttle quadrant setups to joystick and throttle combos. Our product flight cockpit offers hard mounting options for most flight electronics on the market. For more information, please check the PDF instructions for mounting options. -
Does the cockpit include a seat?
Absolutely. It comes with a newly developed, ergonomic flight seat featuring premium PU leather, enhanced cushioning, and the industry’s first integrated lumbar support system—designed for unmatched comfort during long simulation sessions. -
What types of flight simulation is it designed for?
This cockpit is built for all types of flight sim experiences—commercial aviation, general aviation, combat/military, helicopter, and even space flight. It’s optimized for Microsoft Flight Simulator but fully supports other flight titles too. -
Can I mount a center joystick or add a motion platform later?
Yes to both. The cockpit supports center joystick mounting for authentic layouts, and with the optional Motion Adaptor Frame, it’s compatible with the Next Level Racing® Motion Plus Platform for a fully immersive motion experience.
Compatibility:
- Flight disciplines supported: Commercial, general aviation, combat, helicopter, and space simulation
- Peripheral brands supported: Honeycomb, Moza, Thrustmaster, Logitech, etc.
-
Ecosystem compatibility: Fully integrates with motion platforms and other NLR accessories including:
- Next Level Racing® Free Standing Single Monitor Stand
- Next Level Racing® Free Standing Triple Monitor Stand
- Next Level Racing® Free Standing Keyboard and Mouse Stand
- Next Level Racing® Elite Free Standing Monitor Stand
- Next Level Racing® Elite Quad Monitor Stand
- Next Level Racing® Lockable Castor Wheels
- Next Level Racing® Floor Mat
- Next Level Racing® XL Premium Floor Mat
- Next Level Racing® HF8 Pro Haptic Feedback Gaming Pad
- Next Level Racing® HF8 Haptic Feedback Gaming Pad
- Next Level Racing® Motion Adapter Frame (This allows the flight cockpit to be compatible with Next Level Racing® Motion Plus Platform)
- Included Flight Plate & Mouse Plate Compatibility:
- Logitech X52 HOTAS
- Logitech X52 Throttle
- Logitech G X56 HOTAS
- Logitech G X56 Throttle
- MOZA AB9 FFB HOTAS BASE
- MOZA MTP Throttle Panel-T00
- Thrustmaster T16000M FCS HOTAS
- Thrustmaster TCA Sidestick Airbus
- Thrustmaster HOTAS Warthog Stick
- Thrustmaster HOTAS Warthog Throttle
- Thrustmaster TCA Quadrant Airbus Edition Throttle
- Thrustmaster TCA Quadrant Airbus Edition Sidestick
- Thrustmaster TCA Throttle Quadrant Boeing Edition
- Thrustmaster TWCS Throttle
- Turtle Beach VelocityOne Flightstick
- Virtual Fly TQ3+
- Virtual Fly TQ6+
- Virtual Fly V3rnio+
- VKB Gladiator NXT
- VKB Gunfighter PRO MK.II
- Virpil Mongoos T-50CM2
- Virpil Mongoos T-50CM3 with WarBRD Base
- Virpil Mongoos T-50CM3 Throttle
- Virpil Rotor TCS Plus Base
- Winwing Gemini Throttle
- Winwing Orion 2 Throttle
- Winwing HOTAS Orion 2
- Many other Brands
- Included Yoke Plate Compatibility:
- Virtual Fly Yoko
- Turtle Beach Velocity One (with adaptor)
- Honeycomb Alpha
- Thrustmaster TCA Yoke Boeing Edition (with included spacer plate)
- Logitech G Pro Yoke (with included spacer plate)
- Also includes the same mounting hole patterns on the Flight Plate
- Included HOTAS Plate Compatibility:
- Thrustmaster HOTAS Warthog Stick
- VKB Gunfighter PRO MK.II
- Virpil Mongoos T-50CM2
- Virpil Mongoos T-50CM3 with WarBRD Base
- Winwing HOTAS Orion 2
- Winwing Super Libra
- Included Collective Bracket Compatibility:
- Winwing Gemini Collective
- Virpil Collective with Bracket – Vertical Setup
- Virpil Collective with Bracket – Horizontal Setup
- Included Rudder Plate Compatibility:
- Thrustmaster TPR Rudders (With TPR Adaptors)
- Thrustmaster T-Flight Rudders
- MFG Crosswinds
- Logitech G Pro Rudder Pedals
- Virtual Fly Ruddo+
Instructions Guide & Video Links
- Instructions guide: [PDF Version]
- Assembly video: [Watch YouTube Video]
