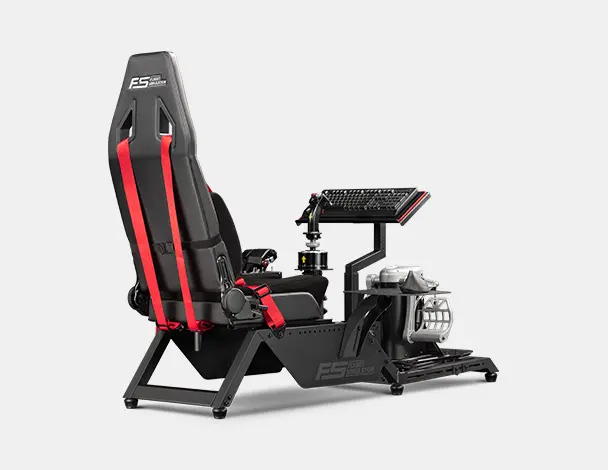

Product Overview:
The Next Level Racing Flight Simulator is a dedicated flight cockpit built to deliver maximum immersion for flight simulation enthusiasts. It accommodates a wide range of flight genres—from combat and general aviation to commercial flight and space exploration—and frees users from a typical desk setup so they can enjoy a truly immersive experience.
Available Variants:
- Standard Flight Simulator – the version detailed on this product page
- The cockpit is offered in special Boeing-branded variants:
- Flight Simulator Boeing Military Edition
-
Flight Simulator Boeing Commercial Edition
These editions feature distinctive aesthetic and branding but are separate variants from the standard model
Specifications:
Specifications include:
- Supported Height: 120 -210 cm or 4ft – 6ft 9 inches
- Supported Max Weight: 150 kg or 330 lbs
- Product Dimensions:
(L) 153 cm x (W) 99 cm or (H) 122cm /(L) 60.2 inches x W 39 inches x H 48 inches)
- Box Dimensions:
100 cm (L) X 54cm (W) X 48cm (H)/ 39.4 inches(L) x 21.3 inches (W) x 18.9 inches(H)
- Product Weight: 49.5kg or 109.1 lbs
- Boxed Weight – 56.3 kg or 124.1 lbs
- Part Number – NLR-S018
Adjustments:
The cockpit's adjustability is comprehensive:
- Offers wide height and distance adjustments to tailor your setup for pilot stature and preference.
- Seat design: built with high-density foam, featuring PU leather and suede, with a double recliner mechanism for reinforced support, and ergonomically positioned high to complement rudder access
- Includes a cut-out seat design for optimal center-stick (HOTAS) positioning, ideal for combat flight layouts
- Comes with keyboard & mouse support, mountable in multiple positions depending on your flight configuration (e.g., space setups)
FAQ:
-
What was the design purpose?
Tailored specifically for flight enthusiasts seeking configurable support across multiple flight styles, combat, space, general aviation, and commercial -
How comfortable is the seat?
Engineered with high-density foam, breathable PU leather/suede, and robust reclining support that ensures comfort for long flights. The seat include a stand alone lumbar support for users to add based on preference. -
What configurations are available for this cockpit?
Modular design allows multiple cockpit layouts—e.g., yoke/throttle mounting, HOTAS center stick, and accessible keyboard/mouse for space simulation. Best suited for electronics that can be hard mounted directly to the cockpit. -
What accessories come included?
Comes with a Buttkicker® adaptor, four-point harness, and lumbar support -
Is this cockpit Motion compatible?
This can be made motion-compatible with the Motion Plus and Traction Plus Platform using the Motion Adaptor Frame (Traction Plus + Motion Plus Combination will also require the Traction Adaptor Frame).
Compatibility:
- Peripherals: Universally compatible with yokes, joysticks, rudders, throttles, and HOTAS systems from brands such as Thrustmaster®, Moza, Logitech, Saitek®, Honeycomb, Virtual Fly, and Crosswind
- Flight Configurations: Suitable for combat, general aviation, commercial flight, and space simulators due to adaptable design.
- Flight Experience: Constructed specifically for flight; supports multi-genre setups with configurable mounting options and ergonomic seat layout
-
Ecosystem compatibility: Fully integrates with motion platforms and other NLR accessories including:
- Next Level Racing® Free Standing Single Monitor Stand
- Next Level Racing® Free Standing Triple Monitor Stand
- Next Level Racing® Free Standing Keyboard and Mouse Stand
- Next Level Racing® Elite Free Standing Monitor Stand
- Next Level Racing® Elite Quad Monitor Stand
- Next Level Racing® Lockable Castor Wheels
- Next Level Racing® Floor Mat
- Next Level Racing® XL Premium Floor Mat
- Next Level Racing® HF8 Pro Haptic Feedback Gaming Pad
- Next Level Racing® HF8 Haptic Feedback Gaming Pad
- Next Level Racing® Motion Adapter Frame (This allows the flight cockpit to be compatible with Next Level Racing® Motion Plus Platform and Traction Plus Platform)
- Included Flight Plate & Mouse Plate Compatibility:
- Thrustmaster HOTAS Warthog Stick
- Thrustmaster HOTAS Warthog Throttle
- Thrustmaster TCA Quadrant Airbus Edition Throttle
- Thrustmaster TCA Quadrant Airbus Edition Sidestick
- Thrustmaster TCA Throttle Quadrant Boeing Edition
- Thrustmaster T16000M FCS HOTAS
- Thrustmaster TWCS Throttle
- Virtual Fly TQ6
- Virtual Fly TQ3
- Virtual Fly V3rnio
- Logitech X52 HOTAS
- Logitech X52 Throttle
- Logitech G X56 HOTAS
- Logitech G X56 Throttle
- Logitech G Pro Throttle
- Winwing Gemini Throttle
- VPC Mongoos T-50CM2
- VPC Warbird HOTAS
- VKB Gunfighter Pro MKII HOTAS
- Many other Brands
- Included Yoke Plate Compatibility:
- Virtual Fly Yoko
- Honeycomb Alpha
- Logitech G Pro
- Turtle Beach Velocity One (with adaptor)
- Also includes hole patterns on the Flight Plate.
- Included HOTAS Plate Compatibility:
- Thrustmaster HOTAS Warthog Stick
- WINWING Super Libra
- VPC Mongoos T-50CM2
- Included Rudder Plate Compatibility:
- Thrustmaster TPR Rudders (With TPR Adaptors)
- Thrustmaster T-Flight Rudders
- MFG Crosswinds
- Logitech G Pro Rudder Pedals
- Virtual Fly Ruddo+
Instructions Guide & Video Links:
- Instructions guide: [PDF Version]
- Assembly Video: [Watch YouTube Video]
