ERS3 Haptic (NLR-E066)

Product Overview

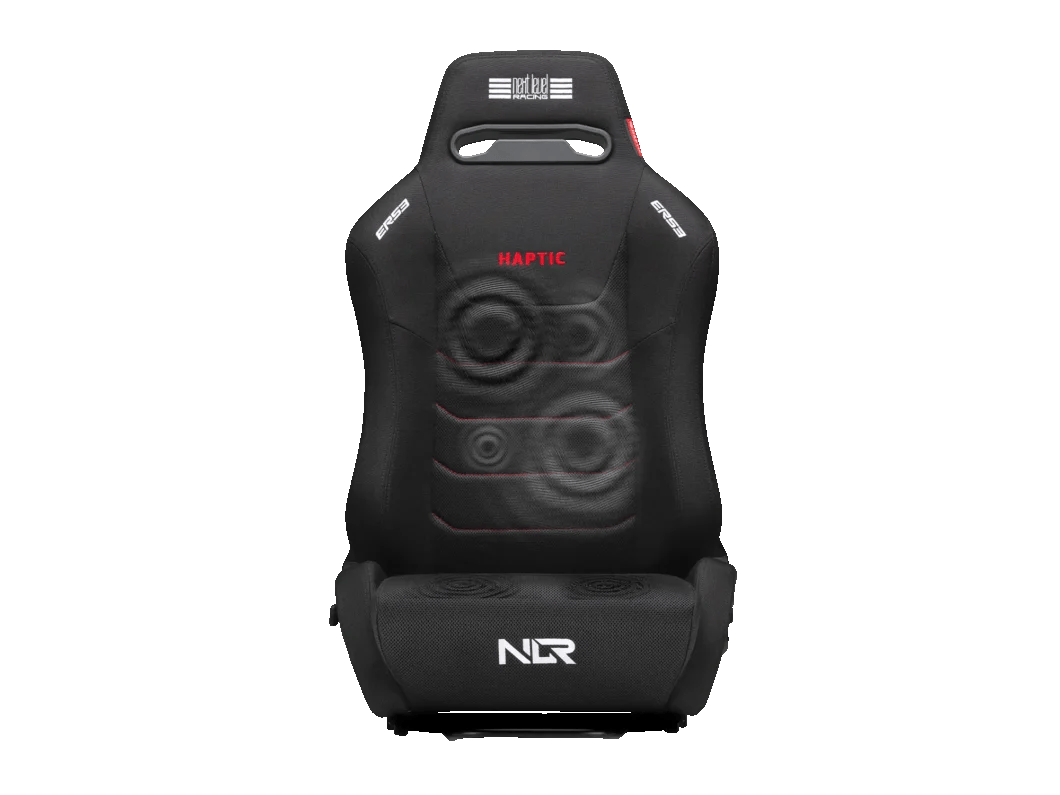

The Next Level Racing® ERS3 Haptic Feedback Sim Racing Seat combines two of the most acclaimed innovations in simulation — the comfort and ergonomics of the ERS3 Elite Seat and the haptic performance of the HF8 Pro. Developed from global community feedback, it represents the most accessible and affordable way to experience true integrated haptic feedback in a professional-grade seat.

“The next level of realism the Haptic Seats gives you is amazing. I particularly love the feelings through the gear shifts, ripple-strips and loss of traction. Makes it much easier to judge.” Alex Gardner, Professional Race Car Driver

Featuring the same advanced haptic technology as the HF8 Pro, the Next Level Racing® ERS3 Haptic delivers 200% more torque, 400% more power, and 60% faster motor speed than the original HF8 Haptic Feedback Pad. The eight embedded haptic motors are fully integrated into the seat frame, translating every corner, surface texture, and impact into detailed, real-time sensation while delivering direct and evenly distributed feedback. Built with SIMAERO Mesh fabric and cold-moulded foam, the ERS3 Haptic maintains the ERS3’s renowned comfort and posture support, making it ideal for long endurance sessions for sim racers and pilots alike.

Leading Features

• Unlike traditional haptic pads, the ERS3 Haptic houses its motors within the seat structure for unmatched tactile precision and comfort. This fully integrated design eliminates shifting or vibration loss, ensuring every sensation — from tyre slip to turbulence — is transmitted directly through the seat. The SIMAERO Mesh fabric keeps you cool under pressure, while high-density foam maintains support through every lap, flight, or mission. Designed to accommodate larger body types and extended sessions, the ERS3 Haptic balances performance, strength, and ergonomic comfort for every user.

• With full support for Next Level Racing® HFS software and SimHub integration, users can fine-tune each of the eight feedback zones to match their preferences. Control the strength and trigger behaviour of each motor — whether simulating engine RPM, road texture, braking, or turbulence. The HFS software runs at 75 frames per second for ultra-low latency feedback, while a built-in physical controller allows on-the-fly intensity adjustment with LED indicators for quick reference. For console* use, the 3.5 mm audio input transforms in-game sound into vibration feedback for racing, flight, or even music and VR experiences.
  *Note: When using on console, haptic feedback is generated through audio-based vibration only. Individual motor control and telemetry-based effects are ONLY available on PC via HFS Software or SimHub.

• The ERS3 Haptic is engineered for seamless compatibility across a wide range of simulator setups. Its bottom-mount design fits most third-party cockpits with easy installation. The haptic system complements advanced motion and tactile feedback solutions, creating a cohesive and responsive simulation experience. Whether racing, flying, or exploring in VR, the ERS3 Haptic delivers exceptional comfort, precise feedback, and the strength needed for demanding users — making it the ultimate all-round seat for immersive simulation.

Specifications

Dimensions

Frequently Asked Questions (FAQ)

Q: What makes the ERS3 Haptic Seat different from a standard sim racing bucket seat?
A: The ERS3 Haptic Seat features fully integrated haptic feedback, meaning the vibration motors are built directly into the seat rather than added as an external pad.

It uses eight high-torque motors powered by HF8 Pro technology, delivering precise, low-latency feedback that simulates effects like gear shifts, road texture, braking, and traction loss in real time.

This results in more accurate and evenly distributed feedback compared to traditional add-on haptic solutions.

Q: How does the haptic feedback system work?
A: The seat’s eight embedded motors operate at up to 75 FPS, translating in-game telemetry into physical sensations across different areas of the seat.

Through Next Level Racing HFS Software or SimHub, users can customise each feedback zone independently, adjusting intensity and effects like:

• Engine RPM
• Kerb strikes
• Braking forces
• Road surface detail
• Traction loss

Console users can also connect via a 3.5 mm audio input, which converts game audio into vibration feedback.


Q: Is the ERS3 Haptic Seat comfortable for long races and flight sims?
A: The ERS3 Haptic is based on the endurance‑focused ERS3 Elite design, with SIMAERO Mesh fabric for breathability, cold‑moulded foam for support, and a dual recliner mechanism for structural strength and comfort during long sessions. This makes it ideal for extended racing sims without sacrificing ergonomic support.


Compatibility

Legend:

✅ Compatible out of the box (with seat brackets)
 ⚠   Requires Next Level Racing’s Universal Seat Brackets (Purchased Separately)
❌ Not compatible

Troubleshooting

Q: Haptic feedback isn’t working

• Check power and connections: ensure the seat is plugged into a power source and the USB/3.5 mm cable is firmly connected; use different ports to ensure it is not a USB/3.5mm issue on your device.
• Verify software setup: if using PC, open Next Level Racing HFS software and confirm the seat is detected, the correct game profile is connected. Also, test the motor functionality, to ensure these are functional.
• Test audio-to-haptic input (for console/3.5 mm use) with a known working device to confirm vibration signals are being sent.

  A: Ensure side brackets are installed in correct holes (multiple height options).

Q: Feedback is weak or uneven

• Open the HFS software and adjust motor intensity settings; sometimes default values may seem too low.

Q: Console-specific issues

• Use a 3.5 mm analog connection if the console isn’t recognized by USB.
• Adjust the volume/output settings in the console to ensure signals are strong enough for haptic translation.
• Verify the console supports analog audio output,

Instructions Guide & Video Links

• PDF Manual: Download ERS3 Haptic Instruction Manual

• Assembly Video:



Product Comparison
